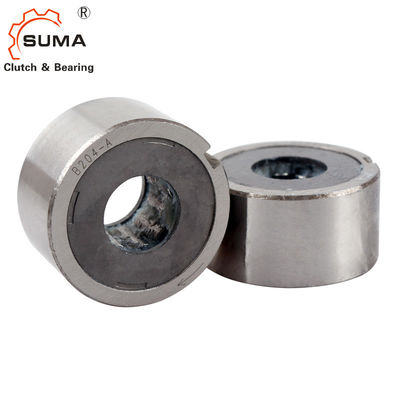

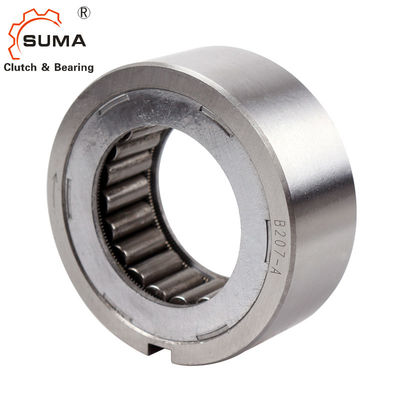

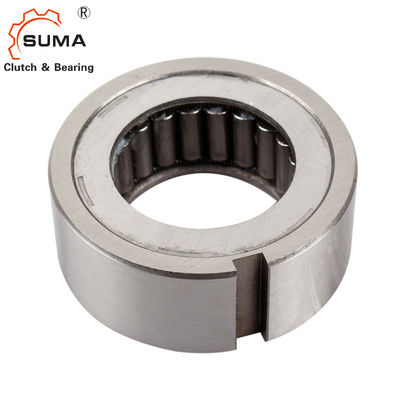

B205 B206 B207 One Way Clutch Bearing Backstop Cam Clutch
Installation and Usage
1. 200 Series Cam Clutch is shaft mounted, so the shaft on which the clutch is mounted must be hardened to Rc 56-60 and 1.5 mm case depth after grinding. Grind to 1.5S (16micro-inch) finish. The taper of this shaft should not exceed 0.01 mm per 50mm.
2. For installation of the clutch, mount the clutch with bearings at both sides or on one side in order to obtain concentricity between the shaft and the clutch outer race and to take up radial or thrust loads which may work on the outer race or the shaft. See the installation example.
3. The clutch should be mounted on the shaft by rotating it in the direction marked by the arrow
shown on the clutch plate. Do not apply shock to the clutch by hammering.
4. The clutches have the same outside diameters as the bearings shown in the table above. Bore tolerance of the housing in which the clutch is assembled should be within the range shown in the table below.
5. For indexing, oil lubrication is recommended.
6. Concentricity of the housing bore and shaft should be within 0.05 mm.
7. Key profile should be in accordance with JIS B1301-1959.
Dimensions and Capacities
| Model |
Torque Capacity (N.m) |
Drag Torque (N.m) |
Max .Overrunning (r/min) | Max.Idexing (cycle/min) | A(+0 to -0.6) | B | Keyway | With JIS Bearing No. |
Shaft Dia. C (+0 to -0.025) |
Weight (kg) |
|
| Shaft | Outer Race | ||||||||||
| B203 | 39.2 | 0.1 | 2400 | 500 | 150 | 25 | 40(-0.014-0.039) | 4X2.5 | 6203 | 16.51 | 0.23 |
| B204 | 58.8 | 0.1 | 2400 | 500 | 150 | 25 | 47(-0.014-0.039) | 5X3 | 6204 | 18.796 | 0.34 |
| B205 | 98 | 0.2 | 1800 | 400 | 150 | 25 | 52(0.017-0.042) | 5X3 | 6205 | 23.622 | 0.45 |
| B206 | 235 | 0.2 | 1800 | 350 | 150 | 28 | 62(-0.017-0.042) | 7X4 | 6206 | 32.766 | 0.68 |
| B207 | 372 | 0.2 | 1800 | 300 | 150 | 28 | 72(-0.017—0.042) | 7X4 | 6207 | 42.088 | 0.8 |
| B208 | 549 | 0.2 | 1800 | 200 | 150 | 32 | 80(-0.017-0.042) | 10X4.5 | 6208 | 46.761 | 0.91 |
| B209 | 549 | 0.2 | 1800 | 200 | 150 | 32 | 85(-0.020-0.045) | 10X4.5 | 6209 | 46.761 | 0.95 |
| B2010 | 784 | 0.29 | 1200 | 200 | 150 | 32 | 90(-0.020-0.045) | 10X4.5 | 6210 | 56.109 | 1 |
| B2011 | 784 | 0.29 | 1200 | 200 | 150 | 32 | 100(-0.020-0.050) | 10X4.5 | 6211 | 56.109 | 1.4 |
| B2012 | 1230 | 0.29 | 1200 | 180 | 150 | 42 | 110(-0.020-0.050) | 10X4.5 | 6212 | 70.029 | 1.8 |
| B2013 | 1230 | 0.29 | 1200 | 180 | 150 | 42 | 120(-0.020-0.050) | 10X4.5 | 6213 | 70.029 | 2.3 |
| B2014 | 1390 | 0.39 | 180 | 180 | 150 | 42 | 125(-0.024-0.060) | 12X4.5 | 6214 | 79.356 | 2.4 |
