| Place of Origin | CHINA |
| Brand Name | SUMA |
| Certification | ISO SGS |
| Model Number | AL12 ALP12 |

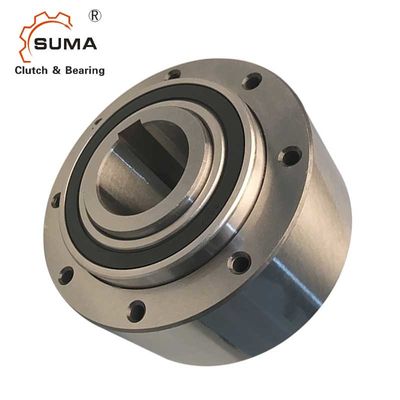

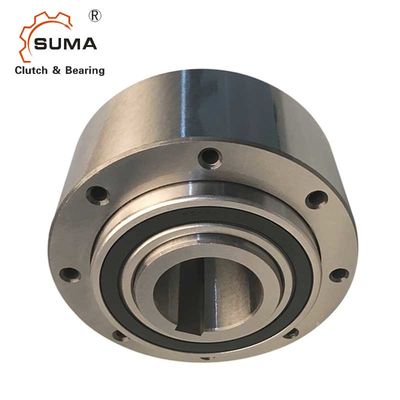

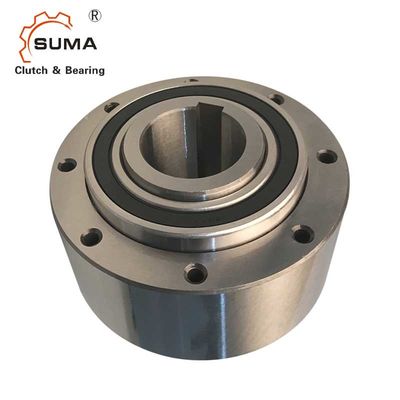

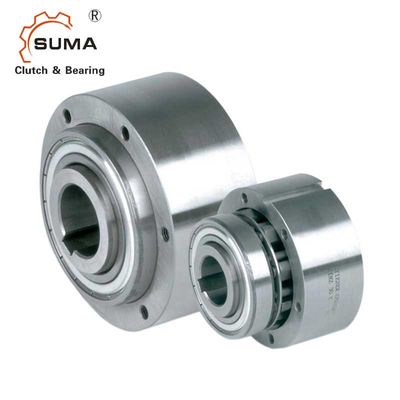

AL12 ALP12 Roller 0.5KG Freewheel Cam Clutch Bearing
Features
Types AL, ALP are roller type freewheels. These units are part of the modular system. They are bearing supported, using two 160.. series bearings, and require oil lubrication. These units may be used in designs providing oil lubrication and sealing as on the example overleaf.
The bearings must not be axially stressed. Typically, types AL, ALP are used with standard covers that are designed to transmit torque, and provide oil lubrication and sealing. Usually these covers are used in pairs according to combinations shown on the following pages.
The outer race of the AL model is plain to receive and center any component bored to H7 tolerance. Torque is transmitted by bolts through the cover plate in this case.
Types AL, ALP are identical except that type ALP has a keyway on the outside diameter to transmit the torque.
Two paper seals are delivered with each unit to be placed between the outer race and cover plates.
Dimensions and Capacities
| Type | Size | Overrunning speed | Number | Weight | Drag torque | |||||||
| AL ALP |
dH7 | nimax2) | namax3) | Dh7 | D2 | z | L 1 | L4) | B | t1 | TR | |
| [mm] | [min-1] | [min-1] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | [Ncm] | ||
| 12 | 4000 | 7200 | 62 | 20 | 3 | 42 | 20.3 | 27 | 2.4 | 0.5 | 3.4 | |
| 15 | 3600 | 6500 | 68 | 25 | 3 | 52 | 30.3 | 34.1 | 2.9 | 0.8 | 4.1 | |
| 20 | 2700 | 5600 | 75 | 30 | 4 | 57 | 34.3 | 39.1 | 3.5 | 1 | 8 | |
| 25 | 2100 | 4500 | 90 | 40 | 6 | 60 | 37.3 | 42.1 | 4.1 | 1.5 | 14 | |
| 30 | 1700 | 4100 | 100 | 45 | 6 | 68 | 44.3 | 49.1 | 4.1 | 2.2 | 23 | |
| 35 | 1550 | 3800 | 110 | 50 | 6 | 74 | 48.3 | 54.1 | 4.7 | 3 | 60 | |
| 40 | 1150 | 3400 | 125 | 55 | 6 | 86 | 56.3 | 62.1 | 4.9 | 4.6 | 72 | |
| 45 | 1000 | 3200 | 130 | 60 | 8 | 86 | 56.3 | 62.1 | 5.5 | 4.7 | 140 | |
| 50 | 800 | 2800 | 150 | 70 | 8 | 92 | 63.3 | 69.1 | 5.5 | 7.2 | 180 | |
| 55 | 750 | 2650 | 160 | 75 | 8 | 104 | 67 | 73.1 | 6.2 | 8.6 | 190 | |
| 60 | 650 | 2450 | 170 | 80 | 10 | 114 | 78 | 84 | 6.8 | 10.5 | 240 | |
| 70 | 550 | 2150 | 190 | 90 | 10 | 134 | 95 | 103 | 7.4 | 13.5 | 320 | |
| 80 | 500 | 1900 | 210 | 105 | 10 | 144 | 100 | 108 | 8.5 | 18.2 | 330 | |
| 90 | 450 | 1700 | 230 | 120 | 10 | 158 | 115 | 125 | 8.7 | 28.5 | 650 | |
| 100 | 350 | 1450 | 270 | 140 | 10 | 182 | 120 | 131 | 9.9 | 42.5 | 830 | |
| 120 | 250 | 1250 | 310 | 160 | 12 | 202 | 140 | 152 | 11.1 | 65 | 1080 | |
| 150 | 200 | 980 | 400 | 200 | 12 | 246 | 180 | 196 | 12.3 | 138 | 1240 | |
| 200 | 150 | 750 | 520 | 260 | 18 | 326 | 240 | 265 | 15 | 315 | 3800 | |
| 250 | 120 | 620 | 610 | 320 | 20 | 396 | 300 | 330 | 15 | 512 | 6100 | |
| ALM | 25 | 2100 | 2800 | 90 | 40 | 6 | 60 | 37.3 | 42.1 | 4.1 | 1.7 | 22 |
| 30 | 1700 | 2500 | 100 | 45 | 6 | 68 | 44.3 | 49.1 | 4.1 | 2.5 | 37 | |
| 35 | 1550 | 2400 | 110 | 50 | 6 | 74 | 48.3 | 54.1 | 4.7 | 3.2 | 66 | |
NOTES
1) T max = 2 × T KN
» Refer to Selection page 10 to 13
2) Inner race overruns, values without lip seals
3) Outer race overruns
Keyway to DIN 6885.1
4) The dimension L includes up to size 50 the each
0.25 mm thick paper seals to be located on both faces
» Refer to mounting and maintenance instructions
page 16 to 19
