LD04 Special Grease One Way Sprag Cam Clutch Bearing

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: LD04
Minimum Order Quantity: 1
Price: USD50-USD100 PER PIECE
Packaging Details: Carton Box / Wooden Box
Delivery Time: 5-7 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability: 1000PCS Per Month
Product Name: Cam Clutch Bearing LD04 Bearing Supported: YES
Material: Bearing Steel GCr15 Size: 10*47*24mm
Warranty: 1 Year Package: Carton Box / Wooden Box
Weight: 0.25Kg OEM: Accept
High Light:

Sprag Cam Clutch Bearing

,

LD04 Cam Clutch Bearing

,

LD04 Freewheel Clutch

LD04 Special Grease One Way Sprag Cam Clutch Bearing

Dimensions and Capacities

LD04 Special Grease One Way Sprag Cam Clutch Bearing 0



Model

Torque
Capacity
(Nm)

Drag
Torque
(Nm)
Max.
Overrunning
(r/min)


Max.
indexing
(cycle/

min)


Max.Radial
Load When
Overrunning
(kgf)

Bore Size



A



B



C



D



E



Outer Race
Keyway


Weight
( kg )
Inner Race Dia.
(H7)

Key

way

LD04 5.88 0.2 300 100 20 10 4x1.5 19.5 23.9 24 47 -0.014
-0.039
40 5x3 0.25
LD05 9.8 0.29 300 100 30 14 5x2 19.5 23.9 24 52 -0.017
-0.042
45 5x3 0.3
LD06 19.6 0.29 200 100 50 20 5x2 19.5 23.9 24 62 -0.017
-0.042
52 7x4 0.4
LD07 29.4 0.39 200 100 70 25 7x3 19.5 23.9 24 72 -0.017
-0.042
62 7x4 0.55
LD08 49 0.49 200 100 80 30 7x3 19.5 23.9 24 82 -0.017
-0.042
70 10x4.5 0.65

Mounting and Coupling

LD04 Special Grease One Way Sprag Cam Clutch Bearing 1

LD04 Special Grease One Way Sprag Cam Clutch Bearing 2

Installation and Usage
1. LD Series Cam Clutch is prelubricated with special grease and are ready for use.
No additional lubricant is required.
2. When installing the clutch on the shaft, press the clutch inner race slightly with a soft hammer to prevent the clutch
Outer race from slipping away from the inner race.
3. Be sure to attach the plate. This prevents the outer race from slipping away from the inner race. See recommended
Dimensions of the plate listed on the right.
4. For lubrication, coat the plate and thrust metal with grease.
5. Never apply thrust loads to the clutch. Other devices should be provided to take up thrust loads applied to the clutch.
6. Key should be in accordance with JIS B1301-1959.
7. The bores of the pulley, sprocket, etc., should have a tolerance of H6 or H7.

Pictures

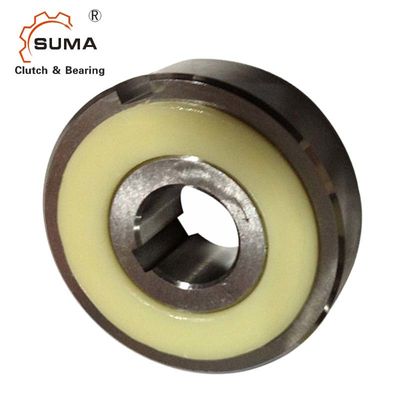

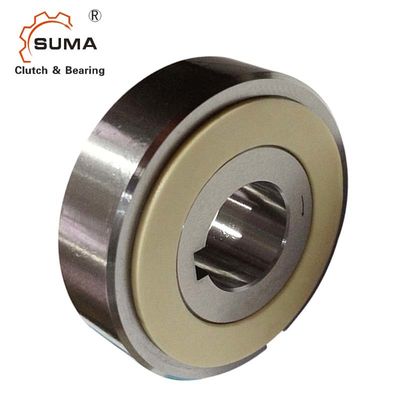

LD04 Special Grease One Way Sprag Cam Clutch Bearing 3

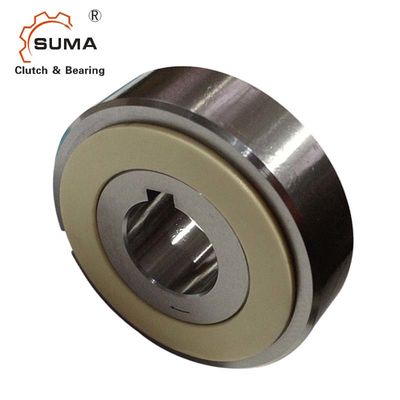

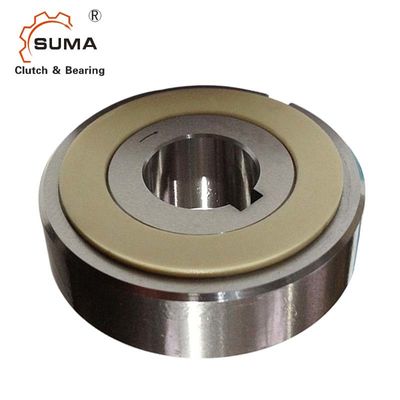

LD04 Special Grease One Way Sprag Cam Clutch Bearing 4
