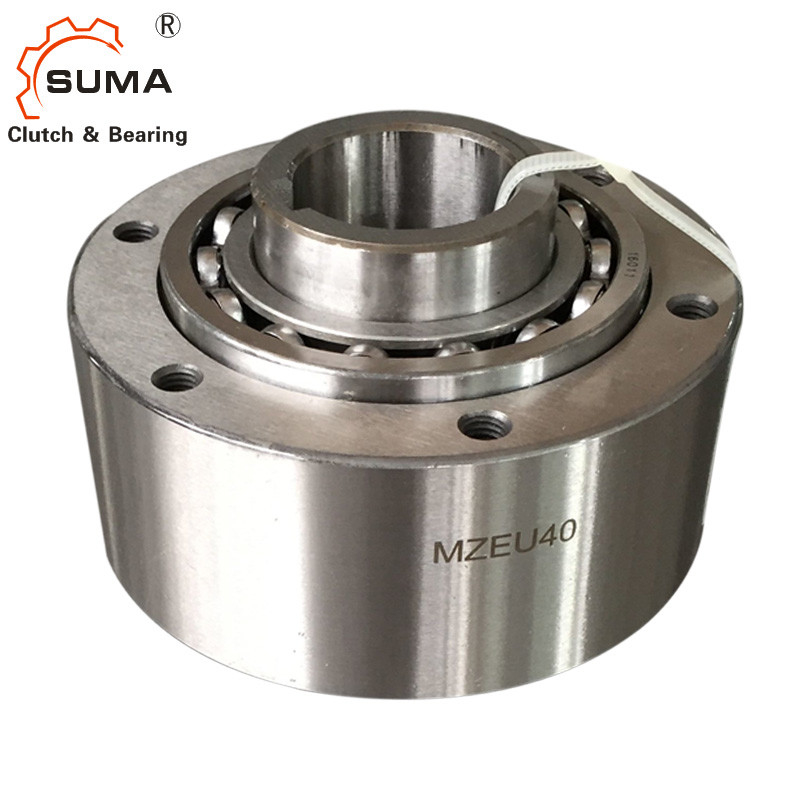

MZEU12(K) Steel GCr15 One Way Sprag 60 Nm Cam Backstop Clutch

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: MZEU12
Minimum Order Quantity: 1
Price: USD60-USD80 PER PIECE
Packaging Details: Carton Box / Wooden Box
Delivery Time: 7-15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,Paypal
Product Name: Cam Clutch Bearing MZEU12 Bearing Supported: YES
Material: Bearing Steel GCr15 Size: 12*62*42mm
Torque Capacity: 60Nm Warranty: 1 Year
Package: Carton Box / Wooden Box OEM: Accept
High Light:

MZEU Backstop Clutch

,

Sprag Backstop Clutch

,

MZEU Cam Clutch Bearing

MZEU12 Steel GCr15 One Way Sprag 60 Nm Cam Backstop Clutch



1. Model No. MZEU12 to MZEU80 are pre-greased and require no lubrication.

The operational temperature range is -40C to +40C.

Model No.MZEU90 to MZEU150 require oil lubrication.
2. Model No. MZEU12 to MZEU80 sprockets and other torque transmitting factors can be used with the standard flange.
3. We recommend a Shaft tolerance of h7, and ISO R773 (DIN 6885.1) keyway is standard.
4. We recommend a tolerance of E H7 for the sprocket and other parts.
5. Clean the surface of both ends of the outer race and the contact surfaces of the flange, sprocket and the other parts.

Dimensions and Capacities

MZEU12(K) Steel GCr15 One Way Sprag 60 Nm Cam Backstop Clutch 0


Model

Torque
Capacity



Max. Overrunning

Drag
Torque

Bore Size

Keyway

A

B

C

D

E

F

G

H-J

K

L

Weight
N·m r/min r/min N·m H7 Inner Race   h7   PCD           C (kg)
MZEU12(K) 60 2000 1,000 0.20 12 4X1.8 42 62 20 51 42 20 27 3 - 05.5 - 0.8 0.5
MZEU15(K) 100 1800 900 0.20 15 5X2.3 52 68 28 56 47 25 32 3 - M5 8 0.8 0.8
MZEU20(K) 245 1600 700 0.29 20 6X2.8 57 75 34 64 55 30 39 4 - M5 8 0.8 1.2
MZEU25(K) 425 1600 600 0.33 25 8X3.3 60 90 35 78 68 40 40 4 - M6 10 0.8 1.8
MZEU30(K) 735 1500 500 0.39 30 8X3.3 68 100 43 87 75 45 48 6 - M6 10 1.0 2.6
MZEU35(K) 1015 1400 300 0.49 35 10X3.3 74 110 45 96 80 50 51 6 - M6 12 1.0 3.2
MZEU40(K) 1350 1400 300 0.59 40 12X3.3 86 125 53 108 90 55 59 6 - M8 14 1.3 4.8
MZEU45(K) 1620 1400 300 0.69 45 14X3.8 86 130 53 112 95 60 59 8 - M8 14 1.3 6.2
MZEU50(K) 2070 1300 250 0.79 50 14X3.8 94 150 64 132 110 70 72 8 - M8 14 1.3 8.2
MZEU55 (K) 2400 1300 250 0.88 55 16X4.3 104 160 66 138 115 75 72 8 - M10 16 1.5 9.5
MZEU60 (K) 2950 1200 250 0.98 60 18X4.4 114 170 78 150 125 80 89 10 - M10 16 1.5 12.3
MZEU70 (K) 4210 1100 250 1.27 70 20X4.9 134 190 95 165 140 90 108 10 - M10 16 1.8 18.1
MZEU80 (K) 5170 800 200 1.38 80 22X5.4 144 210 100 185 160 105 108 10 - M10 16 1.8 23.1
MZEU90 (K) 12000 450 150 4.70 90 25X5.4 158 230 115 206 180 120 125 10 - M12 20 2.0 28.1
MZEU100(K) 17600 400 130 5.39 100 28X6.4 182 270 120 240 210 140 131 10 - M16 24 2.0 46.3
MZEU130(K) 24500 320 110 6.76 130 32X7.4 212 310 152 278 240 160 168 12 - M16 24 2.5 70.2
MZEU150(K) 33800 240 80 8.13 150 36X8.4 246 400 180 360 310 200 194 12 - M20 32 2.5 146.3

Mounting and Coupling

MZEU12(K) Steel GCr15 One Way Sprag 60 Nm Cam Backstop Clutch 1


6. For Model No’s. MZEU90 to MZEU150, apply seal adhesive to the surface of the outer race at both ends.
7. Check the direction of rotation.
8. When installing standard flanges, sprockets and other equipment to the clutch fit them around the bearings and screw the bolts into both ends of the outer race.
9. By installing both the flange and sprocket on the opposite side, the direction of rotation can be changed.
10. When mounting the clutch onto the shaft, apply pressure to inner race but never to the outer race.
11. For high speed Indexing applications (More than 50 c/m) a strong spring type isrecommended.
12. Model No. Description
MZEU K
No Mark : No keyway on the outer race.
K : Keyway on the outer race.

Pictures

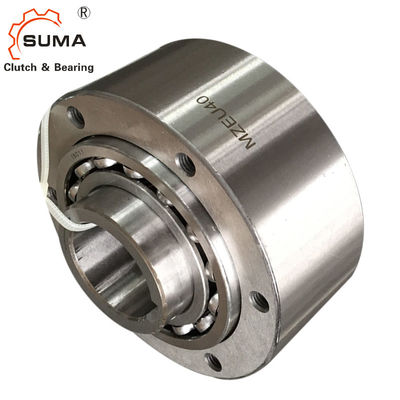

MZEU12(K) Steel GCr15 One Way Sprag 60 Nm Cam Backstop Clutch 2

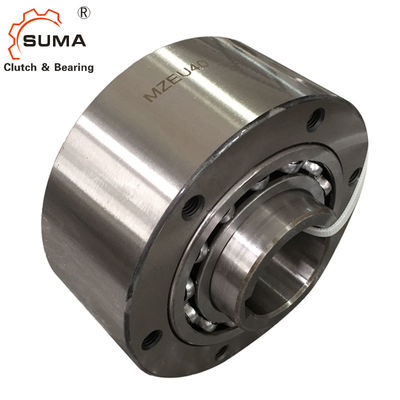

MZEU12(K) Steel GCr15 One Way Sprag 60 Nm Cam Backstop Clutch 3

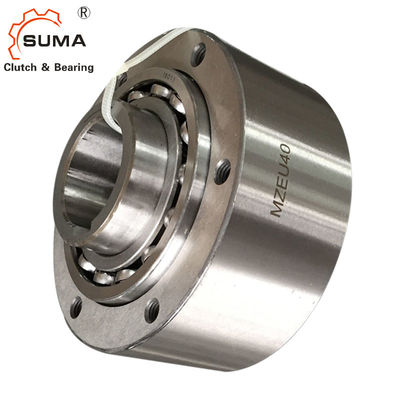

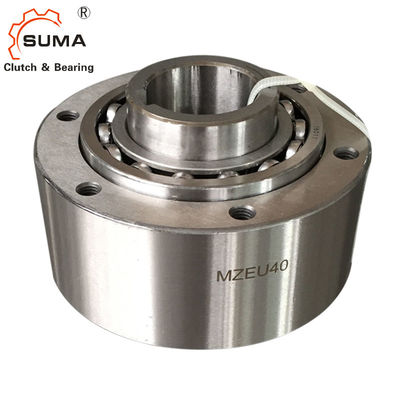

MZEU12(K) Steel GCr15 One Way Sprag 60 Nm Cam Backstop Clutch 4MZEU12(K) Steel GCr15 One Way Sprag 60 Nm Cam Backstop Clutch 5MZEU12(K) Steel GCr15 One Way Sprag 60 Nm Cam Backstop Clutch 6
