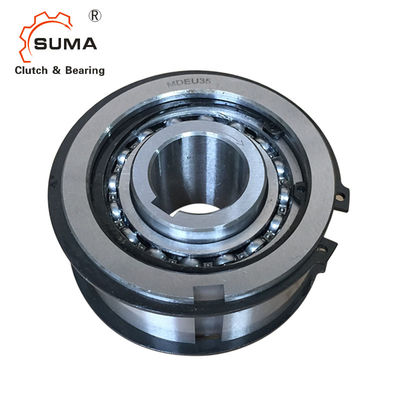

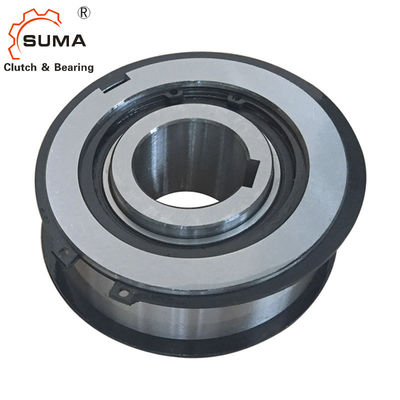

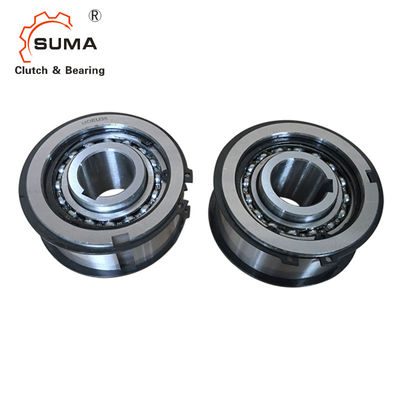

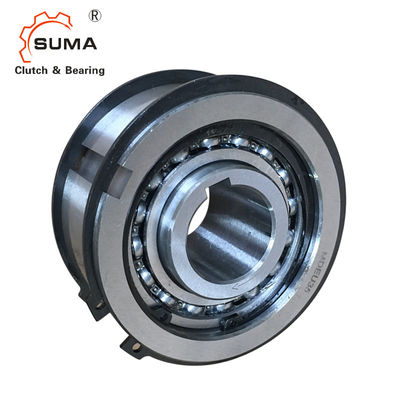

MDEU GCr15 Single Way H7 Tolerance Cam Sprag Bearing

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: MDEU15
Minimum Order Quantity: 1
Price: USD80-USD120 PER PIECE
Packaging Details: Carton Box / Wooden Box
Delivery Time: 7-15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,Paypal
Product Name: Cam Clutch Bearing MDEU15 Bearing Supported: YES
Material: Bearing Steel GCr15 Size: 15*55*39mm
Torque Capacity: 70Nm Warranty: 1 Year
Package: Carton Box / Wooden Box OEM: Accept
High Light:

MDEU Sprag Bearing

,

Single Way Sprag Bearing

,

H7 Tolerance One Way Sprag Clutch

MDEU GCr15 Single Way H7 Tolerance Cam Sprag Bearing

Installation and Usage
1. The bores of the pulley, sprocket, etc., should have a tolerance of H6 or H7.
2. Built in roller type bearing, due to the structure of cam and roller.
3. When installing the Cam Clutch on the shaft, press the clutch inner race slightly.
4. Never apply thrust loads to the Cam Clutch. Other devices
Should be provided to take up thrust loads applied to the Cam Clutch.
5. In case of large radial loads applied to the Cam Clutch like installing with pulley, another bearing should be prepared so that the point of the loads can be hanged on the bearing.
6. Key should be in accordance with ISO R773 (DIN 6885.1). Note that the keyway dimensions of outer race is not in accordance with the keyway dimensions which mentioned in ISO R773 (DIN 6885.1).

Dimensions and Capacities

MDEU GCr15 Single Way H7 Tolerance Cam Sprag Bearing 0



Model

Torque
Capacity
(N@m)
Max.
Overrunning
(r/min)
Inner Race
Max.
Indexing
(cycle/min)
Max.Radial
Load When
Overrunning
(N)

Bore
Size
(H7)

Inner race
Keyway


A


B
(h7)


C


D


E


F


G


H


I

Outer race
Keyway

Weight
( kg )
MDEU15 70 600 100 610 15 5x2.3 39 55 37 25 42 1 30 3.5 0.8 5x3 0.52
MDEU20 150 500 100 910 20 6x2.8 42 68 40 32 52 1 33 3.5 0.8 6x3.5 0.88
MDEU25 230 450 100 1060 25 8x3.3 42 80 40 40 65 1 33 3.5 0.8 8x4 1.1
MDEU30 390 400 100 1400 30 8x3.3 50 90 48 45 72 1 36 6 1 8x4 1.7
MDEU35 460 350 100 1500 35 10x3.3 50 100 48 50 80 1 36 6 1 10x5 2.1
MDEU40 530 350 100 1580 40 12x3.3 50 110 48 55 78 1 36 6 1 12x5 2.7
MDEU45 690 300 100 1770 45 14x3.8 50 120 48 65 88 1 36 6 1 14x5.5 3.2
MDEU50 870 300 100 1880 50 14x3.8 50 130 48 70 95 1 36 6 1 14x5.5 3.8
MDEU55 1100 250 100 2850 55 16x4.3 60 140 58 80 105 1 46 6 1.5 16x6 5.3
MDEU60 1500 250 100 3060 60 18x4.4 60 150 58 90 115 1 46 6 1.5 18x7 6.1
MDEU70 1900 200 100 3470 70 20x4.9 60 170 58 100 125 1 46 6 1.5 20x7.5 7.9
MDEU80 2300 200 100 3600 80 22x5.4 60 190 58 110 140 1 46 6 1.5 22x9 9.7
