MZ30G 76MM Thickness Backstopping Cam Bearing Clutch

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: MZ30G
Minimum Order Quantity: 1
Price: USD95-USD139 PER PIECE
Packaging Details: Carton Box / Wooden Box
Delivery Time: 7-15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability: 1000PCS Per Month
Product Name: Cam Clutch Bearing MZ30G Bearing Supported: YES
Material: Bearing Steel GCr15 Size: 30*100*70mm
Torque Capacity: 735Nm Warranty: 1 Year
Package: Carton Box / Wooden Box Weight: 3.2Kg
High Light:

MZ30G Bearing Clutch

,

Backstopping Bearing Clutch

,

MZ30G Cam Clutch

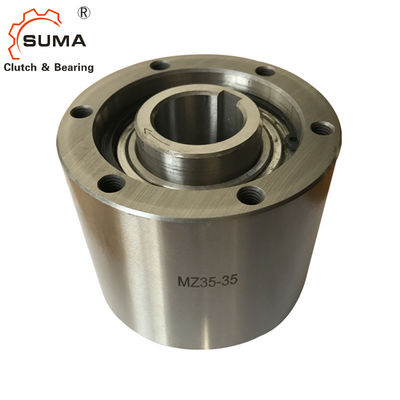

MZ30G 76MM Thickness Backstopping Cam Bearing Clutch

Features

  Types MZ-G suitable for backstop, or overrunning clutch applications. Outer race circumference ground finish.

Technical Datas

Item MZ30G
Material GCr15
Bore dia. 30 mm
Outer dia. 100 mm
Width 76 mm
Torque capacity 735 N.m
Weight 3.2 kg
Package Carton box, wooden box or as your requirements

Dimensions and Capacities

MZ-G .jpg

Model





Torque Max.Overrunning Max. Drag
Capacity

Inner

Race

Outer

Race

Indexing Torque
(N·m) (r/min) (cycle/min) (N·m)
MZ15G 186 2,200 900 150 0.2
MZ17G 215 2,000 800 150 0.2
MZ20G 323 1,900 700 150 0.29
MZ30G-22 735 1800 500 150 0.39
MZ30G-25
MZ30G
MZ35G 1,080 1,700 300 150 0.49
MZ45G-40 1620 1700 300 150 0.69
MZ45G
MZ60G-50 2110 1600 250 150 0.98
MZ60G-55
MZ60G
MZ70G-65 3040 1300 250 150 1.27
MZ70G
Bore size
A

C

B (h7)

F

E

K

PCD
D

S

H-M No.of
Tapped Holes
×Size ×Pitch

Weight
(kg)
Dia.
(H7)
Keyway Chamfer
J
15 5×2.3 0.8 55 53 68 25 47 1.3 58 10 6-M5×0.8 1.3
17 5×2.3 0.8 63 61 75 28 52 1.3 64 10 6-M5×0.8 1.7
20 5×2.3 0.8 64 62 80 30 55 1.3 68 12 6-M6×1.0 1.9
22 8×3.3 1.0
70

68

100

45

75

1.3

88

16

6-M8×1.25

3.2
25 8×3.3 1.0
30 10×3.3 1.0
35 10×3.3 1.0 78 76 110 50 80 1.3 95 16 6-M8×1.25 4.4
40 12×3.3 1.3
87

85

125

60

95

1.3

110

16

8-M8×1.25

6.2
45 12×3.3 1.3
50 14×3.8 1.5
90

88

155

80

125

1.3

140

16

8-M8×1.25

9.5
55 16×4.3 1.5
60 18×4.4 1.5
65 18×4.4 1.8
105

103

175

95

145

1.3

162

16

8-M8×1.25

13.1
70 20×4.9 1.8

Notes:

1. T max = 2 × T KN

2. Inner race overruns

3. Outer race overruns
Keyway to DIN 6885.1

Mounting and Coupling


Pictures

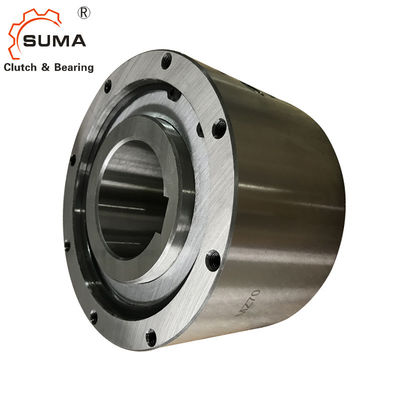

MZ30G 76MM Thickness Backstopping Cam Bearing Clutch 2
