FBF72 Overrunning Freewheel Backstop Sprag Cam Clutch Bearing

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: FBF72
Minimum Order Quantity: 1
Price: USD100-USD128 PER PIECE
Packaging Details: Carton Box / Wooden Box
Delivery Time: 7-15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability: 1000PCS Per Month
Product Name: Cam Clutch Bearing FBF72 Bearing Supported: YES
Material: Bearing Steel GCr15 Bore: 35-42mm
Torque Capacity: 1250Nm Warranty: 1 Year
Package: Carton Box / Wooden Box OEM: Accept
Outer Dia.: 125mm
High Light:

Backstop Sprag Cam Clutch Bearing

,

FBF72 Cam Clutch Bearing

,

FBF72 Overrunning Clutch Bearing

FBF72 Freewheel Backstop Sprag Cam Clutch Bearing

Features

Complete Freewheels FBF with mounting flange are sealed sprag freewheels with ball bearings. They are supplied oil-filled and ready for installation.

The freewheels FBF are used as:

➧ Backstops

➧ Overrunning Clutches

➧ Indexing Freewheels

In addition to the standard type, four other types are available for extended service life and indexing accuracy.

Nominal torques up to 160 000 Nm. Bores up to 300 mm. Many standard bores are available.



Dimensions and Capacities

FBF72 Overrunning Freewheel Backstop Sprag Cam Clutch Bearing 0



Freewheel Size Type Nominal torque MN Max. Overruns
Speed min-1
Type Nominal torque MN Max. Overruns
Speed min-1
Type Nominal torque MN Sprag lift-off speed
min-1
Max. Speed
Nm Inner
ring
Outer
ring
Nm Inner
ring
Outer
ring
Nm inner
ring
Inner
ring
Outer ring
FBF 24 CF 45 4 800 5 500 CFT 45 4 800 5 500
FBF 29 CF 80 3 500 4 000 CFT 80 3 500 4 000
FBF 37 SF 200 2 500 2 600 SFT 200 2 500 2 600
FBF 44 SF 320 1 900 2 200 SFT 320 1 900 2 200 DX 130 860 1 900 344
FBF 57 SF 630 1 400 1 750 SFT 630 1 400 1 750 DX 460 750 1 400 300
FBF 72 SF 1 250 1 120 1 600 SFT 1 250 1 120 1 600 DX 720 700 1 150 280
FBF 82 SF 1 800 1 025 1 450 SFT 1 800 1 025 1 450 DX 1 000 670 1 050 268
FBF 107 SF 2 500 880 1 250 SFT 2 500 880 1 250 DX 1 500 610 900 244
FBF 127 SF 5 000 800 1 150 SFT 5 000 800 1 150 SX 3 400 380 800 152
FBF 140 SF 10 000 750 1 100 SFT 10 000 750 1 100 SX 7 500 320 750 128
FBF 200 SF 20 000 630 900 SFT 20 000 630 900 SX 23 000 240 630 96
FBF 270 SF 40 000 510 750 SFT 40 000 510 750 UX 40 000 210 510 84
FBF 340 SF 80 000 460 630 SFT 80 000 460 630
FBF 440 SF 160 000 400 550 SFT 160 000 400 550



Freewheel Size mm mm Standard Bore max. mm A
mm
D
mm
F
mm
G** L
mm
N
mm
T
mm
Z** Weight kg
mm mm mm
FBF 24 12 14*       14* 85 62 1,0 M 5 50 10 72 3 1,1
FBF 29 15 17*       17* 92 68 1,0 M 5 52 11 78 3 1,3
FBF 37 14 16 18 20 22* 22* 98 75 0,5 M 5 48 11 85 8 1,5
FBF 44 20 22 25*     25* 118 90 0,5 M 6 50 12 104 8 2,3
FBF 57 25 28 30 32*   32* 128 100 0,5 M 6 65 12 114 12 3,2
FBF 72 35 38 40 42*   42* 160 125 1,0 M 8 74 14 142 12 5,8
FBF 82 35 40 45 50*   50* 180 135 2,0 M 10 75 16 155 8 7,0
FBF107 50 55 60 65*   65* 214 170 2,5 M 10 90 18 192 10 12,6
FBF127 50 60 70 75*   75* 250 200 3,0 M 12 112 20 225 12 21,4
FBF140 65 75 80 90   95* 315 250 5,0 M 16 150 22 280 12 46,0
FBF200 110 120       120 370 300 5,0 M 16 160 25 335 16 68,0
FBF270 140         150 490 400 6,0 M 20 212 32 450 16 163,0
FBF340 180         240 615 500 7,5 M 24 265 40 560 18 300,0
FBF440 220         300 775 630 7,5 M 30 315 50 710 18 564,0

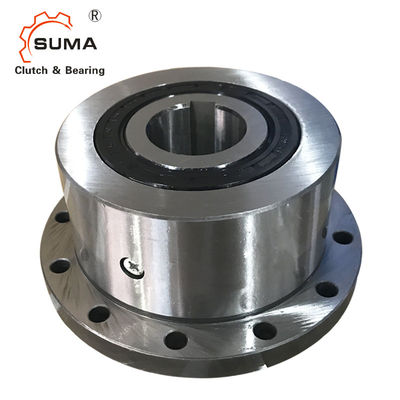

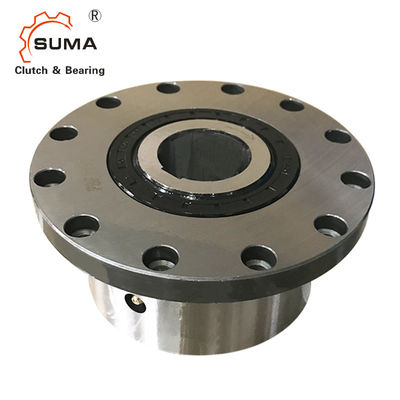

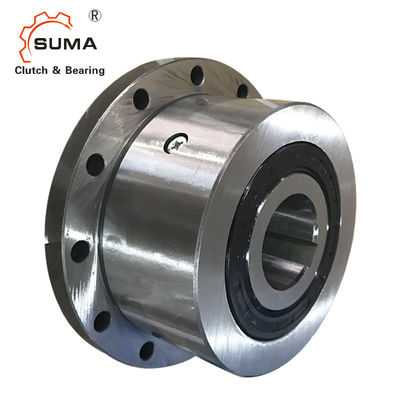

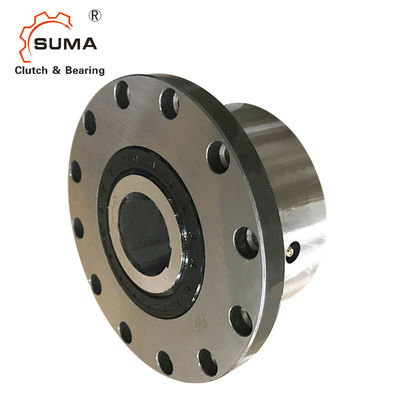

Pictures

FBF72 Overrunning Freewheel Backstop Sprag Cam Clutch Bearing 1
