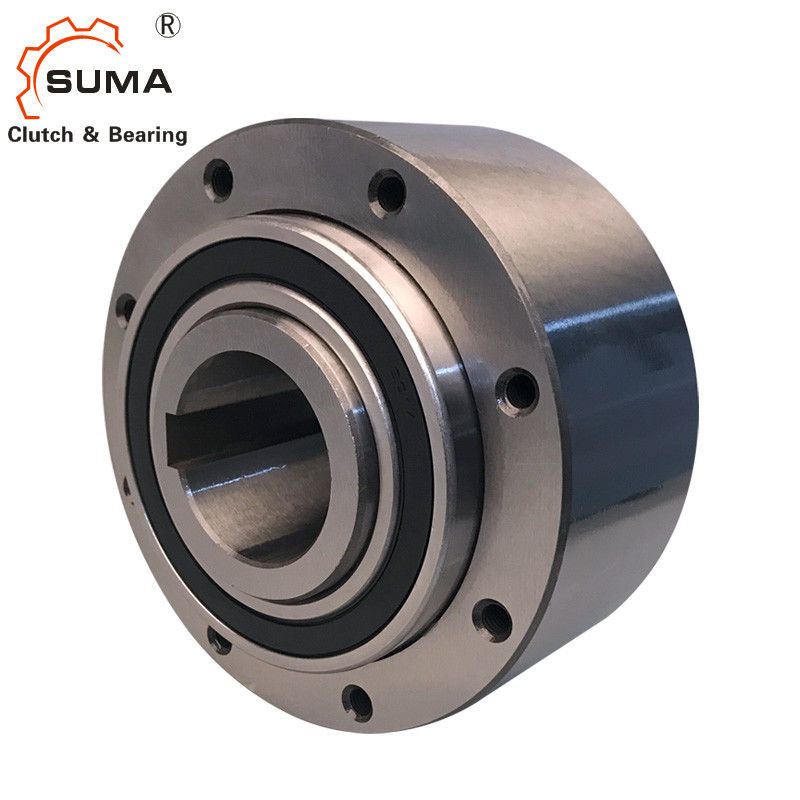

RIZ30 9000RPM Freewheels 1 Directional Roller Bearing Clutch

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: RIZ30 RINZ30
Minimum Order Quantity: 1
Price: USD98-USD130 PER PIECE
Packaging Details: Carton Box
Delivery Time: 7-10 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability: 1000PCS Per Month
Product Name: Cam Clutch Bearing RIZ30 RINZ30 Material: GCr15 Bearing Steel
Unit Weight: 2.3Kg Size: 30*100*68mm
Warranty: 1 Year Overrunning Speed: 9000RPM
Torque Capacity: 375Nm OEM: Accept
High Light:

9000RPM Roller Bearing Clutch

,

RIZ30 Roller Bearing Clutch

,

1 Directional Freewheel Clutch

           RIZ30 9000RPM Freewheels 1 Directional Roller Bearing Clutch

Feature

  Types RIZ, RINZ are centrifugal lift off sprag type freewheels with the inner race rotating. Suitable for backstop, or overrunning clutch applications. Only the inner race is designed for freewheeling.
  These units are part of the Stieber modular system. They are bearing supported using series 60.. bearings, grease lubricated and fitted with ZZ seals. Units are delivered as standard lubricated with grease and ready to install in either a horizontal or vertical position. Types RIZ, RINZ are designed to be used with G series covers. The following pages give further inportant information for use of this type unit.
  If the unit is to be installed inside a housing where oil lubrication is available, please specify type RIW, RIWN. The F series covers from type GFR, GFRN are then used without shaft seals.

Dimensions and Capacities

RIZ30 9000RPM Freewheels 1 Directional Roller Bearing Clutch 0

Type Size





Speeds





Number





Weight
RIZ
RINZ
dH7 TKN1) nmax2) nimin3) nimax4) Dh7 z L 1 L t
[mm] [Nm] [min-1 ] [min-1 ] [min-1 ] [mm]   [mm] [mm] [mm] [kg]
30 375 290 700 9000 100 6 68 43 10 2.3
35 550 280 670 8500 110 6 74 45 12 3.2
40 800 260 630 7500 125 6 86 53 14 4.8
45 912 255 610 6700 130 8 86 53 14 5
50 1400 235 560 6000 150 8 94 64 14 7.5
60 2350 210 510 5300 170 10 114 78 16 12.7
70 3050 195 470 4000 190 10 134 95 16 14.5
80 5800 155 375 4000 210 10 144 100 16 19
90 8700 145 350 3000 230 10 158 115 20 29.5
100 16000 140 340 2400 270 10 182 120 24 42.5
130 23000 130 320 2400 310 12 212 152 24 70



NOTES
1) T max = 2 × T KN » Refer to Selection page 10 to 13
2) This maximum allowable torque transmission speed n max must not be exceeded when transmitting torque
3) This minimum allowable overrunning speed n imin should not be reduced under continuous operation. Possible reduction of this minimum speed on request
4) Inner race overruns Keyway to DIN 6885.1 » Refer to mounting and maintenance instructions

Mounting Example
RIZ30 9000RPM Freewheels 1 Directional Roller Bearing Clutch 1
Pictures

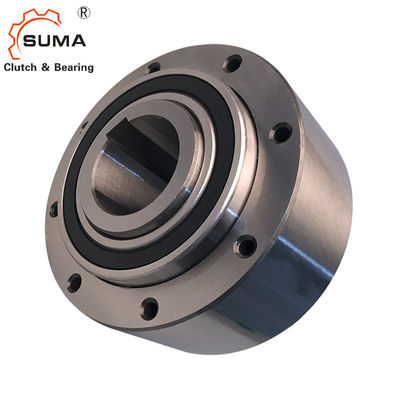

 RIZ30 9000RPM Freewheels 1 Directional Roller Bearing Clutch 2

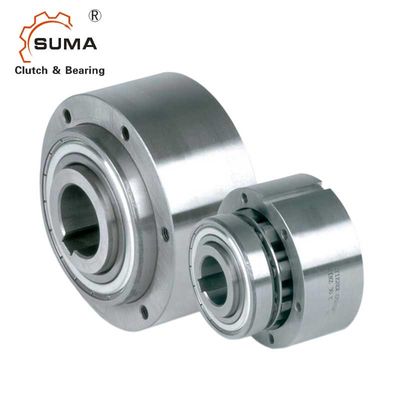

RIZ30 9000RPM Freewheels 1 Directional Roller Bearing Clutch 3

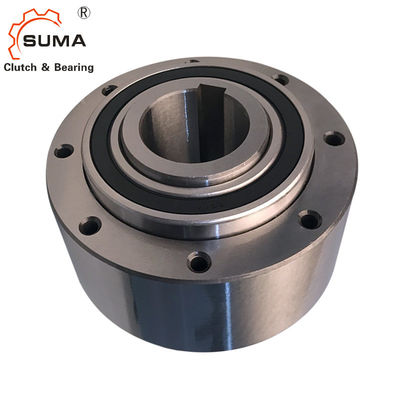

RIZ30 9000RPM Freewheels 1 Directional Roller Bearing Clutch 4
