RSBI60 Centrifugal 6100 RPM Backstop Sprag Clutch Cam

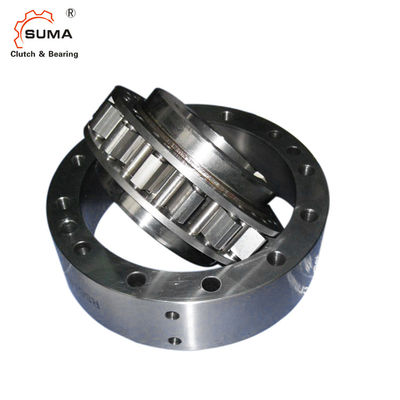

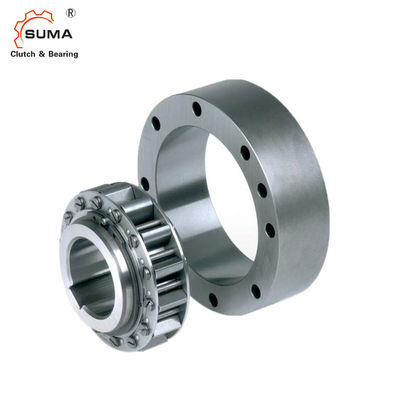

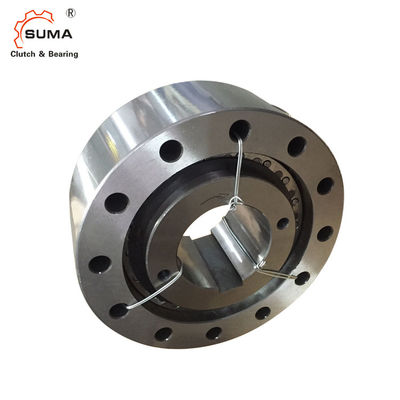

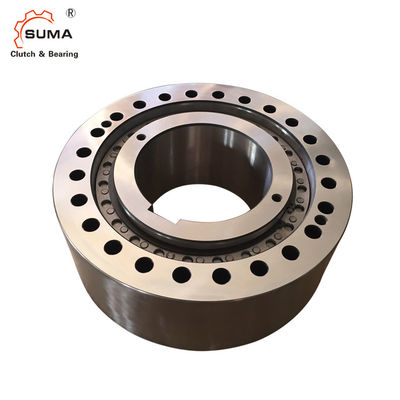

Large Image : RSBI60 Centrifugal 6100 RPM Backstop Sprag Clutch Cam

Product Details:

Place of Origin:	CHINA
Brand Name:	SUMA
Certification:	ISO SGS
Model Number:	RSBI60

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD260-USD350 PER PIECE
Packaging Details:	Wooden Case
Delivery Time:	7-10 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability:	1000PCS Per Month

Contact Now

RSBI60 Centrifugal 6100 RPM Backstop Sprag Clutch Cam

Description

Product Name:	Cam Clutch Bearing RSBI60	Material:	GCr15 Bearing Steel
Size:	6017560mm	Torque Capacity:	1375Nm
Rotation Speed:	6100RPM	Warranty:	1 Year
Unit Weight:	6.5Kg	OEM:	Accept
Highlight:	6100 RPM Clutch Cam , Sprag Clutch Cam , Sprag Cam Clutch Bearing

RSBI60 Centrifugal 6100 RPM Backstop Sprag Clutch Cam

Dimension and Capacity

RSBI60 Centrifugal 6100 RPM Backstop Sprag Clutch Cam 0

Model	Bore mm	Torque Nm	Speed 1)r/min	Speed 2)r/min	Speed 3)r/min	Dimensions (mm)															Weight (kg)
RSBI	dH7					Dh6	D1h6	D2h7	D3	D4	d5	z	L	I	I1	I4	fx45	dmin	I2	I3	RSBI	F8
	60	1375	200	490	6100	175	85	125	155	M10	-	8	60	50	36	5	2	110	12	35	6.5	1.8
	70	2000	210	480	4500	190	95	140	165	M10	-	12	60	50	36	5	2	120	12	35	8.6	1.9
	80	3125	190	450	4000	210	115	160	185	M10	-	12	70	60	36	5	2	140	12	35	12.5	2.6
	90	4125	180	420	3000	230	135	180	206	M12	-	12	80	70	36	5	2.5	160	12	35	17.4	3
	100	7250	200	455	2700	270	140	210	240	M16	-	12	90	80	52.6	5	2.5	180	15	37	28	5
	130	10625	180	415	2400	310	170	240	278	M16	-	12	90	80	52.6	5	3	210	15	37	35	6
	150	20325	160	365	1300	400	240	310	360	M16	-	12	90	80	52.6	5	3.5	280	18	44	61	15
	180	20375	160	365	3450	400	-	310	360	M16	270	12	105	80	52.6	5	4	280	18	62	73	16
	190	25000	145	340	4200	420	-	330	380	M16	290	16	105	80	58.6	5	4	300	18	67	75	18
	220	33750	140	325	3600	460	-	360	410	M16	320	18	105	80	58.6	5	4	330	18	67	88	21
	240	38250	135	310	3100	490	-	390	440	M16	350	18	105	80	58.6	5	4	360	20	67	96	25
