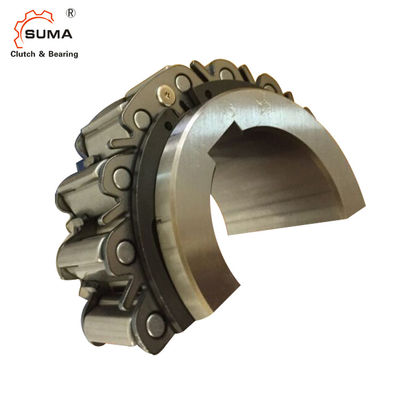

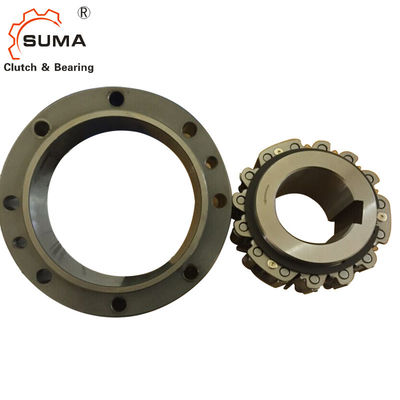

BR20 One Way 35MM H6 H7 1.3KG Overrunning Cam Clutch Bearing

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: BR20
Minimum Order Quantity: 1
Price: USD30-USD50 PER PIECE
Packaging Details: Carton Box / Wooden Box
Delivery Time: 7-15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability: 1000PCS Per Month
Product Name: Cam Clutch Bearing BR20 Bearing Supported: YES
Material: Bearing Steel GCr15 Size: 20*66*35mm
Warranty: 1 Year Package: Carton Box / Wooden Box
Weight: 1.3Kg OEM: Accept
High Light:

35MM Cam Clutch Bearing

,

H7 Cam Clutch Bearing

,

Overrunning Cam Clutch

BR20 One way 35MM H6 H7 1.3KG Overrunning Cam Clutch Bearing



1. We recommend using shaft tolerances of h6 or h7 for Cam Clutch installation.
2. Use a ISO R773 (DIN 6885.1) parallel key make sure that the key does not move in the keyway. A loose key will damage the Cam Clutch.
3. When installing the Cam Clutch over a shaft, please follow the procedure outlined below. Never strike the clutch with a steel hammer or apply unnecessary impact loads.
1) Verify Cam Clutch direction of rotation. The arrow on the inner race shows the free running (cam disengaged) direction. Make sure that the direction of cam engagement matches the intended application.
2) Tap the inner race lightly with a soft hammer moving around the race circumference so the Cam Clutch moves slowly and uniformly onto the end of the shaft. Make sure that the outer race does not become dislodged.
3) Place an end plate over the inner race and use the mounting bolts to pull the Cam Clutch onto the shaft as shown in the diagram at right.
4) Tighten the end plate securely.

Dimensions and Capacities

■ MODELS BR20 TO BR240

For Backstop and Overrunning Applications

BR20 One Way 35MM H6 H7 1.3KG Overrunning Cam Clutch Bearing 0
Dimension (Open Type)
Model Bore Size A B C
(h7)
D
(h7)
E F Mounting Holes Pulloff Holes

H

min

I J K L

M

max

Dia.

(H7)

Keyway

Chamfer

O

PCD No.-Dia. No.-Size
G Q-R S-T
BR 20 20 6x2.8 0.5 35 35 90 66 40.7 40.7 78 6- 6.6 2-M 6 53 0 0 5 5 4.0
BR 25 25 8x3.3 0.5 35 35 95 70 44.7 44.7 82 6- 6.6 2-M 6 58 0 0 5 5 4.0
BR 30 30 8x3.3 1.0 35 35 100 75 49.7 49.7 87 6- 6.6 2-M 6 64 0 0 5 5 4.0
BR 35 35 10x3.3 1.0 35 35 110 80 54.7 54.7 96 8- 6.6 2-M 6 70 0 0 5 5 4.0
BR 40 40 12x3.3 1.0 35 35 125 90 64.7 64.7 108 8- 9.0 2-M 8 81 0 0 5 5 4.0
BR 45 45 14x3.8 1.0 35 35 130 95 69.7 69.7 112 8- 9.0 2-M 8 86 0 0 5 5 4.0
BR 50 50 14x3.8 1.0 40 40 150 110 84.7 84.7 132 8- 9.0 2-M 8 103 0 0 7.5 7.5 6.5
BR 60 60 18x4.4 1.5 60 50 175 125 80 80 155 8-11.0 2-M10 110 5 5 7 7 6.0
BR 70 70 20x4.9 1.5 60 50 190 140 95 95 165 12-11.0 2-M10 125 5 5 7 7 6.0
BR 80 80 22x5.4 1.5 70 60 210 160 115 115 185 12-11.0 2-M10 148 5 5 12 12 11.0
BR 90 90 25 x5.4 1.5 80 70 230 180 135 135 206 12-13.5 2-M12 170 5 5 17 17 16.0
BR100 100 28x6.4 1.5 90 80 270 210 143 143 240 12-17.5 2-M16 180 5 5 13.7 13.7 12.0
BR130 130 32 x7.4 2.0 90 80 310 240 173 173 278 12-17.5 2-M16 210 5 5 13.7 13.7 12.0
BR150 150 36x8.4 2.0 90 80 400 310 243 243 360 12-17.5 2-M16 280 5 5 13.7 13.7 12.0
BR180 180 45x10.4 2.0 105 80 400 310 290 270 360 12-17.5 2-M16 280 5 20 11.5 15.9 14.0
BR190 190 45x10.4 2.0 105 80 420 330 310 286 380 16-17.5 2-M16 300 5 20 12.5 8.9 7.5
BR220 220 50x11.4 2.0 105 80 460 360 340 320 410 18-17.5 2-M16 330 5 20 12.5 10.9 9.0
BR240 240 56x12.4 2.0 105 80 490 390 370 350 440 18-17.5 2-M16 360 5 20 12.5 10.9 9.0



Model Chamfer U Oil Plug Position/Dia. Weight
(kg)
Inertial Moment
GD2
(kgm2)
N P V W X×PT-Y
BR 20 1.5 1.5 30.0 17.5 − 4 × PT-1/16 1.3 2.25 × 10-4
BR 25 1.5 1.5 30.0 17.5 − 4 × PT-1/16 1.4 3.28 × 10-4
BR 30 1.5 1.5 30.0 17.5 − 4 × PT-1/16 1.5 4.44 × 10-4
BR 35 1.5 1.5 22.5 17.5 − 4 × PT-1/8 1.9 5.65 × 10-4
BR 40 1.5 1.5 22.5 17.5 − 4 × PT-1/8 2.4 1.01 × 10-3
BR 45 1.5 1.5 22.5 17.5 − 4 × PT-1/8 2.6 1.22 × 10-3
BR 50 2.5 2.0 22.5 20 − 4 × PT-1/8 4.1 2.64 × 10-3
BR 60 3.5 2.0 22.5 25 − 4 × PT-1/8 7.3 3.73 × 10-3
BR 70 3.5 2.0 15.0 25 − 4 × PT-1/8 8.1 6.65 × 10-3
BR 80 3.5 2.0 15.0 14 32 4 × PT-1/8 12.0 1.77 × 10-2
BR 90 3.5 2.0 15.0 19 32 4 × PT-1/8 16.0 3.16 × 10-2
BR100 4.5 2.0 15.0 20 40 4 × PT-1/4 23.0 6.31 × 10-2
BR130 4.5 2.0 15.0 20 40 4 × PT-1/4 31.0 0.109
BR150 4.5 3.0 15.0 20 40 4 × PT-1/4 58.0 0.365
BR180 4.5 3.0 15.0 20 40 4 × PT-1/4 60.0 0.435
BR190 4.5 3.0 11.25 20 40 4 × PT-1/4 65.0 0.563
BR220 4.5 3.0 10.0 20 40 4 × PT-1/4 76.0 0.789
BR240 4.5 3.0 10.0 20 40 4 × PT-1/4 84.0 1.05

Notes:

1. Package type Cam Clutches are all made to order. To order, please refer to the dimension diagram. Please inform us if the Cam Clutch is to be used in a vertical application, and if the operating environment temperature will be less than –5°C or more than +40°C.

2. There are cases when the free running rotation speed of the inner race will be limited when package type Cam Clutches are installed horizontally,

3. If your application calls for a clutch engagement speed or inner race free running speed not listed in this catalog,please contact TSUBAKI .

Capacities (Open Type)

ModelTorque Capacity (N·m)Inner Race Overrunning SpeedMax. Engagement(r/min)Min.(r/min)Max. (r/min)BR 203068803,600350BR 253848803,600350BR 306078803,600350BR 356867803,600300BR 409807203,600300BR 451,0786703,600280BR 501,7156103,600240BR 603,4794903,600200BR 704,7354803,600200BR 806,5174503,600190BR 908,5264203,000180BR10014,2104602,700180BR13020,3844202,400180BR15033,9083701,300160BR18033,9083703,500160BR19041,1603403,000140BR22051,0583303,000140BR24062,0343103,000130



Dimensions (Package Type)

BR20 One Way 35MM H6 H7 1.3KG Overrunning Cam Clutch Bearing 1

Model Bore Size(H7) Keyway A B C(h7) D PCDE F-G weight(kg)
BR 20P 20 6X2.8 87 79 94 35 78 6-M 6×12 3.4
BR 25P 25 8X3.3 89 81 98 40 82 6-M 6×12 3.8
BR 30P 30 8X3.3 94 85 103 45 87 6-M 6×12 4.3
BR 35P 35 10X3.3 94 85 112 50 96 8-M 6×12 5.1
BR 40P 40 12X3.3 100 91 130 55 108 8-M 8×16 7.5
BR 45P 45 14X3.8 100 91 135 60 112 8-M 8×16 7.9
BR 50P 50 14X3.8 107 98 152 70 132 8-M 8×16 10.9
BR 60P 60 18X4.4 122 112 180 80 155 8-M10×20 17.5
BR 70P 70 20X4.9 128 118 190 90 165 12-M10×20 19.5
BR 80P 80 22X5.4 148 134 210 105 185 12-M10×20 27
BR 90P 90 25X5.4 152 138 235 120 206 12-M12×24 35
BR100P 100 28X6.4 186 172 275 140 240 12-M16×32 60
BR130P 130 32X7.4 208 188 314 160 278 12-M16×32 80
BR150P 150 36X8.4 226 204 400 200 360 12-M16×32 151
BR180P 180 45X10.4 240 218 400 220 360 12-M16×32 169
BR190P 190 45X10.4 250 242 420 240 380 16-M16×32 193
BR220P 220 50X11.4 250 242 460 260 410 18-M16×32 220
BR240P 240 56X12.4 260 252 490 280 440 18-M16×32 267

Note: Above drawing is an example. Request a certified drawing when ordering, as specifications vary with each model.

Capacities (Package Type)

ModelTorque Capacity (N·m)Inner Race Overrunning SpeedMax. Engagement(r/min)Min.(r/min)Max. (r/min)BR 20P3068803,600350BR 25P3848803,600350BR 30P6078803,600350BR 35P6867803,600300BR 40P9807203,600300BR 45P1,0786703,600280BR 50P1,7156103,600240BR 60P3,4794903,600200BR 70P4,7354803,600200BR 80P6,5174503,600190BR 90P8,5264203,000180BR100P14,2104602,500180BR130P20,3844202,200180BR150P33,9083701,300160BR180P33,9083701,800160BR190P41,1603401,800140BR220P51,0583301,800140BR240P62,0343101,800130



■ USING THE BR SERIES OPEN TYPE CAM CLUTCH

While the Cam Clutch can be disassembled by the user, reassembly may prove difficult. We recommend that you

install the Cam Clutch as delivered.

Mounting and Coupling

BR20 One Way 35MM H6 H7 1.3KG Overrunning Cam Clutch Bearing 2

BR20 One Way 35MM H6 H7 1.3KG Overrunning Cam Clutch Bearing 3

Installation and Usage

4. If you are installing the outer race first, check the precision of the fit. The tolerances for outer race mounting are shown in the tables at right. Verify that the correct tolerances can be obtained. Out of spec installation could damage the Cam Clutch.
5. To lubricate the Cam Clutch, apply lubricant at the outer circumference of the inner race (see installation diagram). Avoid over lubrication, as it will cause the Cam Clutch to generate excessive heat.
6. When using the Cam Clutch at a reduction gearbox, make sure that oil from the gearbox cannot enter the Cam Clutch. Service life can be significantly shortened if the Cam Clutch comes in contact with gear oils that contain viscosity enhancing additives. Refer to page 80 for lubrication guidelines.
7. When installing a cover or seal support over the outer race, use bolts with a tensile rating of 10.9 or greater. Use a sealing agent or packing material between the mating services to prevent leakage.



■ USING THE BR SERIES PACKAGE TYPE CAM CLUTCH

Similar to previous types, the package type Cam Clutch is designed into a ball bearing cassette that makes

installation with a torque arm and/or coupling fast and easy. The package type Cam Clutch is grease lubricated.

BR20 One Way 35MM H6 H7 1.3KG Overrunning Cam Clutch Bearing 4

Installation and Usage
1. We recommend using shaft tolerances of h6 or h7 for Cam Clutch installation.
2. Use a ISO R773 (DIN 6885.1) parallel key. Make sure that the key does not move in the keyway. A loose key will damage the Cam Clutch.
3. When installing the Cam Clutch over a shaft, please follow the procedure outlined below. Never hit the clutch with a steel hammer or apply unnecessary impact loads.
1) Verify the Cam Clutch direction of rotation. The arrow on the inner race shows the free running (cam disengaged) direction. Make sure that the direction of cam engagement matches the intended application.
2) Tap the inner race lightly with a soft hammer moving around the race circumference so the Cam Clutch moves slowly and uniformly onto the end of the shaft. Make sure that the outer race does not become dislodged.
3) Place an end plate over the inner race and use the mounting bolts to pull the Cam Clutch onto the shaft as shown in the diagram at right.
4) Tighten the end plate securely to make sure that the Cam Clutch cannot move on the shaft.
4. If you using a torque arm, make sure that the bolts used to mount the torque arm have a tensile strength of 10.9 or greater, and tighten them securely.
5. Set a 2mm clearance between the torque arm and the torque arm stopper. If the torque arm is rigidly mounted, it will be applying a load to the Cam Clutch which can eventually damage it.
6. Install an appropriate coupling if there is a chance that the shaft will elongate from thermal expansion as encountered in some exhaust fan auxiliary drive system applications.
7. If thrust loads are encountered, install a thrust bearing which will prevent those thrust loads from being transferred to the Cam Clutch.
8. The Cam Clutch is pre-packed with grease before shipment and is ready for installation and operation. Refer to page 80 for lubrication guidelines.

Pictures

BR20 One Way 35MM H6 H7 1.3KG Overrunning Cam Clutch Bearing 5

BR20 One Way 35MM H6 H7 1.3KG Overrunning Cam Clutch Bearing 6
