Overrunning Clutch Bearing
>
|
|
| Place of Origin | CHINA |
| Brand Name | SUMA |
| Certification | ISO SGS |
| Model Number | CKL-A80210 |
CKL-A90270 Overrunning Clutch Coupling Bearing One Way
|
Type
|
Normal Torque
|
Overrunning Speed r/min |
Dimension mm |
Weight
|
|||||||||
| Inner race | Outer race | dH7 | D k (H7) | D | D 1 | L | L 1 | L 2 | B | b n ×t n | |||
| CKL-A1252 | 44 | 2125 | 2100 | 12 | 12~25 | 52 | 97 | 90.0 | 35 | 42 | 13.0 | 2×1.0 | 3.0 |
| CKL-A1568 | 90 | 1615 | 2100 | 15 | 15~30 | 68 | 112 | 110.0 | 40 | 52 | 18.0 | 3×1.4 | 4.4 |
| CKL-A2075 | 98 | 1360 | 1960 | 20 | 15~30 | 75 | 118 | 114.5 | 40 | 56 | 14.0 | 3×1.4 | 4.6 |
| CKL-A2590 | 230 | 1190 | 1610 | 25 | 20~40 | 90 | 130 | 127.5 | 50 | 60 | 17.5 | 4×1.8 | 6.4 |
| CKL-A30100 | 400 | 1105 | 1470 | 30 | 20~50 | 100 | 160 | 146.0 | 60 | 66 | 20.0 | 5×2.3 | 11 |
| CKL-A35110 | 580 | 935 | 1330 | 35 | 25~65 | 110 | 190 | 168.0 | 75 | 74 | 19.0 | 6×2.8 | 17 |
| CKL-A40125 | 820 | 807.5 | 1190 | 40 | 25~65 | 125 | 190 | 178.0 | 75 | 86 | 17.0 | 6×2.8 | 19 |
| CKL-A45130 | 840 | 765 | 1120 | 45 | 25~65 | 130 | 190 | 178.0 | 75 | 86 | 17.0 | 6×2.8 | 19 |
| CKL-A48150 | 1400 | 730 | 1000 | 48 | 25~65 | 150 | 225 | 207.0 | 90 | 88 | 25.0 | 14×3.8 | 31.5 |
| CKL-A50150 | 1400 | 722.5 | 980 | 50 | 30~75 | 150 | 225 | 207.0 | 90 | 92 | 25.0 | 14×3.8 | 31 |
| CKL-A55160 | 1600 | 612 | 910 | 55 | 35~90 | 160 | 270 | 233.5 | 100 | 104 | 29.5 | 16×4.3 | 47 |
| CKL-A60170 | 2200 | 578 | 840 | 60 | 35~90 | 170 | 270 | 244.0 | 94 | 114 | 30.0 | 18×4.4 | 49 |
| CKL-A70170 | 2200 | 578 | 840 | 70 | 35~90 | 170 | 270 | 267 | 117 | 114 | 30.0 | 20×4.9 | 48 |
| CKL-A70190 | 4500 | 493 | 770 | 70 | 45~110 | 190 | 340 | 312.5 | 140 | 134 | 38.5 | 20×4.9 | 90 |
| CKL-A75190 | 4500 | 493 | 770 | 75 | 50~120 | 190 | 340 | 312.5 | 140 | 134 | 35.0 | 20×4.9 | 88 |
| CKL-A80210 | 6800 | 408 | 630 | 80 | 55~125 | 210 | 380 | 340.0 | 160 | 142 | 35.0 | 22×5.4 | 107 |
| CKL-A90230 | 11000 | 323 | 595 | 90 | 65~140 | 230 | 440 | 369.0 | 160 | 159 | 50.0 | 25×6.4 | 170 |
| CKL-A95230 | 11000 | 323 | 595 | 95 | 70~145 | 230 | 440 | 379.0 | 160 | 175 | 35.0 | 25×5.4 | 165 |
| CKL-A100270 | 16000 | 297.5 | 525 | 100 | 76~160 | 270 | 500 | 422.5 | 200 | 182 | 40.5 | 28×6.4 | 230 |
| CKL-A75170 | 2200 | 578 | 840 | 75 | 35~90 | 170 | 270 | 291 | 140 | 114 | 30.0 | 20×4.9 | 46 |
Dimensions and Capacities
Features
Type CKL-A is a sprag type freewheels,self contained,sealed and bearing supported. Units is delivered oil lubricated.
The inner race and flange are keyed to the opposite shaft.
This combination is used as overrunning clutch and extensive used in mechanism of packing, traffic. and metallury.mine and so on.
Mounting Example

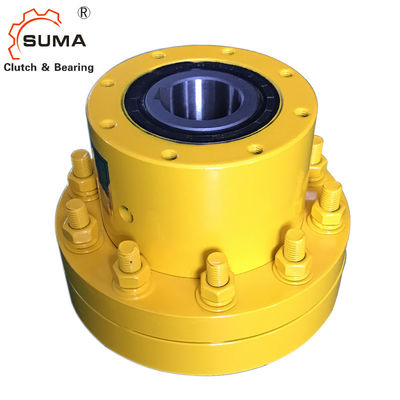

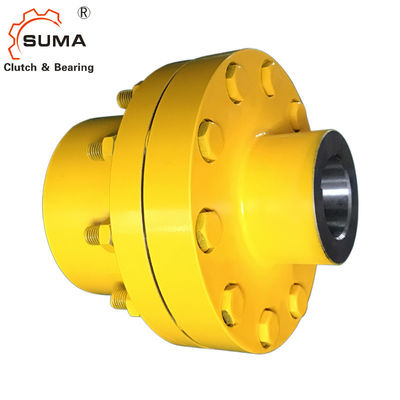

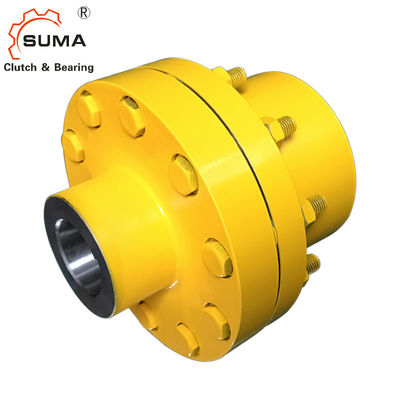

Product Picture:
Application
