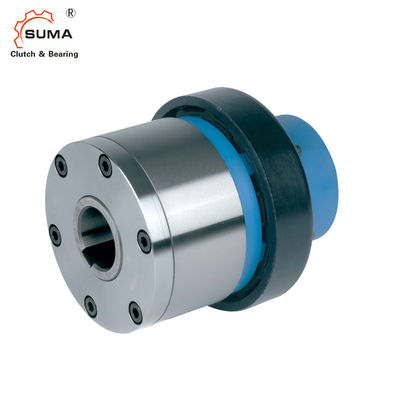

ESG2 Overrunning GCr15 Indexing Freewheel Clutch

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: RIZ30 ESG2
Minimum Order Quantity: 1
Price: USD50-USD130 PER PIECE
Packaging Details: Carton Box
Delivery Time: 7-10 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability: 1000PCS Per Month
Product Name: Overrunning Clutch Bearing RIZ30 ESG2 Material: GCr15 Bearing Steel
Unit Weight: 5Kg Warranty: 1 Year
Overrunning Speed: 9000RPM Torque Capacity: 80Nm
OEM: Accept Port: Shanghai Ningbo
High Light:

ESG2 Freewheel Clutch

,

Indexing Freewheel Clutch

,

Indexing One Way Sprag

            ESG2 Overrunning GCr15 Indexing Freewheel Clutch

Feature

  Type RIZ..ESG2 is a centrifugal lift off sprag type freewheel when the inner race is overrunning. Only this race is designed for freewheeling.
  It is a self-contained unit designed for overrunning clutch applications. Typically used in crawl drives where the overrunning speed is high, but the drive speed is low and does not exceed the maximum driving speed specified in the table.
  It is a type RIZ (» see page 84 for further information) equipped with an ES elastic coupling and a cover G2. The ES type is a rugged coupling, economical and suitable for many applications.
  The inner race must overrun and will be connected to the driven machine shaft. When ordered complete, the unit is delivered grease lubricated, ready for either horizontal or vertical installation.

Dimensions and Capacities

ESG2 Overrunning GCr15 Indexing Freewheel Clutch 0

Type Size









Speeds





Weight
RIZ..ESG2 dH7 ES TKN nmax1) nmin2) nmax3) dK1H7 D L1 b1
[mm]   [Nm] [min-1 ] [min-1 ] [min-1 ] [mm] [mm] [mm] [mm] [kg]
30 10 80 290 700 9000 10.. 45 100 68 17 5
35 16 250 280 670 8500 10.. 50 110 74 19 6.6
40 25 400 260 630 7500 15.. 55 125 86 22 9.9
45 40 625 255 610 6700 20.. 60 130 86 26 11.3
50 63 1000 235 560 6000 20.. 70 150 94 30 16.7
60 100 1600 210 510 5300 25.. 75 170 114 35 24
70 160 2500 195 470 4000 30.. 80 190 134 41 32.5
80 400 5000 155 375 4000 45.. 100 210 144 56 52
90 630 7500 145 350 3000 60.. 120 230 158 64 78
100 1000 12500 140 340 2400 75.. 140 270 182 75 136
130 1600 20000 130 320 2400 90.. 160 310 212 85 199

NOTES

1) This maximum allowable torque transmission speed n max must not be exceeded when transmitting torque

2) Inner race

This minimum allowable overrunning speed n min should not be reduced under continuous operation.

Possible reduction of this minimum speed on request

3) Inner race

Keyway to DIN 6885.11

When ordering, please specify d k bore diameter and direction of rotation seen from arrow „A“:„R“ Inner race

overruns in clockwise direction, „L“ Inner race overruns in counterclockwise direction » Refer to mounting and maintenance instructions

Mounting Example
