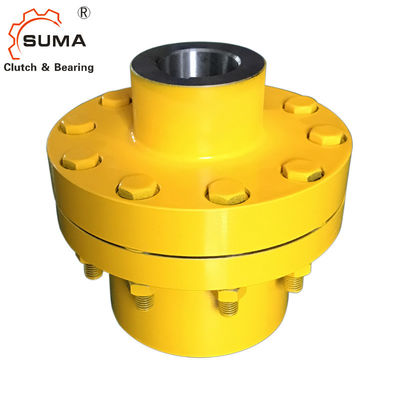

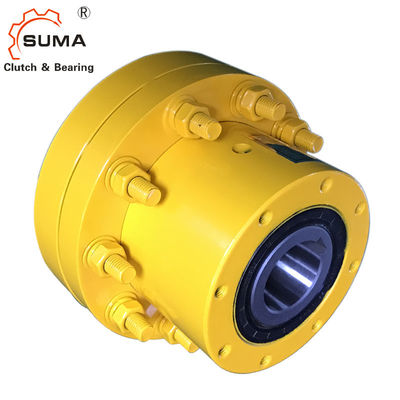

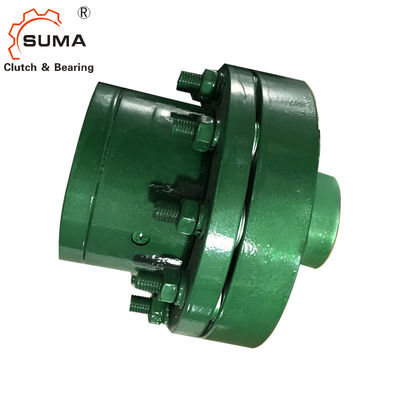

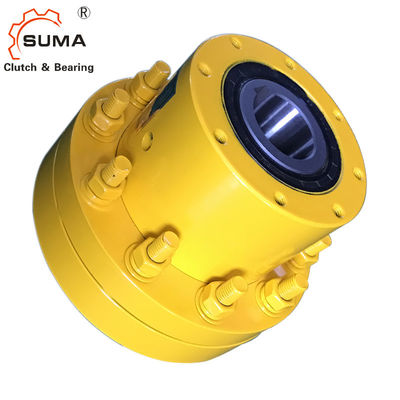

CKL-B 1 Way Coupling Overrunning Backstop Clutch
Features
Type CKL-B is a sprag type freewheels,self contained,sealed and bearing supported. It mainly used in occasion of high overrunning speed and lower start speed. It needs greaseor oil when used.
It has same character and dimension as CKL-A.
This combination is used as overrunning clutch and extensive used in mechanism of packing, traffic. and metallury.mine and so on.
Technical Datas
| Model | CKL-B35110 | |
| Torque (Nm) | 580 | |
| Overrunning Speed (rpm) | Inner Race | 2500 |
| Outer Race | 740 | |
| Inner Race Size (mm) | 35 | |
| Outer Race Size (mm) | 110 | |
| Thickness (mm) | 168 | |
| Weight (Kg) | 17 | |
Dimensions and Capacities
| Type | Nominal Torque Nm |
Overrunning Limiting Speeds |
Dimension in Cintour mm |
Weight | |||||||||
| n min | n max | d H7 |
d1 H7 |
D | D1 H7 |
L | L1 | L2 | B | bn×tn | Kg | ||
| CKL-B2590 | 230 | 800 | 2500 | 25 | 20-40 | 90 | 130 | 127.5 | 50 | 60 | 17.5 | 4×1.8 | 6.4 |
| CKL-B30100 | 400 | 780 | 2500 | 30 | 20-50 | 100 | 160 | 146 | 60 | 66 | 20 | 5×2.3 | 11 |
| CKL-B35110 | 580 | 740 | 2500 | 35 | 25-65 | 110 | 190 | 168 | 75 | 74 | 19 | 6×2.8 | 17 |
| CKL-B40125 | 820 | 720 | 2500 | 40 | 25-65 | 125 | 190 | 178 | 75 | 86 | 17 | 6×2.8 | 19 |
| CKL-B45130 | 840 | 660 | 2500 | 45 | 25-65 | 130 | 190 | 178 | 75 | 86 | 17 | 6×2.8 | 19 |
| CKL-B50150 | 1400 | 610 | 2000 | 50 | 30-75 | 150 | 225 | 207 | 90 | 92 | 25 | 14×3.8 | 31 |
| CKL-B55160 | 1600 | 600 | 2000 | 55 | 35-90 | 160 | 270 | 233.5 | 100 | 104 | 29.5 | 16×4.3 | 47 |
| CKL-B60170 | 2200 | 490 | 2000 | 60 | 35-90 | 170 | 270 | 244 | 94 | 114 | 30 | 18×4.4 | 49 |
| CKL-B70190 | 4500 | 480 | 2000 | 70 | 45-110 | 190 | 340 | 312.5 | 140 | 134 | 38.5 | 20×4.9 | 90 |
| CKL-B80210 | 6800 | 450 | 1500 | 80 | 55-125 | 210 | 380 | 340 | 160 | 142 | 35 | 22×4.9 | 107 |
| CKL-B90230 | 11000 | 420 | 1500 | 90 | 65-140 | 230 | 440 | 369 | 160 | 159 | 50 | 25×6.4 | 170 |
| CKL-B100270 | 16000 | 400 | 1500 | 100 | 75-160 | 270 | 500 | 422 | 200 | 182 | 40.5 | 28×6.4 | 230 |
