NF40 1 Directional Sprag Overrunning Clutch Bearing

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: NF40
Minimum Order Quantity: 1 PC
Price: USD300-USD600 PER PIECE
Packaging Details: Wooden Box
Delivery Time: 7-15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability: 2000 PCS PER MONTH
Prodcut Name: Overrunning Clutch Bearing NF40 Material: Bearing Steel GCr15
Bore Size: 60-80mm OD Size: 245mm
Warranty: 1 Year Weight: 49Kg
OEM: Accept Ddlivery Time: 5-7 Days
Port: Shanghai Ningbo
High Light:

1 Directional Overrunning Clutch Bearing

,

NF40 Overrunning Clutch Bearing

,

NF40 Overrunning Clutch

   NF40 1 Directional Sprag Overrunning Clutch Bearing

Features

Type NF is roller type freewheel non-bearing supported.

Standard lubrication is OIL.

Technical Datas

Product name roller clutch bearing
Model NF40
Material GCr15
Inner diameter 60-80mm
Outer diameter 245mm
Inner race overrunning speed 1500r/min
Outer race overrunning speed 425r/min
Weight 49Kg
Torque Capacity 4000Nm
Application Reducer, Printer machine, Texitle Machine, Belt Conveyor, Salt industry
Package Wooden box, tube, pulley, etc
Payment terms TT. L/C, D/A,D/P,Western Union,Paypal

Dimensions and Capacities


Model Torque Min Rotation Max Rotation Dimension Weight
speed speed
Nm r/min r/min d D d1 H H1 L L1 L2 L3 kg
NF10 1000 450 1500 40-50 190 28 273 150 172 25 20 5 28
NF16 1600 45-60 208 32 295 160 182 22 31
NF25 2500 425 50-70 230 38 323 170 190 25 38
NF40 4000 60-80 245 42 350 185 207 28 30 49
NF63 6300 400 70-90 260 45 370 195 221 30 35 62
NF80 8000 80-100 275 48 396 210 226 35 35 73
NF100 10000 90-110 295 52 425 225 261 45 98
NF125 12500 375 100-130 330 58 473 250 296 40 50 8 154
NF160 16000 1000 110-140 360 62 512 270 306 55 175
NF200 20000 350 120-150 400 65 565 300 306 50 58 241
NF250 25000 130-160 430 70 620 335 316 63 256


Pictures

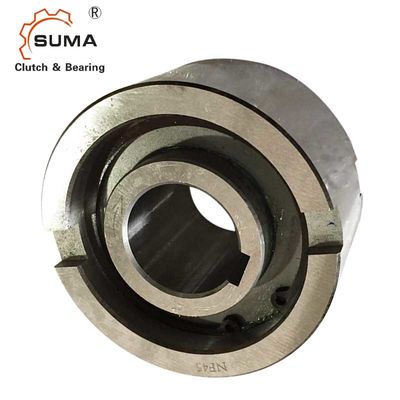

NF40 1 Directional Sprag Overrunning Clutch Bearing 1

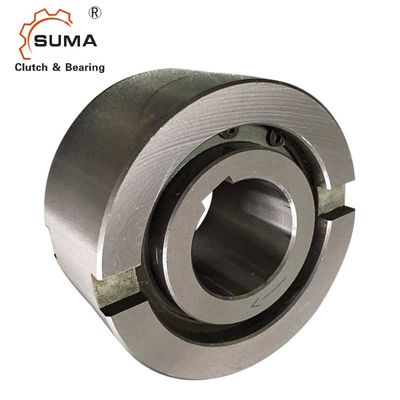

NF40 1 Directional Sprag Overrunning Clutch Bearing 2
