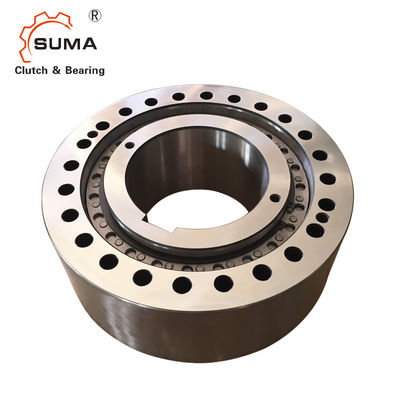

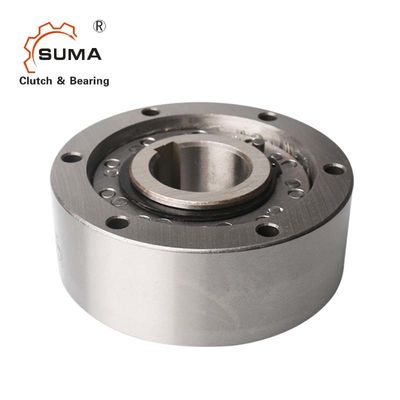

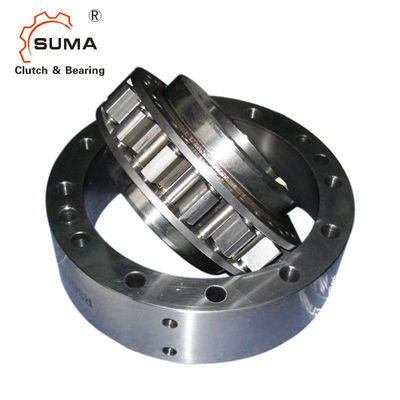

RSCI50 Centrifugal 6000RPM Overrunning Clutch Bearing
Features
Type RSCI is a centrifugal lift off sprag type freewheel with the inner race rotating. Only the inner race is designed for freewheeling. It is a non self- supported type.
Bearings must be provided to ensure concentricity of the inner and outer races support axial and radial loads, as shown overleaf.
Concentricity and runout limits must be observed. The RSCI type accepts all types of lubricant currently used in power transmission equipment. It is possible to mount these freewheels directly in gear-boxes without separate lubrication. An oil mist is generally sufficient. Grease lubrication may be acceptable if the unit works mostly in overrunning condition, as on E-motors.
When used as a backstop, it must be checked that the overrunning speed will not go below the minimum speed given in the characteristics table.
Dimension and Capacity
Type | Size | Speeds | No. | Weight | |||||||||||||||||||
RS CI |
dH7 |
TK N1) |
n max 2) |
n imin3) |
n imax4) |
D) | D1h6 | D2H7 | D3 | D4 | z | L | I | I1 | I4 | f*45° | dmin | m | tmin | I2 | I3 |
RS CI |
F8 |
mm | Nm | min-1 | min-1 | min-1 | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg | kg | |||
20 | 212 | 315 | 750 | 15000 | 90 | 36 | 66 | 78 | M6 | 6 | 35 | 35 | 25 | 0 | 0.8 | 52 | 5 | 1 | 8 | 16 | 1.5 | 0.3 | |
25 | 319 | 300 | 725 | 14000 | 95 | 40 | 70 | 82 | M6 | 6 | 35 | 35 | 25 | 0 | 1 | 56 | 5 | 1 | 8 | 16 | 1.6 | 0.4 | |
30 | 375 | 290 | 700 | 11000 | 100 | 45 | 75 | 87 | M6 | 6 | 35 | 35 | 25 | 0 | 1.5 | 62 | 5 | 1 | 8 | 16 | 1.8 | 0.4 | |
35 | 550 | 280 | 670 | 11000 | 110 | 50 | 80 | 96 | M6 | 8 | 35 | 35 | 25 | 0 | 1.5 | 66 | 5 | 1 | 8 | 16 | 2.1 | 0.5 | |
40 | 800 | 260 | 630 | 8000 | 125 | 60 | 90 | 108 | M8 | 8 | 35 | 35 | 25 | 0 | 1.5 | 76 | 5 | 1 | 10 | 21 | 2.7 | 0.7 | |
45 | 912 | 255 | 610 | 7000 | 130 | 65 | 95 | 112 | M8 | 8 | 35 | 35 | 25 | 0 | 1.5 | 82 | 5 | 1 | 10 | 21 | 2.9 | 0.9 | |
50 | 1400 | 235 | 560 | 6000 | 150 | 80 | 110 | 132 | M8 | 8 | 40 | 40 | 25 | 0 | 1.5 | 100 | 7.5 | 1 | 10 | 21 | 4.3 | 1 | |
60 | 2350 | 210 | 510 | 6000 | 175 | 85 | 125 | 155 | M10 | 8 | 60 | 50 | 36 | 5 | 2 | 110 | 12 | 2 | 12 | 35 | 6.5 | 1.8 | |
70 | 3050 | 195 | 470 | 4000 | 190 | 100 | 140 | 165 | M10 | 12 | 60 | 50 | 36 | 5 | 2 | 120 | 12 | 2 | 12 | 35 | 8.6 | 1.9 | |
80 | 4500 | 180 | 440 | 4000 | 210 | 120 | 160 | 185 | M10 | 12 | 70 | 60 | 36 | 5 | 2 | 140 | 17 | 3 | 12 | 35 | 12.5 | 2.6 | |
80M | 5800 | 155 | 375 | 4000 | 210 | 120 | 160 | 185 | M10 | 12 | 70 | 60 | 46 | 5 | 2 | 140 | 12 | 2 | 12 | 35 | 13.1 | 2.6 | |
90 | 5600 | 170 | 410 | 3000 | 230 | 140 | 180 | 206 | M12 | 12 | 80 | 70 | 36 | 5 | 2.5 | 165 | 22 | 3 | 12 | 35 | 17.4 | 3 | |
90M | 8700 | 145 | 350 | 3000 | 245 | 140 | 180 | 206 | M12 | 12 | 80 | 70 | 46 | 5 | 2.5 | 160 | 17 | 2 | 12 | 35 | 18.3 | 3 | |
100 | 10500 | 145 | 355 | 3000 | 290 | 140 | 210 | 258 | M16 | 12 | 90 | 80 | 52.6 | 5 | 2.5 | 180 | 18.6 | 3 | 15 | 37 | 28 | 5 | |
100M | 16000 | 140 | 340 | 2400 | 290 | 170 | 210 | 258 | M16 | 12 | 90 | 80 | 63 | 5 | 2.5 | 200 | 13.5 | 2 | 12 | 35 | 30 | 5 | |
130 | 15750 | 135 | 330 | 2400 | 322 | 170 | 240 | 278 | M16 | 12 | 90 | 80 | 52.6 | 5 | 3 | 210 | 18.6 | 3 | 15 | 37 | 35 |
6 |
Notes:
1) T max = 2 × T KN
2) This maximum allowable torque transmission speed nmax must not be exceeded when transmitting torque.
3) This minimum allowable overrunning speed ni imin should not be reduced under continuous operation.
Possible reduction of this minimum speed on request
4) Inner race overruns Keyway to DIN 6885.1
5) Tolerance +1
Cover F8 must be ordered separately
