SGS FXM120-50SX/H75 GCr15 Sprag Lift Off Overrunning Clutch Bearing
  • SGS FXM120-50SX/H75 GCr15 Sprag Lift Off Overrunning Clutch Bearing
  • SGS FXM120-50SX/H75 GCr15 Sprag Lift Off Overrunning Clutch Bearing
  • SGS FXM120-50SX/H75 GCr15 Sprag Lift Off Overrunning Clutch Bearing
  • SGS FXM120-50SX/H75 GCr15 Sprag Lift Off Overrunning Clutch Bearing
  • SGS FXM120-50SX/H75 GCr15 Sprag Lift Off Overrunning Clutch Bearing

SGS FXM120-50SX/H75 GCr15 Sprag Lift Off Overrunning Clutch Bearing

Place of Origin CHINA
Brand Name SUMA
Certification ISO SGS
Model Number FXM120-50SX/H75
Product Details
Product Name:
Overrunning Clutch
Material:
Bearing Steel GCr15
Bore Range:
60-95mm
Torque:
7700Nm
Rotation Speed:
4000RPM
Outer Dia.:
210mm
OEM:
Accept
Shaft Tolearance:
ISO H6 Or J6
High Light:

SGS Lift Off Overrunning Clutch Bearing

,

GCr15 Overrunning Clutch Bearing

,

GCr15 one way sprag clutch

Payment & Shipping Terms
Minimum Order Quantity
1 PC
Price
USD298-USD360 PER PIECE
Packaging Details
Carton Box / Wooden Box
Delivery Time
7-15 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability
1000 PCS PER MONTH
Product Description

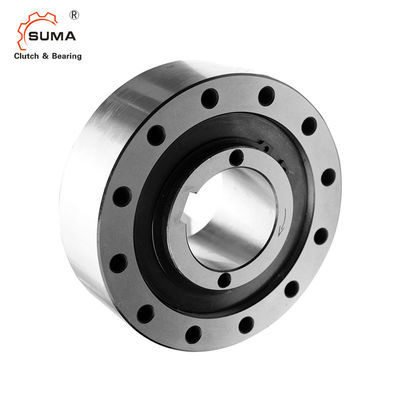

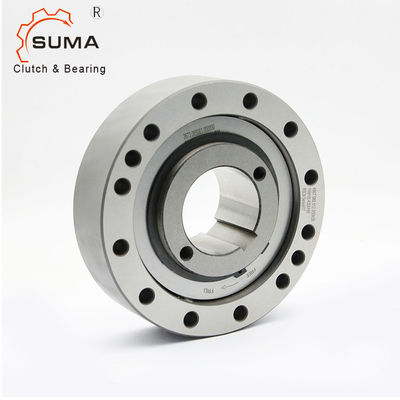

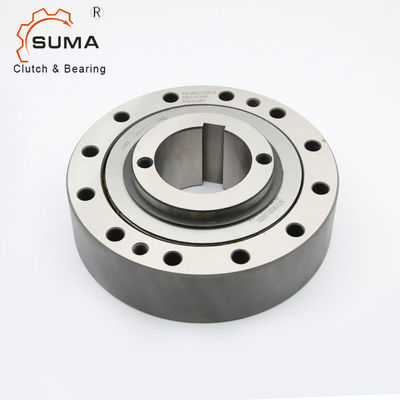

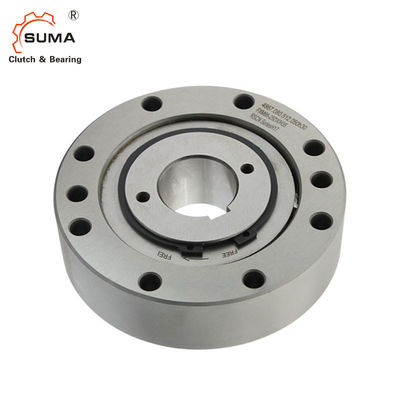

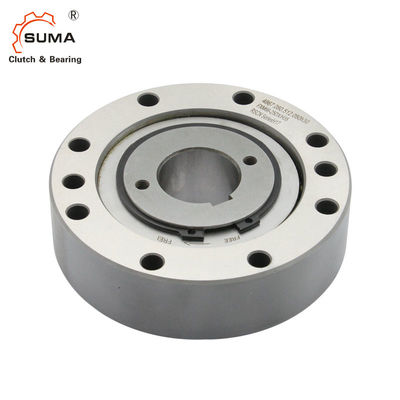

FXM120-50SX/H75 Sprag Lift Off Overrunning Clutch Bearing One Way

Features of Overrunning Clutch Bearing



Sprag lift-off X

  Integrated Freewheels FXM are equipped with sprag lift-off X. The sprag lift-off X is used for backstops and overrunning clutches, provided that in freewheeling operation the inner ring is rotating at high speed and providing with overrunning clutches that the driving operation is conducted at low speed. In freewheeling operation, the centrifugal force FC causes the sprag to lift off from the outer track. In this operating state, the freewheel works wear-free,  i.e. with unlimited service life.



Technical Datas of Overrunning Clutch Bearing

Item FXM120-50SX/H75
Material GCr15
Bore dia. 60-90 mm
Outer dia. 210 mm
Width 70 mm
Torque capacity 7700 N.m
Weight 12.7 kg
Package Carton box, wooden box or as your requirements

Dimensions and Capacities







Type
d A B D E F G J L P T U V W Z** Weight
  mm
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm kg
FXM 31 -17 20*           20* 17 25 85 41 55 M6 31 24 1,0 70 15 6 21 6 0,8
FXM 38 -17 25*           25* 17 25 90 48 62 M6 38 24 1,0 75 15 6 21 6 0,9
FXM 46 -25 25           30 25 35 95 56 70 M6 46 35 1,0 82 15 6 21 6 1,3
FXM 51 -25 25 30 35       36 25 35 105 62 75 M6 51 35 1,0 90 15 6 21 6 1,7
FXM 56 -25 35           40 25 35 110 66 80 M6 56 35 1,0 96 15 6 21 8 1,8
FXM 61 -19 30 35 40       45* 19 27 120 74 85 M8 61 25 1,0 105 15 6 21 6 1,8
FXM 66 -25 35 40 45       48* 25 35 132 82 90 M8 66 35 1,0 115 15 8 23 8 2,8
FXM 76 -25 45 55         60* 25 35 140 92 100 M8 76 35 1,0 125 15 8 23 8 3,1
FXM 86 -25 40 45 50 60 65   70* 25 40 150 102 110 M8 86 40 1,0 132 15 8 23 8 4,2
FXM 101 -25 55 70         80* 25 50 175 117 125 M10 101 50 1,0 155 20 8 28 8 6,9
FXM 85 -40 45 50 60 65     65 40 50 175 102 125 M10 85 60 1,0 155 20 8 28 8 7,4
FXM 100 -40 45 50 55 60 70 75 80* 40 50 190 130 140 M10 100 60 1,5 165 25 10 35 12 8,8
FXM 120 -50 60 65 70 75 80 95 95 50 60 210 150 160 M10 120 70 1,5 185 25 10 35 12 12,7
FXM 140 -50 65 90 100 110     110 50 70 245 170 180 M12 140 70 2,0 218 25 12 35 12 19,8
FXM 170 -63 70 85 90 100 120   130 63 80 290 200 210 M16 170 80 2,0 258 28 12 38 12 33,0
FXM 200 -63 130           155 63 80 310 230 240 M16 200 80 2,0 278 32 12 42 12 32,0
FXM 240 - 63             185 63 80 400 280 310 M20 240 90 2,0 360 48 15 60 12 60,0
FXM 240 - 96             185 96 125 420 280 310 M24 240 120 2,0 370 48 18 60 16 95,0
FXM 260 - 63             205 63 80 430 300 330 M20 260 105 2,0 380 48 18 60 16 75,0
FXM 290 - 70             230 70 80 460 330 360 M20 290 105 2,0 410 48 18 60 16 90,0
FXM 290 - 96             230 96 110 460 330 360 M20 290 120 2,0 410 48 18 60 16 91,0
FXM 310 - 70             240 70 125 497 360 380 M20 310 110 3,0 450 48 18 60 24 135,0
FXM 310 - 96             240 96 125 497 360 380 M20 310 120 3,0 450 48 18 60 24 145,0
FXM 320 - 70             250 70 80 490 360 390 M24 320 105 3,0 440 55 20 68 16 105,0
FXM 360 - 100             280 100 120 540 400 430 M24 360 125 3,0 500 55 20 68 24 170,0
FXM 410 - 100             320 100 120 630 460 480 M24 410 125 3,0 560 55 20 68 24 245,0
FXM 2410 - 100             320 200 220 630 460 480 M30 410 220 3,0 560 55 20 68 24 440,0



Integrated Freewheels FXM are sprag freewheels without bearing support and with sprag lift-off X. The sprag lift-off X ensures a wear free freewheeling operation when the inner ring rotates at high speed. The freewheels FXM are used as:

Backstops

Overrunning Clutches

for applications with high speed freewheel ing operation and when used as an overrunning clutch with low speed driving operation. Nominal torques up to 888 000 Nm. Bores up to 460 mm. Many standard bores are available.



Notes:

The maximum transmissible torque is 2 times the specified nominal torque.

The theoretical nominal torque applies only for ideal concentricity between the inner and outer ring. In practice, the concentricity is affected by the bearing play and centering errors of the neigh bouring parts.

Then the nominal torques specified in the table apply, whilst taking into consideration the existing run out (T.I.R.).Higher speeds upon request.
