BS75R GCr15 1 directional 180 RPM Overrunning Clutch

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: BS75R
Minimum Order Quantity: 1
Price: USD500-USD600 PER PIECE
Packaging Details: Wooden Case
Delivery Time: 7-10 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability: 1000PCS Per Month
Product Name: Backstop Clutch BS75R Material: GCr15 Bearing Steel
Torque Capacity: 2450Nm Warranty: 1 Year
Rotation Speed: 180RPM OEM: Accept
Delivery Time: 5-7 Days Port: Shanghai Ningbo
High Light:

180 RPM Overrunning Clutch

,

1 Directional Overrunning Clutch

,

GCr15 Over Running Clutch

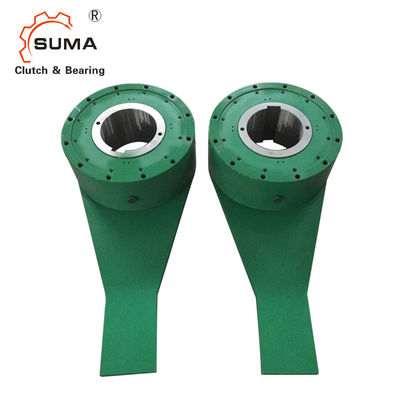

               BS75R GCr15 1 directional 180 RPM Overrunning Clutch
Features

The BS-R series offer easy lubrication maintenance.

1. Pre-insert the V-ring into the conveyor shaft in the correct direction.
2. Securely install the BS Cam Clutch onto the shaft. Apply the pressure only on the end face of the inner race

when inserting the BS Cam Clutch onto the shaft. Do not hit the inner race directly with a hammer or apply pressure

on the outer race. (Refer to page 13 for Installation and Usage)
3. Apply the sealant supplied, to the end face of the inner race and packing, and fix the BS Cam Clutch unit to

the conveyor shaft with the end plate. At the same time, use the seal washer on each bolt to prevent oil leakage.



Dimensions and Capacities



Model

Torque
Capacity
(N·m)

Bore
Diameter
Range
Max.
Overrunning
(r/m)
Inner Race

A

B

C

PCD
E

F

G

H

K

L

M

N

P

Q

R
BS65R 1,570 40to65 200 90 160 85 140 115 50 6 9.5 306 210 16 50 13.5 90
BS75R 2,450 50 to75 180 90 170 85 150 125 50 6 9.5 354 250 19 65 16.5 100
BS85R 5,880 60 to85 180 115 210 110 185 140 60 9 11 434 300 29 95 20.5 115
BS95R 7,840 70 to95 170 115 230 110 200 160 60 9 12.5 497 350 32 105 20.5 130
BS110R 10,800 80 to 110 170 115 270 110 220 180 60 12 14 560 385 40 110 26 140
BS135R 15,700 90 to 135 120 135 320 130 280 230 60 12 14 666 470 36 120 26 180



Model

Torque
Capacity
(N·m)

Bore
Diameter
Range


Max.
Over

running
(r/m)
Inner

Race


A

B

C

PCD
E

F

G

L

I

J

R

P

Q


W.

Min


W.

Max

BS160R 24500 100 to 160 100 135 360 130 315 255 60 19 16 120 32 792 580 108 95
BS200R 37200 100 to 200 100 150 430 145 380 310 60 19 21 130 43 838 623 182 155



Model

Torque
Capacity
(N·m)

Bore
Diameter
Range


Max.
Over

running
(r/m)
Inner

Race


A

B

C

PCD
E

F

G

I

L

M

N

O

P

Q


W.

Min


W.

Max

BS 220R 49000 150 to 220 80 235 500 230 420 296 95 35 12 259 311 238 1070 820 347 310
BS 250R 88200 175 to 250 50 295 600 290 530 355 125 35 12 319 375 288 1300 1000 637 580
BS 270R 123000 200 to 270 50 295 650 290 575 395 130 40 12 319 375 298 1425 1100 660 602
BS 300R 176000 230 to 300 50 295 780 290 690 495 130 45 19 333 396 356 1690 1300 1050 983
BS 335R 265000 250 to 335 50 305 850 320 750 525 135 60 19 343 405 386 1925 1500 1210 1120
BS 350R 314000 250 to 350 50 320 930 360 815 565 135 71 19 358 430 414 2065 1600 1710 1580
BS 425R 510000 325 to 425 50 440 1030 450 940 680 170 70 22 484 570 474 2315 1800 1580 2370
BS 450R 686000 350 to 450 50 450 1090 480 990 690 180 80 22 494 580 526 2545 2000 2930 2690

Notes:

1. BS-R Cam Clutch can be bored according to your specifications, but please specify the bore diameter with tolerance and keyway

dimensions.
2. Torque Arms are optional. The arm shown above is only for your reference. If necessary, please specify it on your order.

Mounting and Coupling


4. After cleaning the inside of the oil reservoir, apply the sealant on the mating face of the oil reservoir. Place the oil
level gauge vertically (red line is bottom, and blue is top),for models from BS65R to BS200R; install the oil reservoir
to the end face of the outer race with the bolts, while for models BS220R and above, install the oil reservoir to the
seal supporter using the bolts. Carefully prevent dust from penetrating the Cam Clutch or oil reservoir.
5. Press the pre-inserted V-ring entirely so that the face of the dust cover contacts closely.
6. In case the ambient temperature rises 40°C and above, it is recommended to set shield or roof and avoid direct

sunlight in order to extend the life span of Cam Clutch.

Pictures

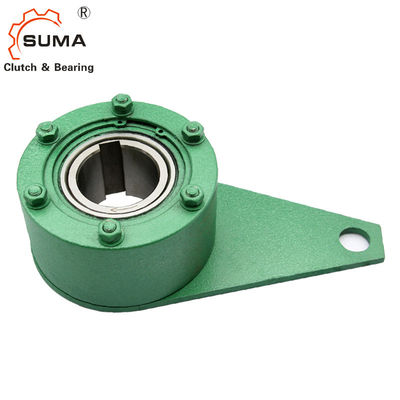

BS75R GCr15 1 directional 180 RPM Overrunning Clutch 5

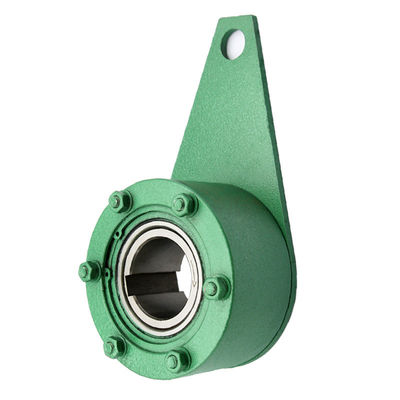

BS75R GCr15 1 directional 180 RPM Overrunning Clutch 6
