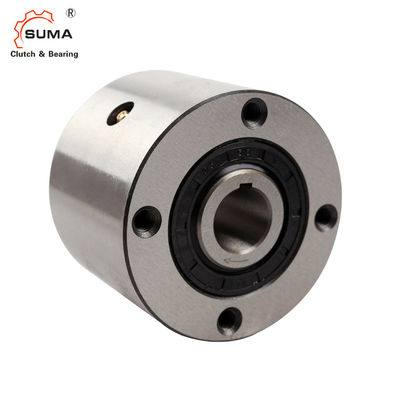

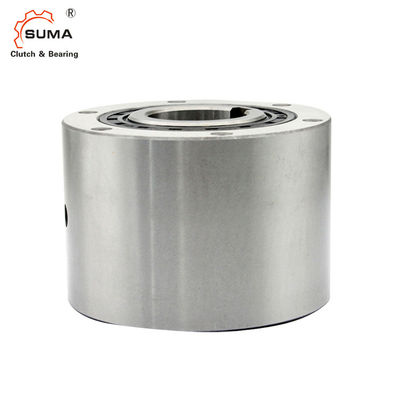

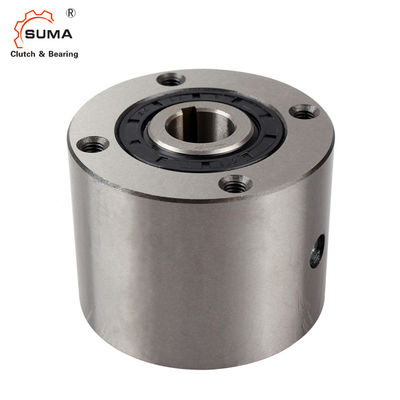

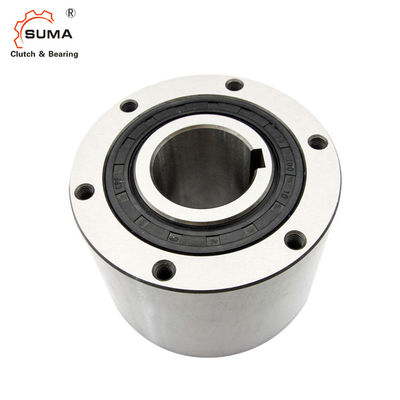

MX50 Freewheel Roller 1 Directional Cam Clutch Bearing

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: MX50
Minimum Order Quantity: 1
Price: USD160-USD200 PER PIECE
Packaging Details: Carton Box / Wooden Box
Delivery Time: 7-15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,Paypal
Product Name: Cam Clutch Bearing MX50 Bearing Supported: YES
Material: Bearing Steel GCr15 Size: 50*155*100mm
Torque Capacity: 441Nm Warranty: 1 Year
Package: Carton Box / Wooden Box Rotation Speed: 1200RPM
High Light:

MX50 Cam Clutch Bearing

,

1 Directional Cam Clutch Bearing

,

Freewheel Cam Clutch

MX50 Freewheel Roller 1 Directional Cam Clutch Bearing



Installation and Usage
1. For installation, insert the clutch into the hub bore of a pulley, a gear, or a torque arm and screw the bolts (high tension) into the tapped holes in the end face of the clutch. See illustration on the right.
2. A press fit is required for MX Series clutches for indexing applications, but do not exceed 0.025 mm when press fitting.
3. Adjust the side of the key to fit the keyway tightly, but allow a clearance between the top of key and keyway.
4. When mounting the clutch on a shaft, apply pressure to the clutch inner race end, but never to the outer race.
5. Proper selection of the Cam Clutch provides accurate indexing performance. A braking device and a backstopping device may also be required for more accurate performance.
6. The tolerance of the hub bore should be H6 or H7.



Dimensions and Capacities





Model Torque
Capacity

Max.

Indexing

Bore Size A B
(h7)
C PCD
D
E F S

Lubrication
Filler PlugSize×

Pitch

Inertia
Inner
Race
Drag
Torque
Oil Weight
Dia. Keyway
(N·m) (cycle/min) (kg·m2) (N·m) (ml) (kg)
MX22 78.4 1200 22 6 × 2.8 80 95 77 80 12 35 16 M6XP1.0 0.00015 0.47 80 3.3
MX35 235 1200 35 10 ×33 90 125 87 110 12 50 16 M6XP1.0 0.000625 1.36 110 6.4
MX50 441 1200 50 14 × 3.8 100 155 97 140 14 70 16 M8XP1.25 0.00275 2.68 190 10.6
MX70 784 1200 70 20 ×4.9 127 200 124 180 15 100 20 M8XP1.25 0.013 5.15 340 21.3

MX50 Freewheel Roller 1 Directional Cam Clutch Bearing 0

Mounting and Coupling

MX50 Freewheel Roller 1 Directional Cam Clutch Bearing 1



Pictures

MX50 Freewheel Roller 1 Directional Cam Clutch Bearing 2

MX50 Freewheel Roller 1 Directional Cam Clutch Bearing 3
