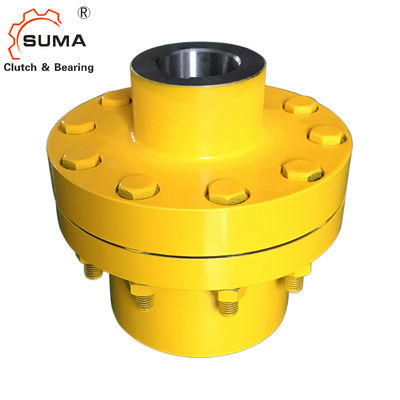

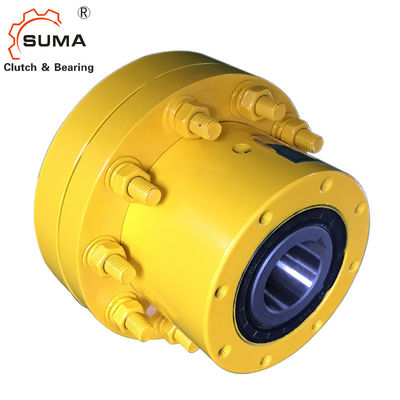

CKL-B 1 Way Coupling Overrunning Backstop Clutch

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: CKL-B35110
Minimum Order Quantity: 1
Price: USD250-USD450 PER PIECE
Packaging Details: Wooden Case
Delivery Time: 7-10 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability: 1000PCS Per Month
Product Name: Overrunning Clutch Bearing CKL-B35110 Torque Capacity: 580Nm
Rotation Speed: 2500RPM Unit Weight: 17Kg
Warranty: 1 Year Size: 35*110*168mm
Material: GCr15 Bearing Steel OEM: Accept
High Light:

CKL-B Backstop Clutch

,

Coupling Overrunning Backstop Clutch

,

1 Way Clutch Overrunning

               CKL-B 1 Way Coupling Overrunning Backstop Clutch

Features

  Type CKL-B is a sprag type freewheels,self contained,sealed and bearing supported. It mainly used in occasion of high overrunning speed and lower start speed. It needs greaseor oil when used.

It has same character and dimension as CKL-A.
  This combination is used as overrunning clutch and extensive used in mechanism of packing, traffic. and metallury.mine and so on.

Technical Datas

Model CKL-B35110
Torque (Nm) 580
Overrunning Speed (rpm) Inner Race 2500
Outer Race 740
Inner Race Size (mm) 35
Outer Race Size (mm) 110
Thickness (mm) 168
Weight (Kg) 17

Dimensions and Capacities

CKL-B 1 Way Coupling Overrunning Backstop Clutch 0

Type Nominal
Torque
Nm
Overrunning
Limiting Speeds
Dimension in Cintour
mm
Weight
n min n max d
H7
d1
H7
D D1
H7
L L1 L2 B bn×tn Kg
CKL-B2590 230 800 2500 25 20-40 90 130 127.5 50 60 17.5 4×1.8 6.4
CKL-B30100 400 780 2500 30 20-50 100 160 146 60 66 20 5×2.3 11
CKL-B35110 580 740 2500 35 25-65 110 190 168 75 74 19 6×2.8 17
CKL-B40125 820 720 2500 40 25-65 125 190 178 75 86 17 6×2.8 19
CKL-B45130 840 660 2500 45 25-65 130 190 178 75 86 17 6×2.8 19
CKL-B50150 1400 610 2000 50 30-75 150 225 207 90 92 25 14×3.8 31
CKL-B55160 1600 600 2000 55 35-90 160 270 233.5 100 104 29.5 16×4.3 47
CKL-B60170 2200 490 2000 60 35-90 170 270 244 94 114 30 18×4.4 49
CKL-B70190 4500 480 2000 70 45-110 190 340 312.5 140 134 38.5 20×4.9 90
CKL-B80210 6800 450 1500 80 55-125 210 380 340 160 142 35 22×4.9 107
CKL-B90230 11000 420 1500 90 65-140 230 440 369 160 159 50 25×6.4 170
CKL-B100270 16000 400 1500 100 75-160 270 500 422 200 182 40.5 28×6.4 230

Mounting Example

CKL-B 1 Way Coupling Overrunning Backstop Clutch 1

Application

CKL-B 1 Way Coupling Overrunning Backstop Clutch 2


CKL-B 1 Way Coupling Overrunning Backstop Clutch 3
