RSBW 30 RSBW30 One Way Bearings Backstop Clutch Overrunning Clutch

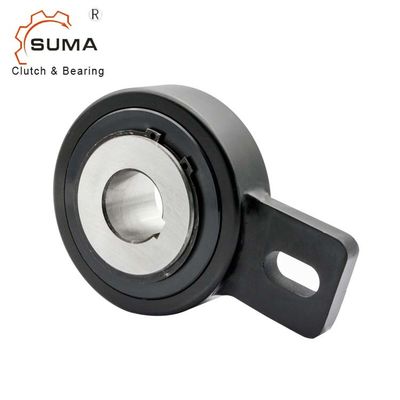

Large Image : RSBW 30 RSBW30 One Way Bearings Backstop Clutch Overrunning Clutch

Product Details:

Place of Origin:	CHINA
Brand Name:	SUMA
Certification:	ISO SGS
Model Number:	RSBW30

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD70-USD86 PER PIECE
Packaging Details:	Carton Box
Delivery Time:	7-10 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability:	1000PCS Per Month

Contact Now

RSBW 30 RSBW30 One Way Bearings Backstop Clutch Overrunning Clutch

Description

Product Name:	Backstop Clutch RSBW30	Material:	GCr15 Bearing Steel
Size:	3510635mm	Torque Capacity:	375Nm
Rotation Speed:	400RPM	Unit Weight:	2Kg
Warranty:	1 Year	OEM:	Accept
Highlight:	RSBW30 one way backstop clutch , sprag clutch bearing with warranty , overrunning clutch for industrial use

RSBW 30 RSBW30 One Way Bearings Backstop Clutch Overrunning Clutch
Features

Application:
Primarily used as a backstop. This type provide a high torque capacity with a minimum space requirement.

Structure:
Type RSBW is a DC sprag type freewheel. It is self-contained, centered by plain bearings for low rotational speeds, and sealed using shield protected O rings.

Technical Datas

Product name	Sprag type freewheel clutches
Model	RSBW30
Torque capacity	375Nm
Overrunning speeds	400 min -1
Inner diameter	30mm
Outer diameter	106mm
Thickness	35mm
Weight	4.6kg
Application	Fishinery machinery, Reducer, household appliances
Package	Carton Box
Payment terms	TT, L/C, D/A, D/P, Western Union, Paypal
Delivery time	7-10 Days

Dimensions and Capacities

RSBW 30 RSBW30 One Way Bearings Backstop Clutch Overrunning Clutch 0

Type	Size		Overrunning Speeds									Weight
RSBW	d^H7	T_KN¹)	n_imax	D	L 1	F	E	B	N	L	b^H11
	[mm]	[Nm]	[min^-1]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[kg]
	20	375	400	106	35	113	102.5	40	35	15	18	2
	25	606	400	106	48	113	102.5	40	35	15	18	2.6
	30	606	400	106	48	113	102.5	40	35	15	18	2.5
	35M	375	400	106	35	113	102.5	40	35	15	18	2
	35	606	400	106	48	113	102.5	40	35	15	18	2.4
	40	1295	300	132	52	125	115	60	35	15	18	4.6
	45	1295	300	132	52	125	115	60	35	15	18	4.5
	50	1295	300	132	52	125	115	60	35	15	18	4.5
	55	1295	300	132	52	125	115	60	35	15	18	4.4
	60	2550	250	161	54	140	130	70	35	15	18	6.5
	70	2550	250	161	54	140	130	70	35	15	18	6.4
	80	4875	200	190	70	165	150	70	45	20	25	9.9
	90	4875	200	190	70	165	150	70	45	20	25	9.8

Mounting and Coupling

RSBW 30 RSBW30 One Way Bearings Backstop Clutch Overrunning Clutch 1

Pictures

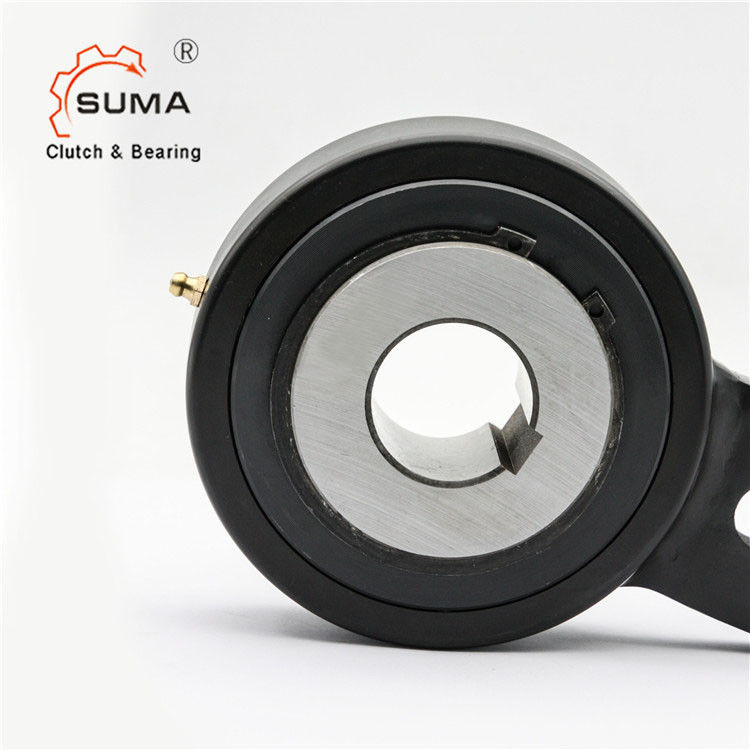

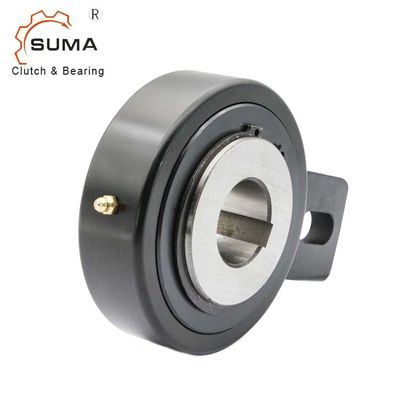

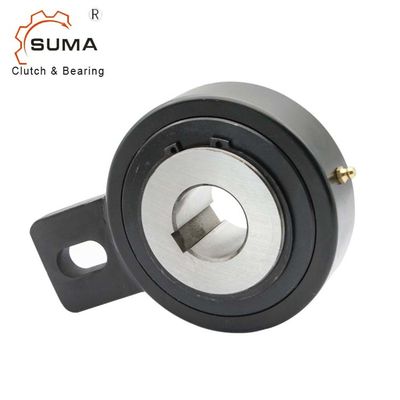

RSBW 30 RSBW30 One Way Bearings Backstop Clutch Overrunning Clutch 3

FAQ

Q: How do you pack the goods?

Total less than 25 KG : 29*28*19CM carton box

Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet

Q: Can i get the samples from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

Small items: In stock.
Medium Items: 10-15 Days
Big items: 20-25 Days
