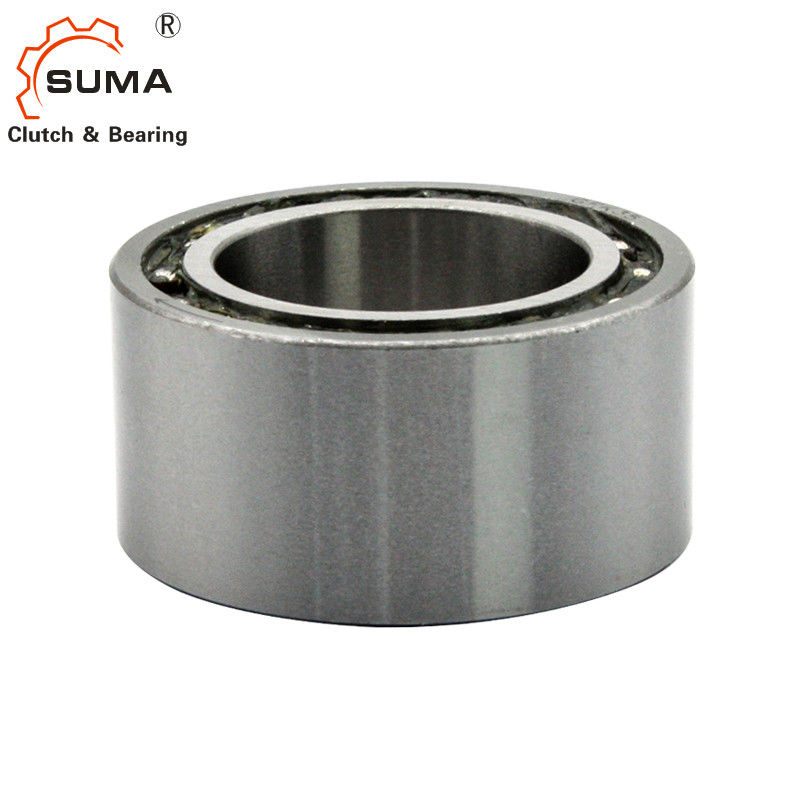

FGK50 GFK50 Cam Clutch 1 Way Freewheel Bearing 460Nm Sprag Clutch
  • FGK50 GFK50 Cam Clutch 1 Way Freewheel Bearing 460Nm Sprag Clutch
  • FGK50 GFK50 Cam Clutch 1 Way Freewheel Bearing 460Nm Sprag Clutch
  • FGK50 GFK50 Cam Clutch 1 Way Freewheel Bearing 460Nm Sprag Clutch
  • FGK50 GFK50 Cam Clutch 1 Way Freewheel Bearing 460Nm Sprag Clutch
FGK50 GFK50 Cam Clutch 1 Way Freewheel Bearing 460Nm Sprag Clutch

FGK50 GFK50 Cam Clutch 1 Way Freewheel Bearing 460Nm Sprag Clutch

Place of Origin CHINA
Brand Name SUMA
Certification ISO SGS
Model Number GFK50 FGK50
Product Details
Product Name:
One Way Clutch Bearing GFK50 FGK50
Material:
GCr15 Bearing Steel
Torque Capacity:
460Nm
Rotation Speed:
3400RPM
Unit Weight:
0.36Kg
Warranty:
1 Year
Size:
50*72*30mm
OEM:
Accept
High Light:

1 Way Sprag Clutch

,

460Nm Sprag Clutch

,

1 Way Sprag Type Clutch

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD100-USD120 PER PIECE
Packaging Details
Carton Box
Delivery Time
10-15 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability
1000PCS Per Month
Product Description

               FGK50 GFK50 Cam Clutch 1 Way Freewheel Bearing 460Nm Sprag Clutch



Features



Internal Freewheels FGK are sprag freewheels with bearing support in the dimensions of the needle bearing series 59. The freewheels are
supplied grease-filled for normal operating conditions and are maintenance-free.
The outer ring is pressed into the customer housing. This makes compact, space-saving fitting solutions possible.


GFK50 Overrunning Clutch Can be used as :

1.overrunning clutch

2.backstop clutch

3.indexing clutch

Technical Datas

Item GFK50 overrunning clutch
Brand SUMA
Type Sprag
Type of support bearing support
Bore Dia. (mm) 50
Torque (Nm) 460
Inner race overrunning speed (min-1) 3400
Outer race overrunning speed (min-1) 2200
Weight(kgs) 0.36

Dimensions and Capacities



Type Size



TKN1)		 Overrunningspeeds

Bearing

series



 Loads

Rollers

dyn.

Balls

dyn.

Rollers

stat.

Balls

stat.





GFK		 d n imax2) n amax3) C C C0 C0 D L r
[mm] [Nm] [min-1] [min-1] [N] [N] [N] [N] [mm] [mm] [mm] [kg]
20 51 5500 4000 5904 5600 4400 2900 2750 37 23 0.5 0.09
25 65 5300 3800 5905 6300 5300 3450 3350 42 23 0.5 0.11
30 95 5000 3500 5906 7700 5500 4600 3650 47 23 0.5 0.13
35 204 4600 3200 5907 8200 8500 5200 5700 55 27 1 0.2
40 315 4200 3000 5908 8650 9300 5750 6700 62 30 1 0.3
45 370 3800 2500 5909 9200 9700 6350 7300 68 30 1 0.34
50 460 3400 2200 5910 9650 10000 6950 7800 72 30 1 0.36


NOTES

1) Tmax = 2 × TKN
» Refer to Selection page 10 to 13

2) Inner race overruns

3) Outer race overruns

» Refer to mounting and maintenance instructions page 16 to 19

Mounting and Coupling

The torque is transmitted on the inner and outer ring by press fit. In order to transmit the torques specified in the table, the outer ring must be accommodated in a housing with an external diameter K. The housing is made of steel or grey cast iron in minimum quality GG-20. When using other housing materials or smaller external diameters, we urge you to contact us regarding the transmissible torque.
The tolerance of the housing bore D must be ISO R6 and the tolerance of the shaft must be ISO p5. With these fits, normal bearing clearance
is achieved in a built-in state.
The permissible operating temperature of the freewheel is - 40°C to 80°C.


Pictures

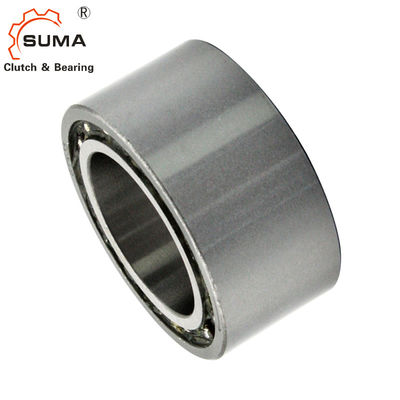

 FGK50 GFK50 Cam Clutch 1 Way Freewheel Bearing 460Nm Sprag Clutch 2

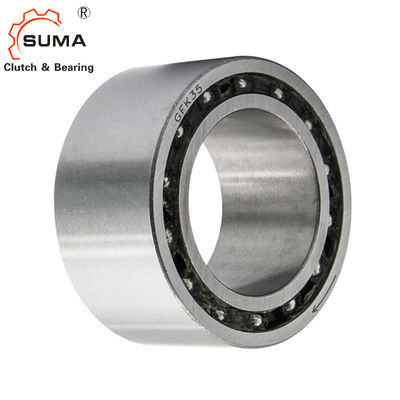

FGK50 GFK50 Cam Clutch 1 Way Freewheel Bearing 460Nm Sprag Clutch 3

FGK50 GFK50 Cam Clutch 1 Way Freewheel Bearing 460Nm Sprag Clutch 4FGK50 GFK50 Cam Clutch 1 Way Freewheel Bearing 460Nm Sprag Clutch 5
