RSXM38 Backstop 24MM One Way Sprag Clutch Bearing

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: RSXM38
Minimum Order Quantity: 1
Price: USD260-USD350 PER PIECE
Packaging Details: Wooden Case
Delivery Time: 7-10 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability: 1000PCS Per Month
Product Name: Sprag Clutch Bearing RSXM38 Material: GCr15 Bearing Steel
Size: 20.25*90*24mm Torque Capacity: 135Nm
Rotation Speed: 18500RPM Warranty: 1 Year
Unit Weight: 0.95Kg OEM: Accept
High Light:

RSXM38 Sprag Clutch Bearing

,

One Way Sprag Clutch Bearing

,

One Way Sprag Bearing

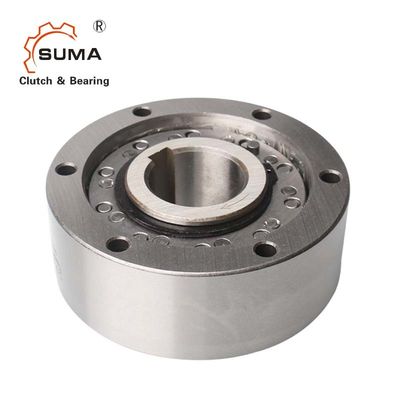

             RSXM38 Backstop 24MM One Way Sprag Clutch Bearing

Features

  The series RSXM completes teh small to medium backstop range, which commenced with the highly successful RSCI programme. Type RSXM is a centrifugal lift off sprag type freewheel with the inner race rotating. Only the inner race is designed for freewheeling. It is a non self-supported type.Bearings must be provided to ensure concentricity of the inner and outer races and support axial and radial loads, as shown overleaf. Concentricity and run-out limits must be observed.
  The RSXM type accepts all types of lubricant currently used in power transmission equipment. It is possible to mount these freewheels directly in gear-boxes without seperate lubrication. An oil mist ist generally sufficient. Grease lubrication may be acceptable if the unit works mostly in overrunning condition, as on E-motors. When used as a backstop, it must be checked that the overrun-ning speed will not go below the minimum speed given in the characteristic table.

Dimension and Capacity



Type Bore dia. Torque Overrunning speeds





RSXM dH7 TKN1) nmax2) nimin3) nimax4) D5) D1h6 D2H7 L Weight
[mm] [Nm] [min-1 ] [min-1 ] [min-1 ] [mm] [mm] [mm] [mm] [kg]
31 20 100 340 820 20000 85 31 55 24 0.75
38 20.25 135 320 770 18500 90 38 62 24 0.95
46 25.3 425 300 720 13500 95 46 70 35 1.4
51 30.35 525 220 525 12500 105 51 75 35 1.8
56 35.4 625 210 500 11500 110 56 80 35 1.8
61 35.4 420 265 640 14000 120 61 85 25 1.8
66 35.40.45 850 200 480 10000 132 66 90 35 2.7
76 40.45.50 1100 190 460 9000 140 76 100 35 3.1
86 45.5 1450 180 440 8000 150 86 110 40 4.2
101 45.55.60.70 1950 175 420 6500 175 101 125 50 7.3

RSXM38 Backstop 24MM One Way Sprag Clutch Bearing 0

NOTES

1) T max = 2 × T KN » Refer to Selection page 10 to 13

2) This maximum allowable torque transmission speed n max must not be exceeded when transmitting torque.

3) This minimum allowable overrunning speed n imin should not be rdeuced under continuous operation. Possible reduction of this minimum speed in request.

4) Inner race overruns. Keyway to DIN 6885.1

5) Tolerance +1 » Refer to mounting and maintenance instructions

Mounting

RSXM38 Backstop 24MM One Way Sprag Clutch Bearing 1

Pictures

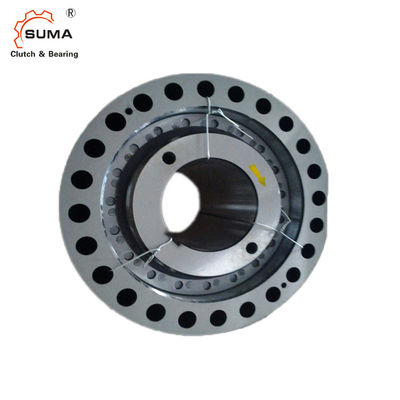

RSXM38 Backstop 24MM One Way Sprag Clutch Bearing 2

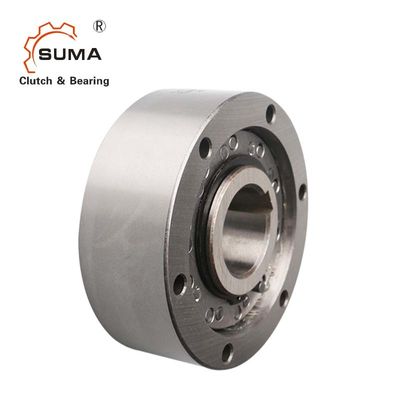

RSXM38 Backstop 24MM One Way Sprag Clutch Bearing 3
