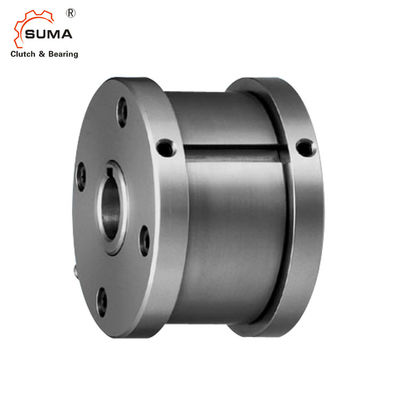

MZEU30 E5+E5 Flanges 735Nm Sprag Clutch Bearing One Way
Installation and Usage
1. The clutch is delivered with a Basic type Cam Clutch, two E5 flanges, and flange kit as separate parts.
2. Check the direction of rotation and attach an E5 flange to the clutch by the bolt.
3. When installing sprocket, gear and other equipment to the clutch, install them on the outer race and fix the key between the equipment and the outer race.
4. We recommend a tolerance of H7 for the bore of the sprocket, gear or other equipment.
5. Attach the opposite side E5 flange to the clutch by the bolts.
6. By installing the clutch to the shaft on the opposite side, the direction of rotation can be changed.
7. When mounting the clutch onto the shaft, apply pressure to the inner race but never to the outer race.
8. For high speed indexing applications (More than 50 c/min) a strong spring type is recommended.
Dimensions and Capacities
Model |
acity |
Max. Overrunning | Drag Torque |
Bore Size |
Keyway |
A |
B |
BF |
C |
D |
F |
L |
M |
b |
t1 |
ght |
|
Inner Race |
Outer Race |
||||||||||||||||
N·m | r/min | r/min | N·m | H7 |
Inner Race |
h7 | C | P10 | (kg) | ||||||||
MZEU 12K E5+E5 | 60 | 2000 | 1000 | 0.20 | 12 | 4X1.8 | 42 | 62 | 70 | 20 | 51 | 20 | 0.8 | 10.0 | 4 | 2.5 | 0.5 |
MZEU 15K E5+E5 | 100 | 1800 | 900 | 0.20 | 15 | 5X2.3 | 52 | 68 | 76 | 28 | 56 | 25 | 0.8 | 11.0 | 5 | 3.0 | 0.8 |
MZEU 20K E5+E5 | 245 | 1600 | 700 | 0.29 | 20 | 6X2.8 | 57 | 75 | 84 | 34 | 64 | 30 | 0.8 | 10.5 | 6 | 3.5 | 1.2 |
MZEU 25K E5+E5 | 425 | 1600 | 600 | 0.33 | 25 | 8X3.3 | 60 | 90 | 99 | 35 | 78 | 40 | 0.8 | 11.5 | 8 | 4.0 | 1.8 |
MZEU 30K E5+E5 | 735 | 1500 | 500 | 0.39 | 30 | 8X3.3 | 68 | 100 | 109 | 43 | 87 | 45 | 1.0 | 11.5 | 8 | 4.0 | 2.6 |
MZEU 35K E5+E5 | 1015 | 1400 | 300 | 0.49 | 35 | 10X3.3 | 74 | 110 | 119 | 45 | 96 | 50 | 1.0 | 13.5 | 10 | 5.0 | 3.2 |
MZEU 40K E5+E5 | 1350 | 1400 | 300 | 0.59 | 40 | 12X3.3 | 86 | 125 | 135 | 53 | 108 | 55 | 1.3 | 15.5 | 12 | 5.0 | 4.8 |
MZEU 45K E5+E5 | 1620 | 1400 | 300 | 0.69 | 45 | 14X3.8 | 86 | 130 | 140 | 53 | 112 | 60 | 1.3 | 15.5 | 14 | 5.5 | 6.2 |
MZEU 50K E5+E5 | 2070 | 1300 | 250 | 0.79 | 50 | 14X3.8 | 94 | 150 | 160 | 64 | 132 | 70 | 1.3 | 14.0 | 14 | 5.5 | 8.2 |
MZEU 55K E5+E5 | 2400 | 1300 | 250 | 0.88 | 55 | 16X4.3 | 104 | 160 | 170 | 66 | 138 | 75 | 1.5 | 18.0 | 16 | 6.0 | 9.5 |
MZEU 60K E5+E5 | 2950 | 1200 | 250 | 0.98 | 60 | 18X 4.4 | 114 | 170 | 182 | 78 | 150 | 80 | 1.5 | 17.0 | 18 | 7.0 | 12.3 |
MZEU 70K E5+E5 | 4210 | 1100 | 250 | 1.27 | 70 | 20X 4.9 | 134 | 190 | 202 | 95 | 165 | 90 | 1.8 | 18.5 | 20 | 7.5 | 18.1 |
MZEU 80K E5+E5 | 5170 | 800 | 200 | 1.38 | 80 | 22X5.4 | 144 | 210 | 222 | 100 | 185 | 105 | 1.8 | 21.0 | 22 | 9.0 | 23.1 |
MZEU 90K E5+E5 | 12000 | 450 | 150 | 4.70 | 90 | 25X5.4 | 158 | 230 | 242 | 115 | 206 | 120 | 2.0 | 20.5 | 25 | 9.0 | 28.1 |
MZEU100K E5+E5 | 17600 | 400 | 130 | 5.39 | 100 | 28X6.4 | 182 | 270 | 282 | 120 | 240 | 140 | 2.0 | 30.0 | 28 | 10.0 | 46.3 |
MZEU130K E5+E5 | 24500 | 320 | 110 | 6.76 | 130 | 32X7.4 | 212 | 310 | 322 | 152 | 278 | 160 | 2.5 | 29.0 | 32 | 11.0 | 70.2 |
MZEU150K E5+E5 | 33800 | 240 | 80 | 8.13 | 150 | 36X8.4 | 246 | 400 | 412 | 180 | 360 | 200 | 2.5 | 32.0 | 36 | 12.0 | 146.3 |
