Bearing Steel GCR15 Special Sprag for One Way Clutch Bearings
  • Bearing Steel GCR15 Special Sprag for One Way Clutch Bearings
  • Bearing Steel GCR15 Special Sprag for One Way Clutch Bearings
  • Bearing Steel GCR15 Special Sprag for One Way Clutch Bearings

Bearing Steel GCR15 Special Sprag for One Way Clutch Bearings

Place of Origin CHINA
Brand Name SUMA
Certification ISO SGS
Model Number Any size
Product Details
Product Name:
Sprag Roller
Material:
Bearing Steel GCr15 / SS Material
Size:
5*25 6*5
Warranty:
3 Months
Package:
Carton Box / Wooden Box
Tolerance:
Standard
OEM:
Accept
High Light:

GCR15 Special Sprag

,

One Way Clutch Bearings Sprag

,

Bearing Steel GCR15 Sprag Roller

Payment & Shipping Terms
Minimum Order Quantity
5000
Price
USD32-USD35 PER 10000 PIECE
Packaging Details
Carton Box / Wooden Box
Delivery Time
7-15 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability
1000PCS Per Month
Product Description

Special Sprag for One Way Clutch Bearings



Top characteristics of Sprag Roller



Sprag roller are widely uased on one way clutch bearings .



Standard Materials

  • Bearing steel
Name Sprag for one way clutch bearing
Material Bearing Steel GCR15
Hardness HRC60-65
Bore Tolerance ±0.01mm
Length Tolerance ±0.05mm,±0.03mm
Chamfer R0.10-R0.20mm
Parallelism 0.02mm,0.01mm
Verticality 0.02mm,0.01mm
Roughness Ra0.2um,Ra0.1um

Finish

olecranon section 5.6*3.75*(3.4-12MM) 5.02*2.77*(4-12.9MM) 4.25*2.4*(4-10MM)
figure eight section 8.45*4.5*(4-13.5MM)
fan-shaped section 4.1*2.7*(4-9.3MM) Grooving
Cut a single groove in the middle of the peach-shaped section, cut shoulders on both sides, etc. Any shape can be customized according to customer's requirements

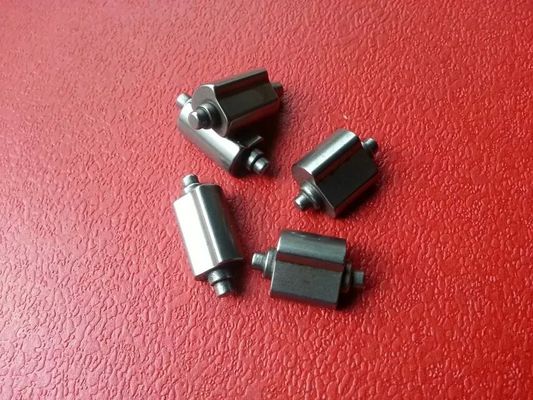

Bearing Steel GCR15 Special Sprag for One Way Clutch Bearings 0

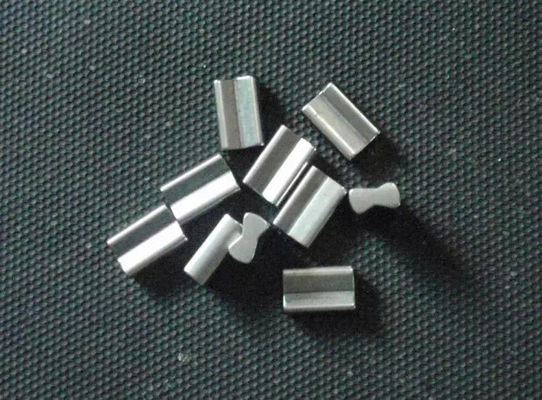

Bearing Steel GCR15 Special Sprag for One Way Clutch Bearings 1
