One Way Sprag Clutch Bearing CSK6001 CSK6002 CSK6003 CSK6004
  • One Way Sprag Clutch Bearing CSK6001 CSK6002 CSK6003 CSK6004

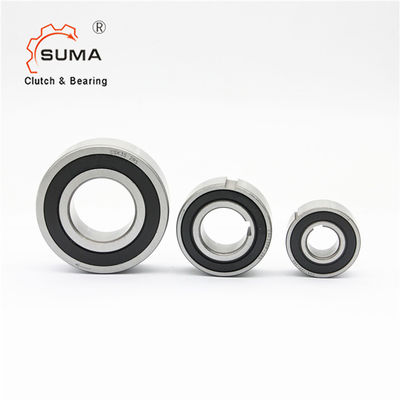

One Way Sprag Clutch Bearing CSK6001 CSK6002 CSK6003 CSK6004

Place of Origin CHINA
Brand Name SUMA
Certification ISO
Model Number CSK6001 CSK6002 CSK6003 CSK6004
Product Details
Material:
Gcr15 Bearing Steel
Torque Capacity:
85Nm
Rotation Speed:
5200 RPM
Drag Torque:
2Ncm
Unit Weight:
0.14KG
Package:
White Box + Carton Box
OEM:
Accept
Delivery Time:
5-7 Days
High Light:

85Nm One Way Sprag Clutch Bearing

,

CSK6004 Sprag Clutch Bearing

,

5200 RPM One Way Sprag Bearing

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD2.2-USD2.9 PER PIECE
Packaging Details
White Box + Carton Box + Wooden Pallet
Delivery Time
3-5 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability
20000PCS PER WEEK
Product Description

       CSK6001 CSK6002 CSK6003 CSK6004 Sprag One Way Clutch Bearing Supplier



Fearures of sprag one way clutch bearings

CSK Clutches are typically special machine elements:

When rotating in one direction, there is no contact between the inner and outer rings, i.e. the one-way clutch is free to rotate.
When turning in the other direction, the inner and outer rings are in close contact, and the one-way clutch can transmit high torques.

In addition to the basic CSK model, type CSK..P features a keyway on the inner race.

For this reason it can be keyed to a shaft to k6 tolerance. The outer race must still be pressed into a rigid housing to N6 tolerance.

CSK..PP features a keyway on both the inner and outer race. The recommended mounting tolerances are h6 on the shaft and H6 in a rigid housing. Please contact us when either the ambient or the operating temperature is not within the range +5°C to +60°C.

The CSK One Way Bearing Series has a small radial section height and is also commonly known as a One Way Bearing or Anti-Reverse Bearing. One Way Bearings are designed to transmit torque between the shaft and housing in one direction and allow free motion in the opposite direction.

Dimensions and Capacities

CSK.P PP .jpg



Type Size Bearing series   Bearing loads Weight Drag torque
dynamic static
CSK(KK) d   TKN1) N max D L C C0   TR
[mm]   [N.m] [min-1] [mm] [mm] [kN] [kN] [kg] [N.cm]
8 2.5 15000 22 9 3.28 0.86 0.015 0.5
12 6201 9.3 10000 32 10 6.1 2.77 0.04 0.7
15 6202 17 8400 35 11 7.4 3.42 0.06 0.9
17 6203 30 7350 40 12 7.9 3.8 0.07 1.1
20 6204 50 6000 47 14 9.4 4.46 0.11 1.3
25 6205 85 5200 52 15 10.7 5.46 0.14 2
30 6206 138 4200 62 16 11.7 6.45 0.21 4.4
35 6207 175 3600 72 17 12.6 7.28 0.3 5.8
40 325 3000 80 22 15.54 12.25 0.5 7
CSK..2RS 8   2.5 15000 22 9 3.28 0.86 0.015 0.8
12 9.3 10000 32 14 6.1 2.77 0.05 3
15   17 8400 35 16 7.4 3.42 0.07 4
17   30 7350 40 17 7.9 3.8 0.09 5.6
20   50 6000 47 19 9.4 4.46 0.145 6
25   85 5200 52 20 10.7 5.46 0.175 6
30   138 4200 62 21 11.7 6.45 0.27 7.5
35   175 3600 72 22 12.6 7.28 0.4 8.2
40 325 3000 80 27 15.54 12.25 0.6 10
CSK6003 17 6003 15 8400 35 10 7.4 3.42 0.055 0.9
CSK6004 20 6004 28 7350 42 12 7.9 3.8 0.065 1.1
CSK6005 25 6005 78 6200 47 14 10.7 5.46 0.1 1.3
CSK6304 20 6304 85 2300 52 15 12.3 7.88 0.18 2.2
CSK6305 25 6305 145 4400 62 17 17.3 11.51 0.26 4.4
CSK6306 30 6306 205 3800 72 19 21.73 15.82 0.415 5.8
Mounting and Coupling


PRODUCT PICTURE

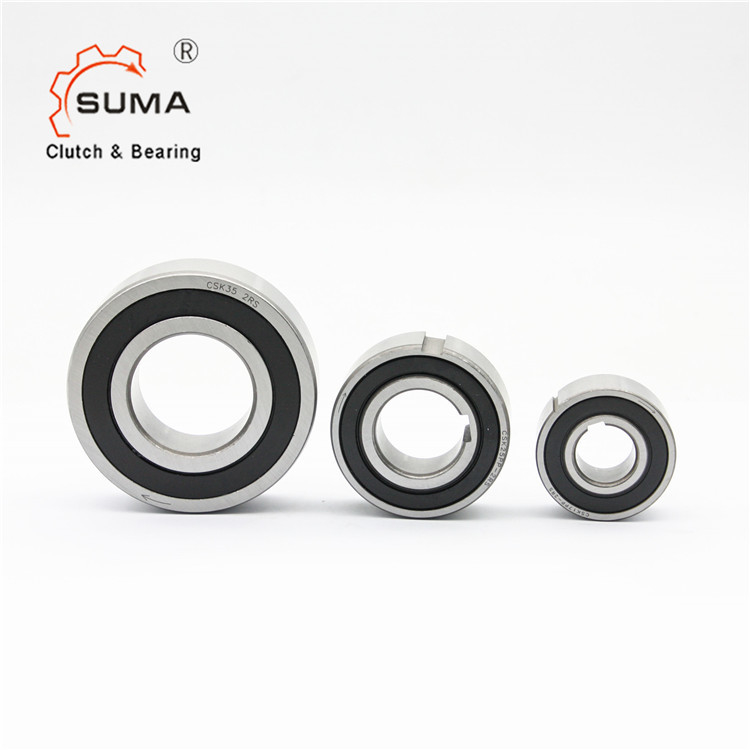

One Way Sprag Clutch Bearing CSK6001 CSK6002 CSK6003 CSK6004 2

One Way Sprag Clutch Bearing CSK6001 CSK6002 CSK6003 CSK6004 3

One Way Sprag Clutch Bearing CSK6001 CSK6002 CSK6003 CSK6004 4
