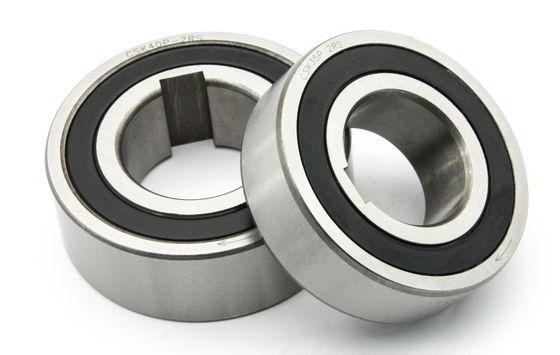

CSK17P CSK6203P Electric Bicycle One Way Clutch Bearings 17*40*12MM
  • CSK17P CSK6203P Electric Bicycle One Way Clutch Bearings 17*40*12MM
CSK17P CSK6203P Electric Bicycle One Way Clutch Bearings 17*40*12MM

CSK17P CSK6203P Electric Bicycle One Way Clutch Bearings 17*40*12MM

Place of Origin CHINA
Brand Name SUMA
Certification ISO
Model Number CSK17P CSK6203P
Product Details
Delivery Time:
5-7 Days
Material:
Gcr15 Bearing Steel
Torque Capacity:
85Nm
Rotation Speed:
5200 RPM
Drag Torque:
2Ncm
Unit Weight:
0.14KG
Package:
White Box + Carton Box
OEM:
Accept
High Light:

Electric Bicycle One Way Clutch Bearings

,

CSK17P One Way Clutch Bearings

,

Sprag Clutch Bearing 17X40X12MM

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD2.2-USD2.9 PER PIECE
Packaging Details
White Box + Carton Box + Wooden Pallet
Payment Terms
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability
20000PCS PER WEEK
Product Description

          CSK17P CSK6203P Electric Bicycle One Way Clutch Bearings 17*40*12MM

Fearures



In addition to the basic CSK model, type CSK..P features a keyway on the inner race.

For this reason it can be keyed to a shaft to k6 tolerance. The outer race must still be pressed into a rigid housing to N6 tolerance.

CSK..PP features a keyway on both the inner and outer race. The recommended mounting tolerances are h6 on the shaft and H6 in a rigid housing. Please contact us when either the ambient or the operating temperature is not within the range +5°C to +60°C.

The CSK One Way Bearing Series has a small radial section height and is also commonly known as a One Way Bearing or Anti-Reverse Bearing. One Way Bearings are designed to transmit torque between the shaft and housing in one direction and allow free motion in the opposite direction.

Dimensions and Capacities

CSK.P PP .jpg



Type Size Bearing series   Bearing loads Weight Drag torque
dynamic static
CSK..P d   TKN1) nmax D L b t C C0 TR
[mm]   [Nm] [min-1] [mm] [mm] [mm] [mm] [kN] [kN] [kg] [Ncm]
12 6201 9.3 10000 32 10     6.1 2.77 0.04 0.7
15 6202 17 8400 35 11     7.4 3.42 0.06 0.9
17 6203 30 7350 40 12     7.9 3.8 0.07 1.1
20 6204 50 6000 47 14     9.4 4.46 0.11 1.3
25 6205 85 5200 52 15     10.7 5.46 0.14 2
30 6206 138 4200 62 16     11.7 6.45 0.21 4.4
35 6207 175 3600 72 17     12.6 7.28 0.3 5.8
40 – 325 3000 80 22     15.54 12.25 0.5 7
CSK..PP 15 6202 17 8400 35 11 2 0.6 7.4 3.42 0.06 0.9
17 6203 30 7350 40 12 2 1 7.9 3.8 0.07 1.1
20 6204 50 6000 47 14 3 1.5 9.4 4.46 0.11 1.3
25 6205 85 5200 52 15 6 2 10.7 5.46 0.14 2
30 6206 138 4200 62 16 6 2 11.7 6.45 0.21 4.4
35 6207 175 3600 72 17 8 2.5 12.6 7.28 0.3 5.8
40 – 325 3000 80 22 10 3 15.54 12.25 0.5 7
CSK..P-2RS 12 – 9.3 10000 32 14     6.1 2.77 0.05 3
15 – 17 8400 35 16     7.4 3.42 0.07 4
17 – 30 7350 40 17     7.9 3.8 0.09 5.6
20 – 50 6000 47 19     9.4 4.46 0.145 6
25 – 85 5200 52 20     10.7 5.46 0.175 6
30 – 138 4200 62 21     11.7 6.45 0.27 7.5
35 – 175 3600 72 22     12.6 7.28 0.4 8.2
40 – 325 3000 80 27     15.54 12.25 0.6 10
Mounting and Coupling


PRODUCT PICTURE

CSK17P CSK6203P Electric Bicycle One Way Clutch Bearings 17*40*12MM 2

CSK17P CSK6203P Electric Bicycle One Way Clutch Bearings 17*40*12MM 3

CSK17P CSK6203P Electric Bicycle One Way Clutch Bearings 17*40*12MM 4
