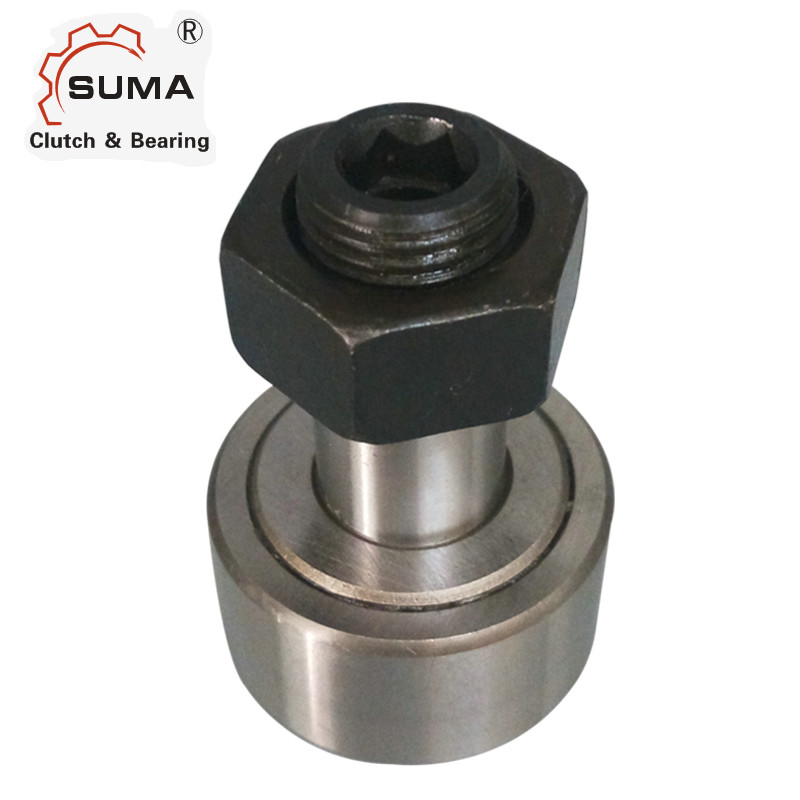

MCFR Series Caged Type Cam Follower Bearings with Stud MCFR16 MCFR16SBX
Features of Cage Type Cam Follower
The outer ring of theMCFR Cam Follower bearing adopts a full complement cylindrical roller bearing with a thick outer ring wall. The outer diameter of the roller has a cylindrical and arc shape, which can be designed to match the raceway surface according to the application. With this outer ring, the rollers can roll directly on the raceway and can withstand heavier loads and shock loads.
Cam roller bearing consists of main roller, side roller, shaft head and cover plate.
Technical Parameter of MCFR Cage Type Cam Follower
|
UNSEALED BRG. NO. (1) |
SEALED BRG. NO. (1) |
ROLLER DIA. RD NOM. (2) |
ROLLER WIDTH W +0.00 -0.12 |
STUD DIA. SD NOM. (3) |
STUD L'GTH. SL NOM. |
OVERALL LENGTH L NOM. |
ENDPLATE EXTENSION E NOM. |
THREAD |
THREAD LENGTH TL MIN. |
OIL HOLE |
|
|
(HC) NOM. |
(HD) NOM. |
||||||||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | |||
| MCFR-13 | MCFR-13-S | 13 | 9 | 5 | 13 | 23 | 0.6 | M5x0.8 | 7.5 | - | - |
|
MCFR-16 MCF-16 |
MCFR-16-S MCF-16-S |
16 | 11 | 6 | 16 | 28 | 0.6 | M6x1 | 9 | - | - |
|
MCFR-19 MCF-19 |
MCFR-19-S MCF-19-S |
19 | 11 | 8 | 20 | 32 | 0.6 | M8x1.25 | 11 | - | - |
|
MCFR-22 MCF-22 |
MCFR-22-S MCF-22-S |
22 | 12 | 10 | 23 | 36 | 0.6 | M10x1 | 12 | - | - |
|
MCFR-22A MCF-22A |
MCFR-22A-S MCF-22A-S |
22 | 12 | 10 | 23 | 36 | 0.6 | M10x1.25 | 13 | - | - |
|
MCFR-26 MCF-26 |
MCFR-26-S MCF-26-S |
26 | 12 | 10 | 23 | 36 | 0.6 | M10x1 | 12 | - | - |
|
MCFR-26A MCF-26A |
MCFR-26A-S MCF-26A-S |
26 | 12 | 10 | 23 | 36 | 0.6 | M10x1.25 | 13 | - | - |
|
MCFR-30 MCF-30 |
MCFR-30-S MCF-30-S |
30 | 14 | 12 | 25 | 40 | 0.6 | M12x1.5 | 14 | 6 | 3 |
|
MCFR-32 MCF-32 |
MCFR-32-S MCF-32-S |
32 | 14 | 12 | 25 | 40 | 0.6 | M12x1.5 | 14 | 6 | 3 |
|
MCFR-35 MCF-35 |
MCFR-35-S MCF-35-S |
35 | 18 | 16 | 32.5 | 52 | 0.8 | M16x1.5 | 18 | 8 | 3 |
|
MCFR-40 MCF-40 |
MCFR-40-S MCF-40-S |
40 | 20 | 18 | 36.5 | 58 | 0.8 | M18x1.5 | 19 | 8 | 3 |
|
MCFR-40A MCF-40A |
MCFR-40A-S MCF-40A-S |
40 | 20 | 18 | 36.5 | 58 | 0.8 | M18x1.5 | 20 | 10 | 3 |
|
MCFR-47 MCF-47 |
MCFR-47-S MCF-47-S |
47 | 24 | 20 | 40.5 | 66 | 0.8 | M20x1.5 | 21 | 9 | 4 |
|
MCFR-47A MCF-47A |
MCFR-47A-S MCF-47A-S |
47 | 24 | 20 | 40.5 | 66 | 0.8 | M20x1.5 | 22 | 12 | 4 |
|
MCFR-52 MCF-52 |
MCFR-52-S MCF-52-S |
52 | 24 | 20 | 40.5 | 66 | 0.8 | M20x1.5 | 21 | 9 | 4 |
|
MCFR-52A MCF-52A |
MCFR-52A-S MCF-52A-S |
52 | 24 | 20 | 40.5 | 66 | 0.8 | M20x1.5 | 22 | 12 | 4 |
|
MCFR-62 MCF-62 |
MCFR-62-S MCF-62-S |
62 | 29 | 24 | 49.5 | 80 | 0.8 | M24x1.5 | 25 | 11 | 4 |
|
MCFR-62A MCF-62A |
MCFR-62A-S MCF-62A-S |
62 | 29 | 24 | 49.5 | 80 | 0.8 | M24x1.5 | 25 | 12 | 4 |
|
MCFR-72 MCF-72 |
MCFR-72-S MCF-72-S |
72 | 29 | 24 | 49.5 | 80 | 0.8 | M24x1.5 | 25 | 11 | 4 |
|
MCFR-72A MCF-72A |
MCFR-72A-S MCF-72A-S |
72 | 29 | 24 | 49.5 | 80 | 0.8 | M24x1.5 | 25 | 12 | 4 |
|
MCFR-80 MCF-80 |
MCFR-80-S MCF-80-S |
80 | 35 | 30 | 63 | 100 | 1 | M30x1.5 | 32 | 15 | 4 |
|
MCFR-85 MCF-85 |
MCFR-85-S MCF-85-S |
85 | 35 | 30 | 63 | 100 | 1 | M30x1.5 | 32 | 15 | 4 |
|
MCFR-90 MCF-90 |
MCFR-90-S MCF-90-S |
90 | 35 | 30 | 63 | 100 | 1 | M30x1.5 | 32 | 15 | 4 |
| SERIES | CONSTRUCTION FEATURES |
|
MCF MCFE MCF-X MCF-B, MCF-BX MCF-S, MCF-SBX MCFR MCFRE MCFR-X MCFR-B, MCFR-BX MCFR-S, MCFR-SBX MCFD MCFDE MCFD-X |
Full complement of needle rollers With eccentric collar With cylindrical outside diameter With hexagonal hole With seals Caged needle rollers With eccentric collar With cylindrical outside diameter With hexagonal hole With seals Full complement cylindrical rollers With eccentric collar With cylindrical outside diameter |
