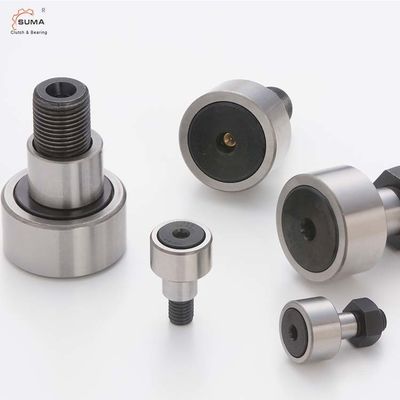

CCFE-SB Series Eccentric Stud Cam Follower Bearings CCFH-1 3/4-SB
Technical Datas
Dimensions and Capacities
|
BRG. NO. |
ROLLER DIA. (RD) +.000 -.001 |
ROLLER WIDTH (W) +.000 -.005 |
BUSH. L'GTH. (G*) +.000 -.010 |
BUSH. DIA. (BD) ±.001 |
STUD L'GTH. (SL) |
MIN. THR'D L'GTH. (TL) |
FINE THR'DS. |
ECC. |
LUB. FIT- TING SIZE (F) |
**RECOM. CLAMPING TORQUE LBS.- IN. |
MAX. STATIC CAPACITY LBS. |
BASIC DYN. RATING LBS. |
| CCFE-1/2-N-SB | .500 | .344 | .250 | .250 | 1/2 | 1/4 | 10-32 | .010 | - | 15 | 720 | 620 |
| CCFE-1/2-SB | .500 | .375 | .375 | .250 | 5/8 | 1/4 | 10-32 | .010 | - | 15 | 790 | 680 |
| CCFE-9/16-SB | .5625 | .375 | .375 | .250 | 5/8 | 1/4 | 10-32 | .010 | - | 15 | 790 | 680 |
| CCFE-5/8-SB | .625 | .4375 | .437 | .375 | 3/4 | 5/16 | 1/4-28 | .015 | - | 35 | 1215 | 955 |
| CCFE-11/16-SB | .6875 | .4375 | .437 | .375 | 3/4 | 5/16 | 1/4-28 | .015 | - | 35 | 1215 | 955 |
| CCFE-3/4-SB | .750 | .500 | .500 | .500 | 7/8 | 3/8 | 3/8-24 | .015 | 3/16 | 95 | 2065 | 1660 |
| CCFE-7/8-SB | .875 | .500 | .500 | .500 | 7/8 | 3/8 | 3/8-24 | .015 | 3/16 | 95 | 2065 | 1660 |
| CCFE-1-SB | 1.000 | .625 | .500 | .625 | 1 | 1/2 | 7/16-20 | .030 | 3/16 | 250 | 3060 | 2225 |
| CCFE-1 1/8-SB | 1.125 | .625 | .500 | .625 | 1 | 1/2 | 7/16-20 | .030 | 3/16 | 250 | 3060 | 2225 |
| CCFE-1 1/4-SB | 1.250 | .750 | .625 | .687 | 1 1/4 | 5/8 | 1/2-20 | .030 | 3/16 | 350 | 4250 | 3930 |
| CCFE-1 3/8-SB | 1.375 | .750 | .625 | .687 | 1 1/4 | 5/8 | 1/2-20 | .030 | 3/16 | 350 | 4250 | 3930 |
| CCFE-1 1/2-SB | 1.500 | .875 | .750 | .875 | 1 1/2 | 3/4 | 5/8-18 | .030 | 3/16 | 650 | 5640 | 4840 |
| CCFE-1 5/8-SB | 1.625 | .875 | .750 | .875 | 1 1/2 | 3/4 | 5/8-18 | .030 | 3/16 | 650 | 5640 | 4840 |
| CCFE-1 3/4-SB | 1.750 | 1.000 | .875 | 1.000 | 1 3/4 | 7/8 | 3/4-16 | .030 | 3/16 | 1250 | 7920 | 6385 |
| CCFE-1 7/8-SB | 1.875 | 1.000 | .875 | 1.000 | 1 3/4 | 7/8 | 3/4-16 | .030 | 3/16 | 1250 | 7920 | 6385 |
| CCFE-2-SB | 2.000 | 1.250 | 1.000 | 1.187 | 2 | 1 | 7/8-14 | .030 | 3/16 | 1500 | 10570 | 8090 |
| CCFE-2 1/4-SB | 2.250 | 1.250 | 1.000 | 1.187 | 2 | 1 | 7/8-14 | .030 | 3/16 | 1500 | 10570 | 8090 |
| CCFE-2 1/2-SB | 2.500 | 1.500 | 1.125 | 1.375 | 2 1/4 | 1 1/8 | 1-14 | .030 | 3/16 | 2250 | 16450 | 11720 |
| CCFE-2 3/4-SB | 2.750 | 1.500 | 1.125 | 1.375 | 2 1/4 | 1 1/8 | 1-14 | .030 | 3/16 | 2250 | 16450 | 11720 |
| CCFE-3-SB | 3.000 | 1.750 | 1.250 | 1.750 | 2 1/2 | 1 1/4 | 1 1/4-12 | .060 | ① 1/4 | 3450 | 24910 | 15720 |
| CCFE-3 1/4-SB | 3.250 | 1.750 | 1.250 | 1.750 | 2 1/2 | 1 1/4 | 1 1/4-12 | .060 | ① 1/4 | 3450 | 24910 | 15720 |
| CCFE-3 1/2-SB | 3.500 | 2.000 | 1.375 | 1.812 | 2 3/4 | 1 3/8 | 1 3/8-12 | .060 | ① 1/4 | 4200 | 31625 | 22800 |
| CCFE-4-SB | 4.000 | 2.250 | 2.000 | 2.000 | 3 1/2 | 1 1/2 | 1 1/2-12 | .060 | ① 1/4 | 5000 | 44770 | 29985 |
Features
Eccentric Stud Cam Follower Bearings includes multiple compact structure, high rotating accuracy, large varieties, broad adaptability and easy installation and it can bear high radial load and certain shock load and is widely used in machine tool, metallurgical, textile and printing machinery, processing lines and etc.
Eccentric Stud Cam Follower Bearings is composed of machined thick-wall outer ring, needle rollers or cylindrical roller sets, or cage guidance or full complement needle roller, inner ring or bolt and seal.
