Stud Type Cam Follower
>
|
| Place of Origin | CHINA |
| Brand Name | SUMA |
| Certification | ISO SGS |
| Model Number | CFH-5/8-SB |

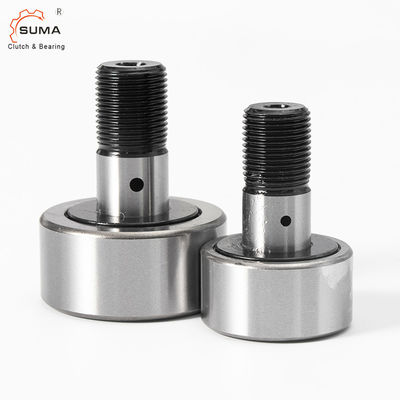

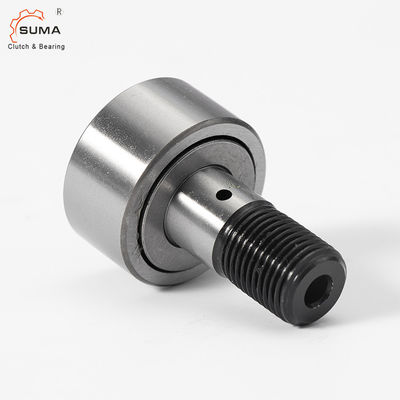

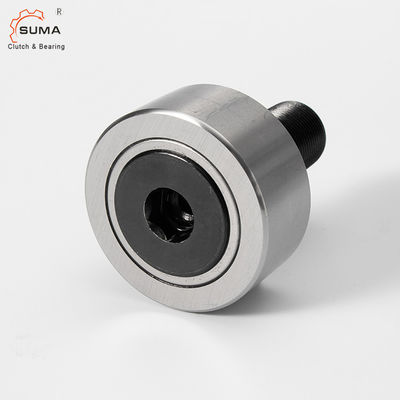

CFH-B & CFH-SB Series CFH-5/8-SB Track Roller Camshaft Follower with Hex Hole
Features of Camshaft Follower
CFH-1-B With Hex Hole Heavy duty cam follower
CFH-1-SB Seald and Hex Hole Heavy duty cam follower .
The typical functions of a cam follower are to provide anti-friction support of linear movement or to follow the surface of a cam.
SUMA Stud Cam Follower was designed to withstand the intermittent shock, loading and precision requirements associated with these applications.
Application of Camshaft Follower
| Food and Beverage | Packaging equipment | Unit material handling |
| Auto Plants | Oil Drilling | Steel Mills |
| Texitiles / Printing | Automation equipment | Machine Tools |
Technical Datas of Camshaft Follower
Dimensions and Capacities
| INSEALED BRG. NO. |
SEALED BRG. NO. |
ROLLER DIA (RD) |
ROLLER WIDTH (W) |
STUD DIA (SD) |
STUD LENGTH (SL) |
MIN. THREAD LENGTH (TL) |
FINE THREAD |
OIL HOLE | LUB FITTING SIZE (F) |
RRCOM. CL AMPING TORQUE LBS. IN |
MAX STATIC CAPACITY LBS. |
BASIC DYN. RATING LBS. |
|
| HOLE CENTER (HC) |
HOLE DIA(HD) |
||||||||||||
| CFH-1/2-B | CFH-1/2-B | 0.500 | 0.375 | 0.250 | 5/8 | 1/4 | 1/4-28 | 35 | 1580 | 680 | |||
| CFH-9/16-B | CFH-9/16-B | 0.5625 | 0.375 | 0.250 | 5/8 | 1/4 | 1/4-28 | 35 | 1580 | 680 | |||
| CFH-5/8-B | CFH-5/8-B | 0.625 | 0.4375 | 0.3125 | 3/4 | 5/16 | 5/16-24 | 90 | 2480 | 955 | |||
| CFH-11/16-B | CFH-11/16-B | 0.6875 | 0.4375 | 0.3125 | 3/4 | 5/16 | 5/16-24 | 90 | 2480 | 955 | |||
| CFH-3/4-B | CFH-3/4-B | 0.750 | 0.500 | 0.4375 | 7/8 | 3/8 | 7/16-20 | 1/4 | 3/32 | 3/16 | 250 | 4130 | 1660 |
| CFH-7/8-B | CFH-7/8-B | 0.875 | 0.500 | 0.4375 | 7/8 | 3/8 | 7/16-20 | 1/4 | 3/32 | 3/16 | 250 | 4130 | 1660 |
| CFH-1-B | CFH-1-B | 1.000 | 0.625 | 0.625 | 1 | 1/2 | 5/8-18 | 1/4 | 3/32 | 3/16 | 650 | 6120 | 2225 |
| CFH-1 1/8-B | CFH-1 1/8-B | 1.1250 | 0.625 | 0.625 | 1 | 1/2 | 5/8-18 | 1/4 | 3/32 | 3/16 | 650 | 6120 | 2225 |
| CFH-1 1/4-B | CFH-1 1/4-B | 1.250 | 0.750 | 0.750 | 1 1/4 | 5/8 | 3/4-16 | 5/16 | 3/32 | 3/16 | 1250 | 8500 | 3930 |
| CFH-1 3/8-B | CFH-1 3/8-B | 1.375 | 0.750 | 0.750 | 1 1/4 | 5/8 | 3/4-16 | 5/16 | 3/32 | 3/16 | 1250 | 8500 | 3930 |
| CFH-1 1/2-B | CFH-1 1/2-B | 1.500 | 0.875 | 0.875 | 1 1/2 | 3/4 | 7/8-14 | 3/8 | 3/32 | 3/16 | 1500 | 11280 | 4840 |
| CFH-1 5/8-B | CFH-1 5/8-B | 1.625 | 0.875 | 0.875 | 1 1/2 | 3/4 | 7/8-14 | 3/8 | 3/32 | 3/16 | 1500 | 11280 | 4840 |
| CFH-1 3/4-B | CFH-1 3/4-B | 1.750 | 1.000 | 1.000 | 1 3/4 | 7/8 | 1-14 | 7/16 | 3/32 | 3/16 | 2250 | 15840 | 6385 |
| CFH-1 7/8-B | CFH-1 7/8-B | 1.875 | 1.000 | 1.000 | 1 3/4 | 7/8 | 1-14 | 7/16 | 3/32 | 3/16 | 2250 | 15840 | 6385 |
| CFH-2-B | CFH-2-B | 2.000 | 1.125 | 1.125 | 2 | 1 | 1 1/8-12 | 1/2 | 1/8 | 3/16 | 2800 | 21140 | 8090 |
| CFH-2 1/4-B | CFH-2 1/4-B | 2.250 | 1.125 | 1.125 | 2 | 1 | 1 1/8-12 | 1/2 | 1/8 | 3/16 | 2800 | 21140 | 8090 |
| CFH-2 1/2-B | CFH-2 1/2-B | 2.500 | 1.250 | 1.250 | 2 1/4 | 1 1/8 | 1 1/4-12 | 9/16 | 1/8 | 3/16 | 3450 | 32900 | 11720 |
| CFH-2 3/4-B | CFH-2 3/4-B | 2.750 | 1.250 | 1.250 | 2 1/4 | 1 1/8 | 1 1/4-12 | 9/16 | 1/8 | 3/16 | 3450 | 32900 | 11720 |
| CFH-3-B | CFH-3-B | 3.000 | 1.500 | 1.500 | 2 1/2 | 1 1/4 | 1 1/2-12 | 5/8 | 1/8 | 1/4 | 5000 | 49820 | 15720 |
| CFH-3 1/4-B | CFH-3 1/4-B | 3.250 | 1.500 | 1.500 | 2 1/2 | 1 1/4 | 1 1/2-12 | 5/8 | 1/8 | 1/4 | 5000 | 49820 | 15720 |
| CFH-3 1/2-B | CFH-3 1/2-B | 3.500 | 1.750 | 1.750 | 2 3/4 | 1 3/8 | 1 3/4-12 | 11/16 | 1/8 | 1/4 | 5000 | 63250 | 22800 |
| CFH-4-B | CFH-4-B | 4.000 | 2.000 | 2.000 | 3 1/2 | 1 1/2 | 2-12 | 3/4 | 1/8 | 1/4 | 5000 | 89540 | 29985 |
Pictures of Camshaft Follower
FAQ
Q: How do you pack the cam follower ?
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the goods in time?
