Stud Type Cam Follower
>
|
| Place of Origin | CHINA |
| Brand Name | SUMA |
| Certification | ISO SGS |
| Model Number | CFE-3 1/4-S |

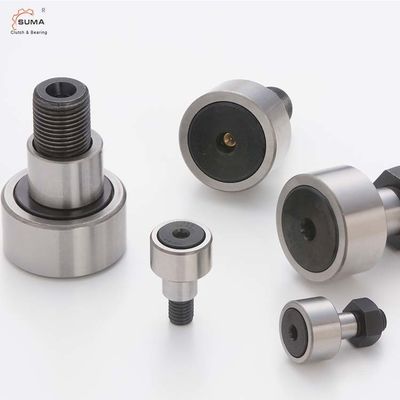

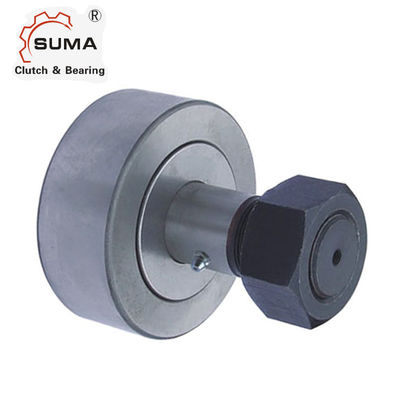

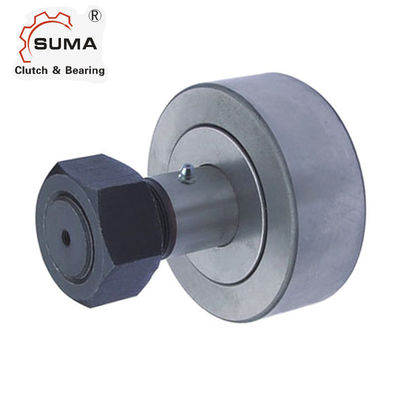

CFE-3 1/4-S Eccentric Cage Guidance Sealed Stud Cam Follower
Features
It includes multiple compact structure, high rotating accuracy, large varieties, broad adaptability and easy installation and it can bear high radial load and certain shock load and is widely used in machine tool, metallurgical, textile and printing machinery, processing lines and etc.
Technical Datas
| Product name | CFE-3 1/4-S Stud Type Track Roller |
| Model | CFE-3 1/4-S |
| Material | GCr15 |
| Package | Carton Box / Wooden box, pulley, etc |
| Payment terms | TT. L/C, D/A,D/P,Western Union |
| Delivery time | 2-4 days for the sample, 7 days for big order |
Dimensions and Capacities
| Unsealed No. |
Sealed No. |
Roller Dia. |
Roller Width |
Bush Lgth |
Bush Dia. |
Stud Lgth |
Min Thrd Lgth |
Fine Thrds |
Lub Fitting Size |
| CFE-1/2 | CFE-1/2-S | 500 | 375 | 375 | 250 | 5/8 | 1/4 | 10-32 | 1/8 |
| CFE-9/16 | CFE-9/16-S | 5625 | 375 | 375 | 250 | 5/8 | 1/4 | 10-32 | 1/8 |
| CFE-5/8 | CFE-5/8-S | 625 | 4375 | 437 | 375 | 3/4 | 5/16 | 1/4-28 | 1/8 |
| CFE-11/16 | CFE-11/16-S | 6875 | 4375 | 437 | 375 | 3/4 | 5/16 | 1/4-28 | 1/8 |
| CFE-3/4 | CFE-3/4-S | 750 | 500 | 500 | 500 | 7/8 | 3/8 | 318-24 | 3/16 |
| CFE-7/8 | CFE-7/8-S | 875 | 500 | 500 | 500 | 7/8 | 3/8 | 3/8-24 | 3/16 |
| CFE-1 | CFE-1-S | 1.000 | 625 | 500 | 625 | 1 | 1/2 | 7/16-20 | 3/16 |
| CFE-1 1/8 | CFE-1 1/8-S | 1.125 | 625 | 500 | 625 | 1 | 1/2 | 7/16-20 | 3/16 |
| CFE-1 1/4 | CFE-1 1/4-S | 1.250 | 750 | 625 | 687 | 1 1/4 | 5/8 | 1/2-20 | 3/16 |
| CFE-1 3/8 | CFE-1 3/8-S | 1.375 | 750 | 625 | 687 | 1 1/4 | 5/8 | 1/2-20 | 3/16 |
| CFE-1 1/2 | CFE- 1 1/2-S | 1.500 | 875 | 750 | 875 | 1 1/2 | 3/4 | 5/8-18 | 3/16 |
| CFE-1 5/8 | CFE-1 5/8-S | 1.625 | 875 | 750 | 875 | 1 1/2 | 3/4 | 518-18 | 3/16 |
| CFE-1 3/4 | CFE-1 3/4-S | 1.750 | 1.000 | 875 | 1.000 | 1 3/4 | 7/8 | 3/4-16 | 3/16 |
| CFE-1 7/8 | CFE-1 7/8-S | 1.875 | 1.000 | 875 | 1.000 | 1 3/4 | 7/8 | 3/4-16 | 3/16 |
| CFE-2 | CFE-2-S | 2.000 | 1.250 | 1.000 | 1.187 | 2 | 1 | 7/8-14 | 3/16 |
| CFE-2 1/4 | CFE-2 1/4-S | 2.250 | 1.250 | 1.000 | 1.187 | 2 | 1 | 7/8-14 | 3/16 |
| CFE-2 1/2 | CFE-2 1/2-S | 2.500 | 1.500 | 1.125 | 1.375 | 2 1/4 | 1 1/8 | 1－14 | 3/16 |
| CFE-2 3/4 | CFE-2 3/4-S | 2.750 | 1.500 | 1.125 | 1.375 | 2 1/4 | 1 1/8 | 1-14 | 3/16 |
| CFE-3 | CFE-3-S | 3.000 | 1.750 | 1.250 | 1.75 | 2 1/2 | 1 1/4 | 1 1/4-12 | 1/4 |
| CFE-3 1/4 | CFE-3 1/4-S | 3.250 | 1.750 | 1.250 | 1.75 | 2 1/2 | 1 1/4 | 1 1/4-12 | 1/4 |
| CFE-3 1/2 | CFE-3 1/2-S | 3.500 | 2.000 | 1.375 | 1.812 | 2 3/4 | 1 3/8 | 1 3/8-12 | 1/4 |
| CFE-4 | CFE-4-S | 4 .000 | 2.250 | 2.000 | 2.000 | 3 1/2 | 1 1/2 | 1 1/2-12 | 1/4 |
It is composed of machined thick-wall outer ring, needle rollers or cylindrical roller sets, or cage guidance or full complement needle roller, inner ring or bolt and seal.
