CF-1/2-N-S Sealed GCr15 Stud Type Track Roller

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: CF-1/2-N-SB
Minimum Order Quantity: 10PCS
Price: USD2.5-USD3.2 PER PIECE
Packaging Details: Carton Box / Wooden Box
Delivery Time: 2-5 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability: 100000 PCS PER MONTH
Product Name: Cam Follower Bearings CF-1/2-N-SB Material: Bearing Steel GCr15
Outer Race Surface: Cylindrical Package: Each In Plastic Bag + Carton Box
Warranty: 6 Months Port: ShangHai / NingBo
OEM: Accept Delivery Time: 3-5 Days
High Light:

Sealed Stud Type Track Roller

,

GCr15 Stud Type Track Roller

,

CF-1/2-N-SB Stud Cam Follower

CF-1/2-N-S Sealed GCr15 Stud Type Track Roller

Features

 Stud style cam followers usually have a standard sized stud, but a heavy stud is available for increased static load capacity.

For heavy-duty applications a roller design can be used. This employs two rows of rollers of larger diameter than used in needle roller cam followers to increase the dynamic load capacity and provide some thrust capabilities. This design can support higher speeds than the full complement design.



Technical Datas

Product name CF-1/2-N-S Stud Type Cam Follower Bearing
Model CF-1/2-N-S
Material GCr15
Package Carton Box / Wooden box, pulley, etc
Payment terms TT. L/C, D/A,D/P,Western Union
Delivery time 2-4 days for the sample, 7 days for big order

Dimensions and Capacities
CF-1/2-N-S Sealed GCr15 Stud Type Track Roller 0

Unseal No. Sealed No. Roller Dia. (RD) Roller Width(W)

Stud Dia.

(SD)

Stud

Lgth

(SL)

Min Thrd Lgth (TL) Fine Threads Lub Fiting Size (F)



Toque Lbs

CF-1/2-N CF-1/2-N-S 0.5 0.344 0.19 1/2 1/4 10-32 1/8 15
CF-1/2 CF-1/2-S 0.5 0.375 0.19 5/8 1/4 10-32 1/8 15
CF-9/16 CF-9/16-S 0.5625 0.375 0.19 5/8 1/4 10-32 1/8 15
CF-5/8-N CF-5/8-N-S 0.625 0.406 0.25 5/8 5/16 1/4-28 1/8 35
CF-5/8 CF-5/8-S 0.625 0.4375 0.25 3/4 5/16 1/4-28 1/8 35
CF-11/16 CF-11/16-S 0.6875 0.4375 0.25 3/4 5/16 1/4-28 1/8 95
CF-3/4 CF-3/4-S 0.75 0.5 0.375 7/8 3/8 3/8-24 3/16 95
CF-7/8 CF-7/8-S 0.875 0.5 0.375 7/8 3/8 3/8-24 3/16 250
CF-1 CF-1-S 1 0.625 0.4375 1 1/2 7/16-20 3/16 250
CF-1 1/8 CF-1 1/8-S 1.125 0.625 0.4375 1 1/2 7/16-20 3/16 350
CF-1 1/4 CF-1 1/4-S 1.25 0.75 0.5 1 1/4 5/8 1/2-20 3/16 350
CF-1 3/8 CF-1 3/8-S 1.375 0.75 0.5 1 1/4 5/8 1/2-20 3/16 650
CF-1 1/2 CF-1 1/2-S 1.5 0.875 0.625 1 1/2 3/4 5/8-18 3/16 650
CF-1 5/8 CF-1 5/8-S 1.625 0.875 0.625 1 1/2 3/4 5/8-18 3/16 1250
CF-1 3/4 CF-1 3/4-S 1.75 1 0.75 1 3/4 7/8 3/4-16 3/16 1250
CF-1 7/8 CF-1 7/8-S 1.875 1 0.75 1 3/4 7/8 3/4-16 3/16 1500
CF-2 CF-2-S 2 1.25 0.875 2 1 7/8-14 3/16 1500
CF-2 1/4 CF-2 1/4-S 2.25 1.25 0.875 2 1 7/8-14 3/16 2250
CF-2 1/2 CF-2 1/2-S 2.5 1.5 1 2 1/4 1 1/8 1-14 3/16 2250
CF-2 3/4 CF-2 3/4-S 2.75 1.5 1 2 1/4 1 1/8 1-14 3/16 3450
CF-3 CF-3-S 3 1.75 1.25 2 1/2 1 1/4 1 1/4-12 1/4 3450
CF-3 1/4 CF-3 1/4-S 3.25 1.75 1.25 2 1/2 1 1/4 1 1/4-12 1/4 4200
CF-3 1/2 CF-3 1/2-S 3.5 2 1.375 2 3/4 1 3/8 1 3/8-12 1/4 5000
CF-4 CF-4-S 4 2.25 1.5 3 1/2 1 1/2 1 1/2-12 1/4 5000
  CF-5-S 5 2.75 2 5 1/16 2 9/16 2-12 1/4N.P.T 5000
  CF-6-S 6 3.25 2.5 6 3 2 1/2-12 1/4N.P.T 5000
  CF-7-S 7 3.75 3 7 11/16 4 1/8 3-12 1/4N.P.T 5000
  CF-8-S 8 4.25 3.25 8 1/2 4 1/4 3 1/4-4 1/4N.P.T 5000
  CF-9-S 9 4.75 3.75 9 1/2 4 3/4 3 1/2-4 1/4N.P.T 5000
  CF-10-S 10 5.25 4.25 10 4 3/4 3 1/2-4 1/4N.P.T 5000



Pictures

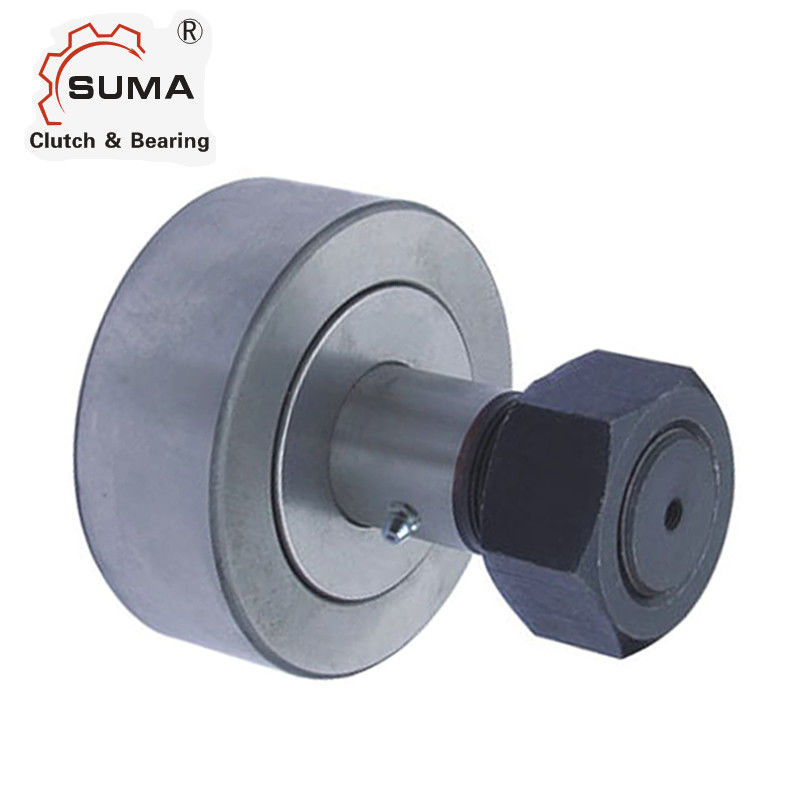

CF-1/2-N-S Sealed GCr15 Stud Type Track Roller 1
CF-1/2-N-S Sealed GCr15 Stud Type Track Roller 2
