Stud Type Cam Follower
Created with Pixso. MCF MCF...S Series Full Complement Of Needle Roller Cam Follower

MCF MCF...S Series Full Complement Of Needle Roller Cam Follower

Brand Name: SUMA
Model Number: MCF MCF...S Series
MOQ: 10PCS
Price: USD2.8-USD6 PER PIECE
Delivery Time: 2-5 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,Paypal
Detail Information
Place of Origin:
CHINA
Certification:
ISO SGS
Product Name:
Needle Roller Cam Follower
Material:
Bearing Steel GCr15
Outer Race Surface:
Cylindrical
Package:
Each In Plastic Bag + Carton Box
Warranty:
6 Months
Port:
ShangHai / NingBo
OEM:
Accept
Delivery Time:
2-3Days
Packaging Details:
Carton Box / Wooden Box
Supply Ability:
100000 PCS PER MONTH
Highlight:

Needle Roller Cam Follower

,

GCr15 Needle Roller Cam Follower

,

MCF Stud Type Cam Follower

Product Description



MCF MCF...S Series Full Complement of Needle Roller Cam Follower





Features of Needle Roller Cam Follower



SERIES CONSTRUCTION FEATURES

MCF

MCFE

MCF-X

MCF-B, MCF-BX MCF-S, MCF-SBX MCFR

MCFRE

MCFR-X

MCFR-B, MCFR-BX MCFR-S, MCFR-SBX MCFD

MCFDE

MCFD-X



Full complement of needle rollers

With eccentric collar

With cylindrical outside diameter

With hexagonal hole

With seals

Caged needle rollers

With eccentric collar

With cylindrical outside diameter

With hexagonal hole

With seals

Full complement cylindrical rollers

With eccentric collar

With cylindrical outside diameter



Application of Needle Roller Cam Follower

MCF MCF...S Series Full Complement Of Needle Roller Cam Follower 0

UNSEALED

BRG. NO.

(1)

SEALED BRG. NO.

(1)

ROLLER DIA. RD NOM.

(2)

ROLLER

WIDTH W

+0.00

-0.12



STUD DIA.

SD

NOM. (3)

STUD L'GTH.

SL NOM.



OVERALL

LENGTH L

NOM.



ENDPLATE

EXTENSION E

NOM.



THREAD



THREAD

LENGTH TL

MIN.

OIL HOLE

(HC) NOM. (HD) NOM.
mm mm mm mm mm mm mm mm mm
MCFR-13 MCFR-13-S 13 9 5 13 23 0.6 M5x0.8 7.5 - -

MCFR-16

MCF-16

MCFR-16-S MCF-16-S 16 11 6 16 28 0.6 M6x1 9 - -

MCFR-19

MCF-19

MCFR-19-S MCF-19-S 19 11 8 20 32 0.6 M8x1.25 11 - -

MCFR-22

MCF-22

MCFR-22-S MCF-22-S 22 12 10 23 36 0.6 M10x1 12 - -

MCFR-22A

MCF-22A

MCFR-22A-S MCF-22A-S 22 12 10 23 36 0.6 M10x1.25 13 - -

MCFR-26

MCF-26

MCFR-26-S MCF-26-S 26 12 10 23 36 0.6 M10x1 12 - -

MCFR-26A

MCF-26A

MCFR-26A-S MCF-26A-S 26 12 10 23 36 0.6 M10x1.25 13 - -

MCFR-30

MCF-30

MCFR-30-S MCF-30-S 30 14 12 25 40 0.6 M12x1.5 14 6 3

MCFR-32

MCF-32

MCFR-32-S MCF-32-S 32 14 12 25 40 0.6 M12x1.5 14 6 3

MCFR-35

MCF-35

MCFR-35-S MCF-35-S 35 18 16 32.5 52 0.8 M16x1.5 18 8 3

MCFR-40

MCF-40

MCFR-40-S MCF-40-S 40 20 18 36.5 58 0.8 M18x1.5 19 8 3

MCFR-40A

MCF-40A

MCFR-40A-S MCF-40A-S 40 20 18 36.5 58 0.8 M18x1.5 20 10 3

MCFR-47

MCF-47

MCFR-47-S MCF-47-S 47 24 20 40.5 66 0.8 M20x1.5 21 9 4

MCFR-47A

MCF-47A

MCFR-47A-S MCF-47A-S 47 24 20 40.5 66 0.8 M20x1.5 22 12 4

MCFR-52

MCF-52

MCFR-52-S MCF-52-S 52 24 20 40.5 66 0.8 M20x1.5 21 9 4

MCFR-52A

MCF-52A

MCFR-52A-S MCF-52A-S 52 24 20 40.5 66 0.8 M20x1.5 22 12 4

MCFR-62

MCF-62

MCFR-62-S MCF-62-S 62 29 24 49.5 80 0.8 M24x1.5 25 11 4

MCFR-62A

MCF-62A

MCFR-62A-S MCF-62A-S 62 29 24 49.5 80 0.8 M24x1.5 25 12 4

MCFR-72

MCF-72

MCFR-72-S MCF-72-S 72 29 24 49.5 80 0.8 M24x1.5 25 11 4

MCFR-72A

MCF-72A

MCFR-72A-S MCF-72A-S 72 29 24 49.5 80 0.8 M24x1.5 25 12 4

MCFR-80

MCF-80

MCFR-80-S MCF-80-S 80 35 30 63 100 1 M30x1.5 32 15 4

MCFR-85

MCF-85

MCFR-85-S MCF-85-S 85 35 30 63 100 1 M30x1.5 32 15 4

MCFR-90

MCF-90

MCFR-90-S MCF-90-S 90 35 30 63 100 1 M30x1.5 32 15 4

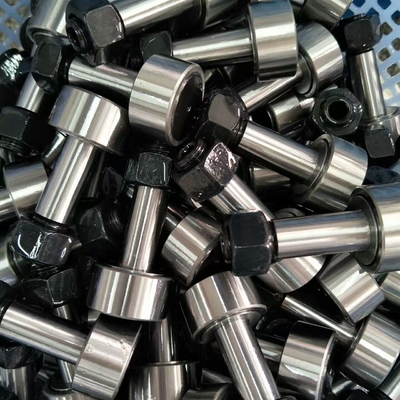

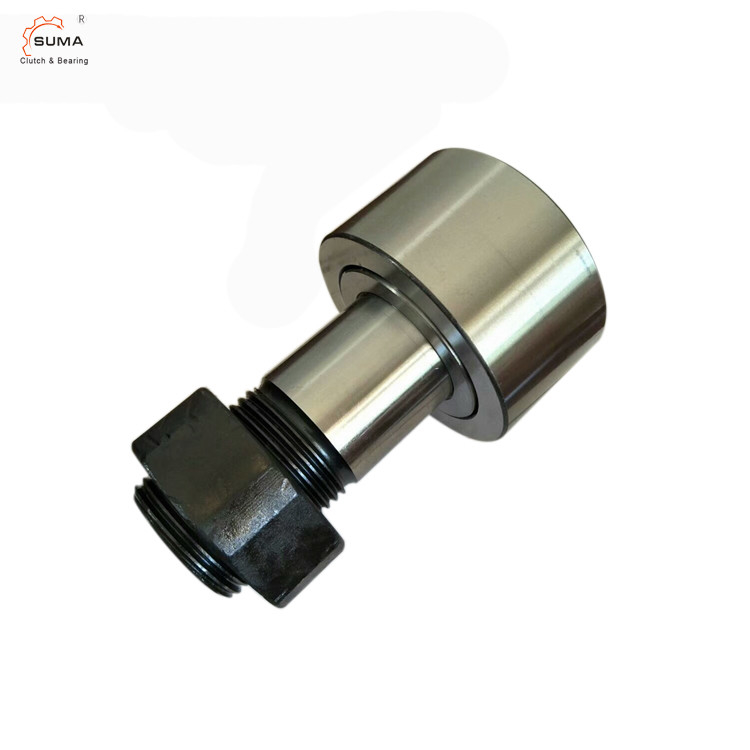

PICTURES of Needle Roller Cam Follower


MCF MCF...S Series Full Complement Of Needle Roller Cam Follower 1

MCF MCF...S Series Full Complement Of Needle Roller Cam Follower 2

FAQ

Q: How do you pack the cam follower ?

  • Total less than 25 KG : Each in plastic bag + 29*28*19CM carton box
  • Total Weight over 100KG : Each in plastic bag + 29*28*19CM carton box + Wooden Box / Wooden Pallet

Q: Can i get the samples from you?

A: It is highly encouraged to ask for the samples for quality check.



Q: Can you promise to deliver the goods in time?

  • Small Quantity: In stock.
  • Medium Items: 5-7 Days
  • Big items: 10-15 Days
