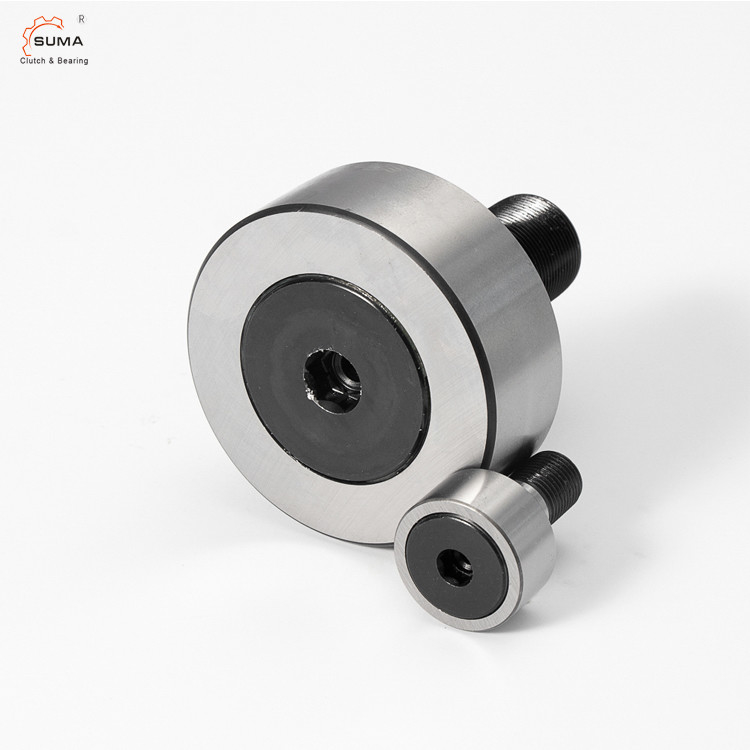

CF Series Cylindrical Outer Ring Slot Type Flat Cam Follower CF24 CF24UU

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: CF24 CF24UU
Minimum Order Quantity: 10PCS
Price: USD5-USD6 PER PIECE
Packaging Details: Carton Box / Wooden Box
Delivery Time: 2-5 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability: 100000 PCS PER MONTH
Product Name: Flat Cam Follower CF24 CF24UU Material: Bearing Steel GCr15
Outer Race Surface: Cylindrical Package: Each In Plastic Bag + Carton Box
Warranty: 6 Months Port: ShangHai / NingBo
OEM: Accept Delivery Time: 3-5 Days
High Light:

Slot Type Flat Cam Follower

,

Cylindrical Outer Ring Flat Cam Follower

,

CF24 Stud Type Cam Follower

                           CF Series Cylindrical Outer Ring Slot Type Flat Cam Follower CF24 CF24UU

Features of Flat Cam Follower

CF Series is a popular type of Cam Follower provided with a driver groove on the head of the stud.
A highly corrosion resistant stainless steel type (symbol M) is also available.

Model CF , Cylindrical Outer Ring, Flat Head Slot Type

Model CF-R , Spherical Outer Ring, Flat Head Slot Type

Dimensions and Capacities of Flat Cam Follower

CF Series Cylindrical Outer Ring Slot Type Flat Cam Follower CF24 CF24UU 0

Stud

Diameter



d

Model

No.

Main dimensions MM

Outer diameter



D

Outer ring width



C

Threaded



G







G1







B

Overall length

B1







B2







B3







C1







d1







d2





rsmin

Shoulder height

f (Min.)

5 CF 5 13 9 M5×0.8 7.5 10 23 13 0.5 3.1 0.3 9.7
6 CF 6 16 11 M6×1 8 12 28 16 0.6 4 0.3 11
8 CF 8 19 11 M8×1.25 10 12 32 20 0.6 4 0.3 13
10 CF 10 22 12 M10×1.25 12 13 36 23 0.6 4 0.3 15
10 CF 10-1 26 12 M10×1.25 12 13 36 23 0.6 4 0.3 15
12 CF 12 30 14 M12×1.5 13 15 40 25 6 0.6 6 3 0.6 20
12 CF 12-1 32 14 M12×1.5 13 15 40 25 6 0.6 6 3 0.6 20
16 CF 16 35 18 M16×1.5 17 19.5 52 32.5 8 0.8 6 3 0.6 24
18 CF 18 40 20 M18×1.5 19 21.5 58 36.5 8 0.8 6 3 1 26
20 CF 20 52 24 M20×1.5 21 25.5 66 40.5 9 0.8 8 4 1 36
20 CF 20-1 47 24 M20×1.5 21 25.5 66 40.5 9 0.8 8 4 1 36
24 CF 24 62 29 M24×1.5 25 30.5 80 49.5 11 0.8 8 4 1 40
24 CF 24-1 72 29 M24×1.5 25 30.5 80 49.5 11 0.8 8 4 1 40
30 CF 30 80 35 M30×1.5 32 37 100 63 15 1 8 4 1 46
30 CF 30-1 85 35 M30×1.5 32 37 100 63 15 1 8 4 1 46
30 CF 30-2 90 35 M30×1.5 32 37 100 63 15 1 8 4 1 46



  Basic load rating

Maximum permissible load

F0

kN

Track load capacity Rotational speed limit * Mass

Model

No.

With cage Full rollers

Cylindrical outer ring



kN

Spherical outer ring



kN

With cage



min-1

Full rollers



min-1



With cage

g



Full rollers

g

C

kN

C0

kN

C

kN

C0

kN

CF 5 3.14 2.77 1.42 2.25 0.53 29000 10.5
CF 6 3.59 3.58 6.94 8.5 2.11 3.43 1.08 25000 11000 18.5 19
CF 8 4.17 4.65 8.13 11.2 4.73 4.02 1.37 20000 8700 28.5 29
CF 10 5.33 6.78 9.42 14.3 5.81 4.7 1.67 17000 7200 45 46
CF 10-1 5.33 6.78 9.42 14.3 5.81 5.49 2.06 17000 7200 60 61
CF 12 7.87 9.79 13.4 19.8 9.37 7.06 2.45 14000 5800 95 97
CF 12-1 7.87 9.79 13.4 19.8 9.37 7.45 2.74 14000 5800 105 107
CF 16 12 18.3 20.6 37.6 17.3 11.2 3.14 10000 4500 170 173
CF 18 14.7 25.2 25.2 51.3 26.1 14.4 3.72 8500 3800 250 255
CF 20 20.7 34.8 33.2 64.8 32.1 23.2 8.23 7000 3400 460 465
CF 20-1 20.7 34.8 33.2 64.8 32.1 21 7.15 7000 3400 385 390
CF 24 30.6 53.2 46.7 92.9 49.5 34.2 10.5 6500 2900 815 820
CF 24-1 30.6 53.2 46.7 92.9 49.5 39.8 12.9 6500 2900 1140 1140
CF 30 45.4 87.6 67.6 145 73.7 52.6 14.9 5000 2300 1870 1870
CF 30-1 45.4 87.6 67.6 145 73.7 56 16.1 5000 2300 2030 2030
CF 30-2 45.4 87.6 67.6 145 73.7 59.3 17.3 5000 2300 2220 2220
