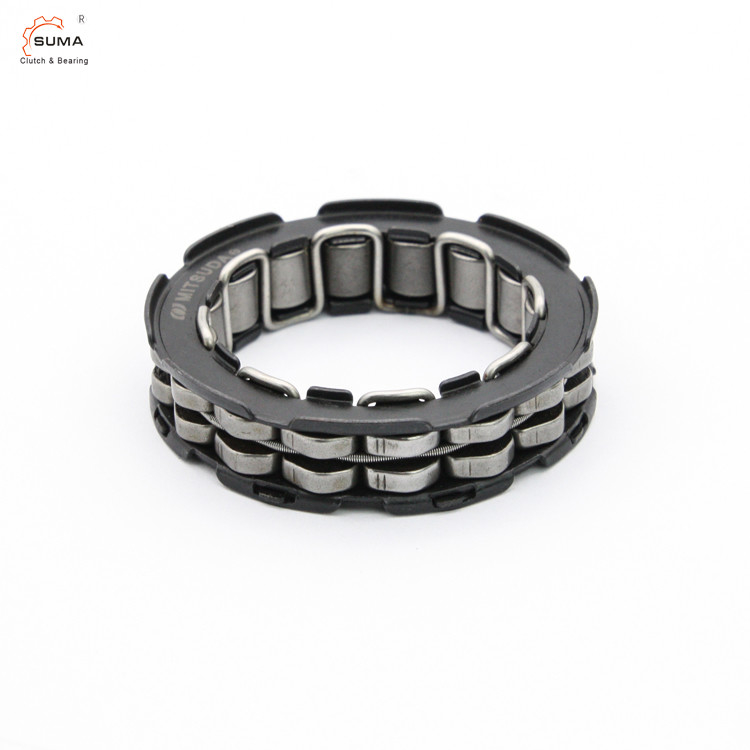

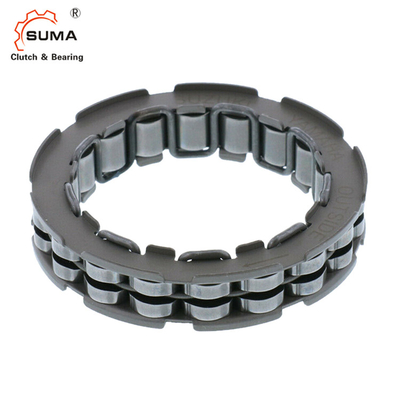

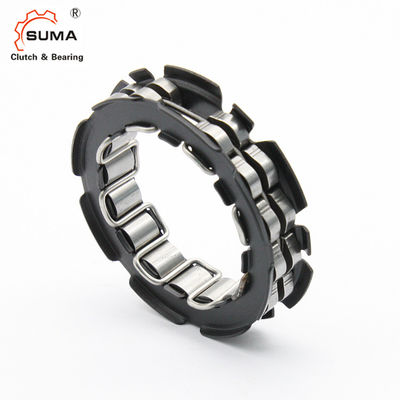

FWD332211BRB FWD332211BRS One Way Motorcycle Clutch Bearings
Features
Application: primarily used on motorcycle starter
Dimensions and Capacities
|
Type
|
Inner race
|
Outer race
|
Wmin
|
Wmin
|
DC |
Tkn
|
Weight |
|
D +0.008 -0.005 |
DO ±0.013 (mm) | W | W1 | (Kgf-m) | (g) | ||
| (mm) | (mm) | (mm) | (mm) | ||||
| FWD331608PRB | 39.627 | 56.294 | 13 | 11.4 | 45 | 27 | 70 |
| FWD331808PRB | 45.665 | 62.332 | 13.3 | 11.7 | 51 | 35 | 80 |
| FWD332008PRB | 51.71 | 68.377 | 13.3 | 11.7 | 57 | 45 | 89 |
| FWD332211PRB | 57.76 | 74.427 | 16.3 | 14.7 | 63 | 78 | 130 |
|
Type
|
Inner race
|
Outer race
|
Wmin
|
Wmin
|
DC
|
Tkn
|
Weight |
|
D +0.008 -0.005 |
DO ±0.013 (mm) | W | W1 | (Kgf-m) | (g) | ||
| (mm) | (mm) | (mm) | (mm) | ||||
| FWD331608PRS | 39.627 | 56.294 | 13 | 11.4 | 45 | 27 | 75 |
| FWD331808PRS | 45.665 | 62.332 | 13.3 | 11.7 | 51 | 35 | 85 |
| FWD332008PRS | 51.71 | 68.377 | 13.3 | 11.7 | 57 | 45 | 94 |
| FWD332211PRS | 57.76 | 74.427 | 16.3 | 14.7 | 63 | 78 | 139 |
|
Type
|
Inner race
|
Outer race
|
Wmin
|
Tkn
|
Weight |
|
D +0.008 -0.005 |
DO ±0.013 (mm) | W | (Kgf-m) | (g) | |
| (mm) | |||||
| (mm) | |||||
| FWD331608BRB | 39.627 | 56.294 | 13 | 27 | 73 |
| FWD331808BRB | 45.665 | 62.332 | 13.3 | 35 | 82 |
| FWD332008BRB | 51.71 | 68.377 | 13.3 | 45 | 91 |
| FWD332211BRB | 57.76 | 74.427 | 16.3 | 78 | 134 |
|
Type
|
Inner race
|
Outer race
|
Wmin
|
Tkn
|
Weight |
|
D +0.008 -0.005 |
DO ±0.013 (mm) | W | (Kgf-m) | (g) | |
| (mm) | |||||
| (mm) | |||||
| FWD331608BRS | 39.627 | 56.294 | 13 | 27 | 77 |
| FWD331808BRS | 45.665 | 62.332 | 13.3 | 35 | 87 |
| FWD332008BRS | 51.71 | 68.377 | 13.3 | 45 | 97 |
| FWD332211BRS | 57.76 | 74.427 | 16.3 | 78 | 134 |
|
Type
|
Inner race
|
Outer race
|
Wmin
|
Tkn
|
Weight |
|
D +0.008 -0.005 |
DO ±0.013 (mm) | W | (Kgf-m) | (g) | |
| (mm) | |||||
| (mm) | |||||
| FWD331608CRB | 39.627 | 56.294 | 13 | 27 | 73 |
| FWD331808CRB | 45.665 | 62.332 | 13.3 | 35 | 82 |
| FWD332008CRB | 51.71 | 68.377 | 13.3 | 45 | 91 |
| FWD332211CRB | 57.76 | 74.427 | 16.3 | 78 | 134 |
|
Type
|
Inner race
|
Outer race
|
Wmin
|
A | B | C |
Tkn
|
Weight |
|
D +0.008 -0.005 |
DO ±0.013 (mm) | W | (mm) | (mm) | (mm) | (Kgf-m) | (g) | |
| (mm) | ||||||||
| (mm) | ||||||||
| FWD331608CRS | 39.627 | 56.294 | 13 | 60 | 62 | 1.0 | 27 | 78 |
| FWD331808CRS | 45.665 | 62.332 | 13.3 | 65 | 68 | 1.0 | 35 | 88 |
| FWD332008CRS | 51.71 | 68.377 | 13.3 | 71 | 74 | 1.0 | 45 | 98 |
| FWD332211CRS | 57.76 | 74.427 | 16.3 | 76 | 79 | 1.0 | 78 | 140 |
