| Place of Origin | CHINA |
| Brand Name | SUMA |
| Certification | ISO SGS |
| Model Number | CFS4V CFS4A CFS4V-A |

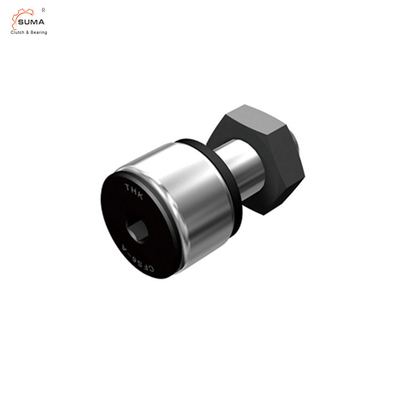

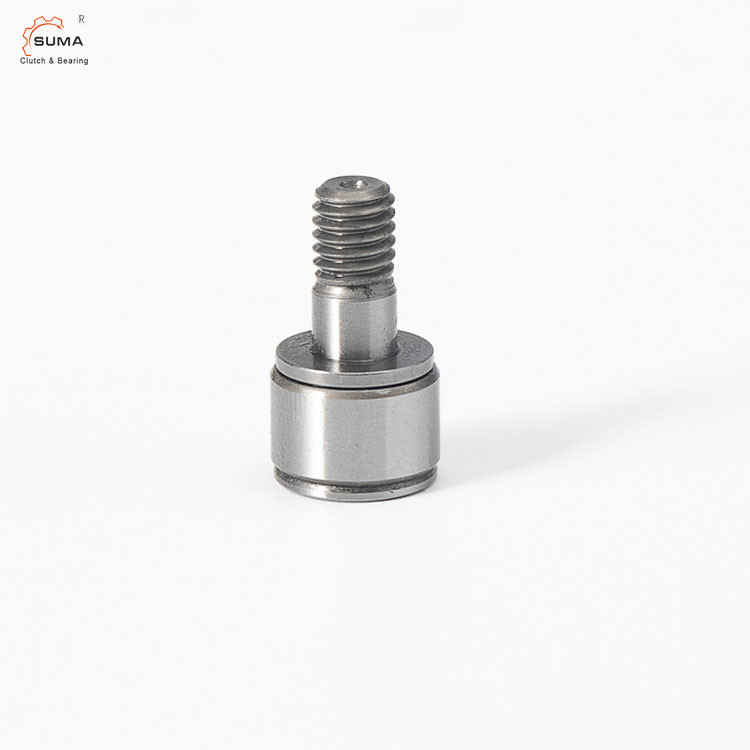

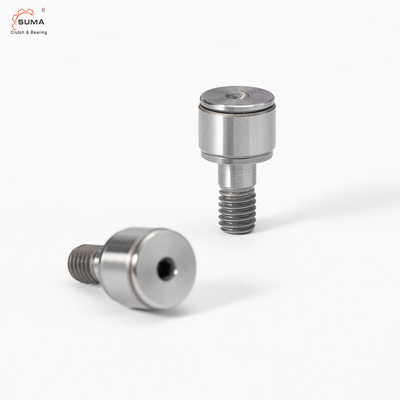

Outer Ring Compact Type Cam Follower CFS4V CFS4A CFS4V-A
Technical Datas
Cam Followers are bearings with a stud incorporating needle rollers in a thick walled outer ring. These bearings are designed for outer ring rotation,and have superior rotational performance with a small coefficient of friction.
Also, Cam Followers are designed to have minimal radial internal clearance to increase the loading zone, reducing the effect of shock loads and ensure stable long life.
·Miniature Type
·CFSV Series
| Category | Cam Followers | Roller Type | Cylindrical Outer Ring |
|---|---|---|---|
| Outer Diameter D(Ø) | 8 | Outer Ring Width C(mm) | 5 |
| Thread(mm) | M4×0.7 | Fastening Methods | Hex Socket on Head Side Only |
| Material | Carbon Steel | Roller Lining | No |
| Cam Follower Type | Standard | Stud | With Stud |
| Unit | Metric System | Roller Guiding Method | Full Roller Type |
| Basic Dynamic Load Rating(kN) | 2.35 | Basic Static Load Rating(kN) | 3.04 |
| Sealing Structure | Without Seal | Track Load Capacity(kN) | 0.77 |
| Dedicated Grease Fitting Included | No | Max. Allowable Load(kN) | 0.78 |
Dimensions and Capacities
