FND453Z Overrunning Freewheel Clutch Bearing One Way

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: FND453Z
Minimum Order Quantity: 1
Price: USD80-USD110PER PIECE
Packaging Details: Carton Box
Delivery Time: 3-7 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability: 1000PCS Per Month
Product Name: One Way Clutch Bearing Material: GCr15 Bearing Steel
Torque Capacity: 314Nm Rotation Speed: 1200RPM
Unit Weight: 0.46Kg Warranty: 1 Year
OEM: Accept Size: 25*58*34mm
High Light:

Overrunning Freewheel Clutch Bearing

,

1200RPM One Way Clutch Bearing

,

FND453Z

FND453Z Overrunning Freewheel Clutch Bearing One Way



Features

Bearing
The freewheel clutch includes ball and roller bearings. Additional external bearing support is not necessary.
Press fit pressure
Press fit pressure must not be applied to the balls.
Clamping direction
The arrow on the inner ring designates the inner ring's clamping
direction.

Width 34 mm
Operating temperature max. 100°C
Lubrication Operative lifetime oil lubrication
Installation tolerances
Shaft js6 (k5); hub H6
Mating parts
Hardening and grinding of the mating parts is not necessary.
Thoroughly clean (grease free) the mating parts in the vicinity of the freewheel clutch as well as the freewheel clutch's rings before making the press fit.



Technical Datas

Item FND453Z
Material GCr15
Bore dia. 25 mm
Outer dia. 58 mm
Width (B) 34 mm
Torque capacity 314 N.m
Overrunning limiting speed (inner race) 1200 r/min
Weight 0.46 kg
Package Carton box or as your requirements

Dimensions and Capacities



Designation d D W Tnom nmax Cdyn. Cstat. Weight b t Item no.
[mm] [mm] [mm] [Nm] [rpm] [N] [N] [kg] [mm] [mm]
FND 437 M 15 41 34 176 1,700 8,962 8,661 0.24 5 2.3 300737
FND 437 Z 15 41 34 161 1,700 8,962 8,661 0.24 5 2.3 300738
FND 442 M 20 46 34 223 1,500 10,247 10,708 0.28 6 2.8 300743
FND 442 Z 20 46 34 208 1,500 10,247 10,708 0.28 6 2.8 300744
FND 453 M 25 58 34 343 1,200 11,417 13,577 0.46 8 3.3 300751
FND 453 Z 25 58 34 314 1,200 11,417 13,577 0.46 8 3.3 300752
FND 459 M 30 64 34 411 1,100 12,691 16,320 0.55 8 3.3 300758
FND 459 Z 30 64 34 381 1,100 12,691 16,320 0.55 8 3.3 300760
FND 463 M 35 68 34 462 1,100 13,070 17,063 0.6 10 3.3 306528
FND 463 Z 35 68 34 428 1,100 13,070 17,063 0.6 10 3.3 306529
FND 470 M 40 75 34 550 1,000 14,050 19,840 0.69 12 3.3 300765
FND 470 Z 40 75 34 509 1,000 14,050 19,840 0.69 12 3.3 300766
FND 473 M 45 78 34 588 1,000 14,128 19,896 0.73 14 3.8 306532
FND 473 Z 45 78 34 543 1,000 14,128 19,896 0.73 14 3.8 306533


Pictures

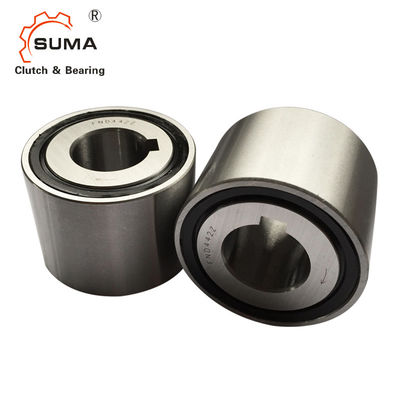

FND453Z Overrunning Freewheel Clutch Bearing One Way 1

FND453Z Overrunning Freewheel Clutch Bearing One Way 2

FND453Z Overrunning Freewheel Clutch Bearing One Way 3
