FND459Z One Way Sprag Type Freewheel Clutch Bearing

Name: FND459Z One Way Sprag Type Freewheel Clutch Bearing
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: FND453Z FND459Z
Price: 110.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: SUMA

Certification: ISO SGS

Model Number: FND453Z FND459Z

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD90-USD130PER PIECE

Packaging Details: Carton Box

Delivery Time: 3-7 Days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability: 1000PCS Per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                    Sprag Type Freewheel Clutch Bearing, 1500 R/Min Freewheel Clutch Bearing, FND459Z Clutch Bearing


Product Name:	One Way Clutch Bearing	Material:	GCr15 Bearing Steel
Torque Capacity:	411Nm	Rotation Speed:	1100RPM
Unit Weight:	0.55Kg	Warranty:	1 Year
OEM:	Accept	Size:	306434mm

Product Name:	One Way Clutch Bearing
Material:	GCr15 Bearing Steel
Torque Capacity:	411Nm
Rotation Speed:	1100RPM
Unit Weight:	0.55Kg
Warranty:	1 Year
OEM:	Accept
Size:	306434mm

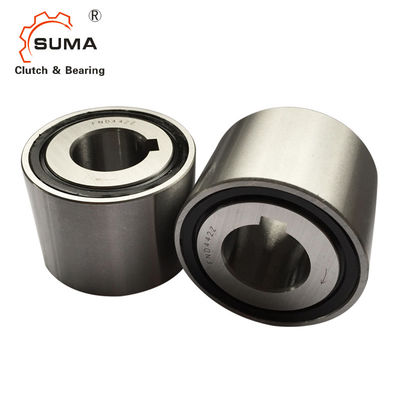

FND459Z One Way Sprag Type Freewheel Clutch Bearing

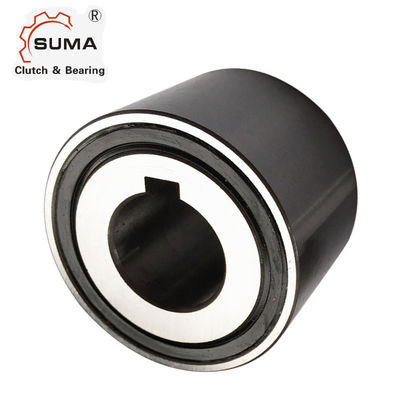

FND459Z One Way Sprag Type Freewheel Clutch Bearing

Features

Bearing
The freewheel clutch includes ball and roller bearings. Additional external bearing support is not necessary.
Press fit pressure
Press fit pressure must not be applied to the balls.
Clamping direction
The arrow on the inner ring designates the inner ring's clamping
direction.

Width 34 mm
Operating temperature max. 100°C
Lubrication Operative lifetime oil lubrication
Installation tolerances
Shaft js6 (k5); hub H6
Mating parts
Hardening and grinding of the mating parts is not necessary.
Thoroughly clean (grease free) the mating parts in the vicinity of the freewheel clutch as well as the freewheel clutch's rings before making the press fit.

Technical Datas

Item	FND459Z
Material	GCr15
Bore dia.	20 mm
Outer dia.	46 mm
Width (B)	34 mm
Torque capacity	208 N.m
Overrunning limiting speed (inner race)	1500 r/min
Weight	0.28 kg
Package	Carton box or as your requirements

Dimensions and Capacities

Designation	d	D	W	Tnom	nmax	Cdyn.	Cstat.	Weight	b	t	Item no.
Designation	[mm]	[mm]	[mm]	[Nm]	[rpm]	[N]	[N]	[kg]	[mm]	[mm]	Item no.
FND 437 M	15	41	34	176	1,700	8,962	8,661	0.24	5	2.3	300737
FND 437 Z	15	41	34	161	1,700	8,962	8,661	0.24	5	2.3	300738
FND 442 M	20	46	34	223	1,500	10,247	10,708	0.28	6	2.8	300743
FND 442 Z	20	46	34	208	1,500	10,247	10,708	0.28	6	2.8	300744
FND 453 M	25	58	34	343	1,200	11,417	13,577	0.46	8	3.3	300751
FND 453 Z	25	58	34	314	1,200	11,417	13,577	0.46	8	3.3	300752
FND 459 M	30	64	34	411	1,100	12,691	16,320	0.55	8	3.3	300758
FND 459 Z	30	64	34	381	1,100	12,691	16,320	0.55	8	3.3	300760
FND 463 M	35	68	34	462	1,100	13,070	17,063	0.6	10	3.3	306528
FND 463 Z	35	68	34	428	1,100	13,070	17,063	0.6	10	3.3	306529
FND 470 M	40	75	34	550	1,000	14,050	19,840	0.69	12	3.3	300765
FND 470 Z	40	75	34	509	1,000	14,050	19,840	0.69	12	3.3	300766
FND 473 M	45	78	34	588	1,000	14,128	19,896	0.73	14	3.8	306532
FND 473 Z	45	78	34	543	1,000	14,128	19,896	0.73	14	3.8	306533
