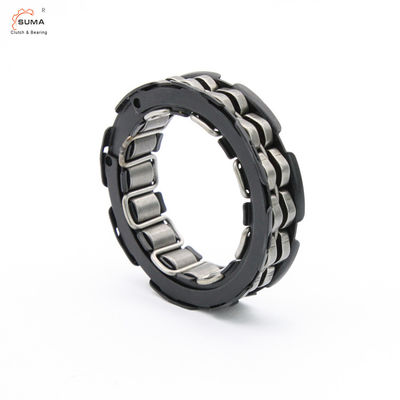

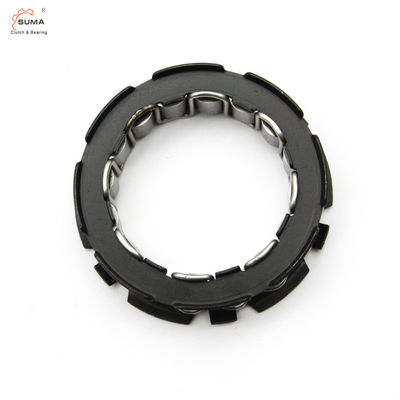

FWD332008BRB FWD332008BRS Sprag Motorcycle One Way Clutch
  • FWD332008BRB FWD332008BRS Sprag Motorcycle One Way Clutch
  • FWD332008BRB FWD332008BRS Sprag Motorcycle One Way Clutch
  • FWD332008BRB FWD332008BRS Sprag Motorcycle One Way Clutch

FWD332008BRB FWD332008BRS Sprag Motorcycle One Way Clutch

Place of Origin CHINA
Brand Name SUMA
Certification ISO SGS
Model Number FWD332008BRB FWD332008BRS
Product Details
Product Name:
Motorcycle One Way Clutch
Material:
GCr15 Bearing Steel
Torque Capacity:
45Nm
Rotation Speed:
7500Nm
Unit Weight:
0.094KG
Size:
51.71*68.377*13.3MM
OEM:
Accept
High Light:

FE428Z sprag type clutch

,

GCr15 steel sprag type clutch

,

GCr15 steel One Way clutch

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD10-USD15 PER PIECE
Packaging Details
Carton Box
Delivery Time
3-7 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability
1000PCS Per Month
Product Description



FWD332008BRB FWD332008BRS Sprag Motorcycle One Way Clutch

Features

Application: primarily used on motorcycle starter


Dimensions and Capacities

FWD PRB .jpg



Type



Inner race



Outer race



Wmin





Wmin



D­C

Tkn



Weight

D +0.008

-0.005

DO ±0.013 (mm) W W1 (Kgf-m) (g)
(mm) (mm) (mm) (mm)
FWD331608PRB 39.627 56.294 13 11.4 45 27 70
FWD331808PRB 45.665 62.332 13.3 11.7 51 35 80
FWD332008PRB 51.71 68.377 13.3 11.7 57 45 89
FWD332211PRB 57.76 74.427 16.3 14.7 63 78 130



FWD PRS .jpg

Type



Inner race



Outer race



Wmin





Wmin





D­C



Tkn



Weight

D +0.008

-0.005

DO ±0.013 (mm) W W1 (Kgf-m) (g)
(mm) (mm) (mm) (mm)
FWD331608PRS 39.627 56.294 13 11.4 45 27 75
FWD331808PRS 45.665 62.332 13.3 11.7 51 35 85
FWD332008PRS 51.71 68.377 13.3 11.7 57 45 94
FWD332211PRS 57.76 74.427 16.3 14.7 63 78 139



FWD332008BRB FWD332008BRS Sprag Motorcycle One Way Clutch 2

Type



Inner race



Outer race



Wmin



Tkn



Weight


D +0.008

-0.005

DO ±0.013 (mm) W (Kgf-m) (g)
(mm)
(mm)
FWD331608BRB 39.627 56.294 13 27 73
FWD331808BRB 45.665 62.332 13.3 35 82
FWD332008BRB 51.71 68.377 13.3 45 91
FWD332211BRB 57.76 74.427 16.3 78 134



FWD332008BRB FWD332008BRS Sprag Motorcycle One Way Clutch 3

Type



Inner race



Outer race



Wmin



Tkn



Weight


D +0.008

-0.005

DO ±0.013 (mm) W (Kgf-m) (g)
(mm)
(mm)
FWD331608BRS 39.627 56.294 13 27 77
FWD331808BRS 45.665 62.332 13.3 35 87
FWD332008BRS 51.71 68.377 13.3 45 97
FWD332211BRS 57.76 74.427 16.3 78 134



FWD332008BRB FWD332008BRS Sprag Motorcycle One Way Clutch 4

Type



Inner race



Outer race



Wmin



Tkn



Weight


D +0.008

-0.005

DO ±0.013 (mm) W (Kgf-m) (g)
(mm)
(mm)
FWD331608CRB 39.627 56.294 13 27 73
FWD331808CRB 45.665 62.332 13.3 35 82
FWD332008CRB 51.71 68.377 13.3 45 91
FWD332211CRB 57.76 74.427 16.3 78 134



FWD332008BRB FWD332008BRS Sprag Motorcycle One Way Clutch 5

Type



Inner race



Outer race



Wmin



A B C

Tkn



Weight


D +0.008

-0.005

DO ±0.013 (mm) W (mm) (mm) (mm) (Kgf-m) (g)
(mm)
(mm)
FWD331608CRS 39.627 56.294 13 60 62 1.0 27 78
FWD331808CRS 45.665 62.332 13.3 65 68 1.0 35 88
FWD332008CRS 51.71 68.377 13.3 71 74 1.0 45 98
FWD332211CRS 57.76 74.427 16.3 76 79 1.0 78 140


Pictures

FWD332008BRB FWD332008BRS Sprag Motorcycle One Way Clutch 6

FWD332008BRB FWD332008BRS Sprag Motorcycle One Way Clutch 7



FWD332008BRB FWD332008BRS Sprag Motorcycle One Way Clutch 8
FWD332008BRB FWD332008BRS Sprag Motorcycle One Way Clutch 9
