| Place of Origin | CHINA |
| Brand Name | SUMA |
| Certification | ISO SGS |
| Model Number | FXN76-25/115 |

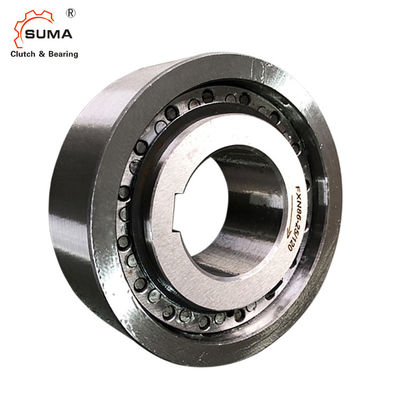

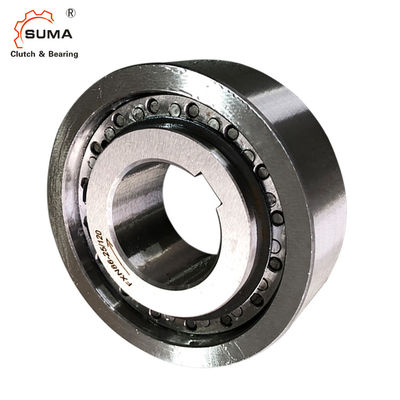

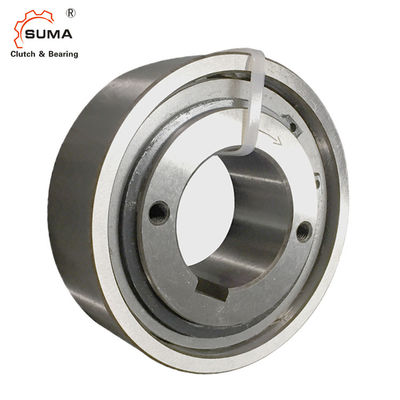

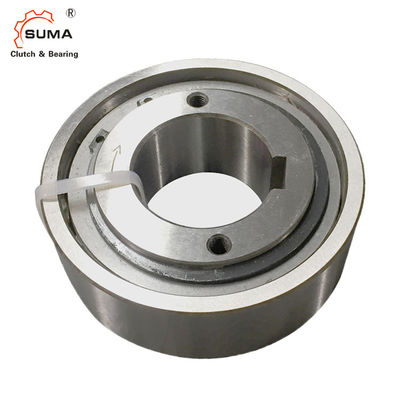

FXN76-25/115 5000RPM Overrunning Spped One Way Backstop Clutch Pump Bearing
Feature of FXN Backstop Pump Bearings
The freewheels FXN are used as:
Backstops
Overrunning Clutches
Internal Freewheels FXN are without bearing support. Concentric alignment of inner and outer ring must be provided by the customer.
The permissible run out (T.I.R.) must be observed. The torque is transmitted on the outer ring by press fit.
In order to transmit the torques speci- fied in the table, the outer ring must be accommodated in a housing with an external diameter K. The housing is made of steel or grey cast iron in minimum quality GG-20. When using other housing materials or smaller external diameters, we urge you to contact us regarding the transmissible torque.
The tolerance of the housing bore is specified in the table under dimension D.
The tolerance of the shaft must be ISO h6 or j6.
Dimension and Capacity of FXN Backstop clutch bearing for PUMP
|
Freewheel size |
Torque Nm |
Inner ring Overrun | Bore d Standard | max. |
B mm |
D mm |
F mm |
J mm |
K min. mm |
L mm |
Weight kg |
|||||
| mm | mm | mm | mm | mm | mm | mm | ||||||||||
| FXN31 - 17/60 | 110 | 5000 | 20* | 20* | 25 | 60 P6 | 55 | 31 | 85 | 24 | 0,3 | |||||
| FXN31 - 17/62 | 110 | 5000 | 20* | 20* | 25 | 62 P6 | 55 | 31 | 85 | 24 | 0,4 | |||||
| FXN38 - 17/70 | 180 | 5000 | 25* | 25* | 25 | 70 P6 | 62 | 38 | 90 | 24 | 0,4 | |||||
| FXN46 - 25/80 | 460 | 5000 | 25 | 30 | 35 | 80 P6 | 70 | 46 | 95 | 35 | 0,8 | |||||
| FXN51 - 25/85 | 560 | 5000 | 25 | 30 | 35 | 36 | 35 | 85 P6 | 75 | 51 | 105 | 35 | 0,8 | |||
| FXN56 - 25/90 | 660 | 5000 | 35 | 40 | 35 | 90 P6 | 80 | 56 | 110 | 35 | 0,9 | |||||
| FXN61 - 19/95 | 520 | 5000 | 30 | 35 | 40 | 45* | 26 | 95 P6 | 85 | 61 | 120 | 25 | 0,8 | |||
| FXN61 - 19/106 | 520 | 5000 | 30 | 35 | 40 | 45* | 25 | 106H7 | 85 | 61 | 120 | 25 | 1,2 | |||
| FXN66 - 25/100 | 950 | 5000 | 35 | 40 | 45 | 48* | 30 | 100P6 | 90 | 66 | 132 | 35 | 1,1 | |||
| FXN66 - 25/110 | 950 | 5000 | 35 | 40 | 45 | 48* | 40 | 110 P6 | 90 | 66 | 132 | 35 | 1,8 | |||
| FXN76 - 25/115 | 1200 | 5000 | 45 | 55 | 60* | 40 | 115 P6 | 100 | 76 | 140 | 35 | 1,7 | ||||
| FXN76 - 25/120 | 1200 | 5000 | 45 | 55 | 60* | 32 | 120 J6 | 100 | 76 | 140 | 35 | 1,8 | ||||
| FXN86 - 25/125 | 1600 | 5000 | 40 | 45 | 50 | 60 | 65 | 70* | 40 | 125P6 | 110 | 86 | 150 | 40 | 2,3 | |
| FXN86 - 25/130 | 1600 | 5000 | 40 | 45 | 50 | 60 | 65 | 70* | 40 | 130P6 | 110 | 86 | 150 | 40 | 2,6 | |
| FXN 101 -25/140 | 2100 | 5000 | 55 | 70 | 75 | 45 | 140P6 | 125 | 101 | 175 | 50 | 3,1 | ||||
| FXN 101 - 25/149 | 2100 | 5000 | 70 | 75 | 62 | 149H6 | 125 | 101 | 175 | 62 | 4,2 | |||||
| FXN 101 - 25/150 | 2100 | 5000 | 55 | 70 | 75 | 45 | 150P6 | 125 | 101 | 175 | 50 | 3,6 | ||||
| FXN 85 - 40/140 | 2500 | 6000 | 45 | 50 | 60 | 65 | 65 | 45 | 140P6 | 125 | 85 | 175 | 60 | 3,2 | ||
| FXN 85 - 40/150 | 2500 | 6000 | 45 | 50 | 60 | 65 | 65 | 45 | 150P6 | 125 | 85 | 175 | 60 | 4,2 | ||
| FXN 100 - 40/160 | 3700 | 4500 | 45 | 50 | 55 | 60 | 70 | 75 | 75 | 50 | 160P6 | 140 | 100 | 190 | 60 | 5,1 |
| FXN 105 - 50/165 | 5200 | 4500 | 80 | 80 | 62 | 165P6 | 145 | 105 | 195 | 62 | 5,8 | |||||
| FXN 120 - 50/198 | 7700 | 4000 | 60 | 65 | 70 | 75 | 80 | 95 | 95 | 70 | 198H6 | 160 | 120 | 210 | 70 | 8,6 |
| FXN 140 - 50/215 | 10100 | 3000 | 65 | 90 | 100 | 110 | 110 | 69 | 215J6 | 180 | 140 | 245 | 70 | 14,0 | ||
| FXN 170 - 63/258 | 20500 | 2700 | 70 | 85 | 100 | 120 | 130 | 80 | 258H6 | 210 | 170 | 290 | 80 | 21,0 | ||
The maximum transmissible torque is 2 times the specified nominal torque.
Notes:
1. T max = 2 × T KN
2. Inner race overruns
3. Outer race overruns
Keyway to DIN 6885.1
Keyway according to DIN 6885, page 1 • Tolerance of keyway width JS10.
* Keyway according to DIN 6885, page 3 • Tolerance of keyway width JS10.
Mounting Example
Lubrication
At speeds in excess of the sprag lift-off speed, no special lubrication is required; the freewheel functions maintenance-free. When operating below the sprag lift-off speed, an oil lubrication of the specified quality must be provided.
