| Place of Origin | CHINA |
| Brand Name | SUMA |
| Certification | ISO SGS |
| Model Number | KR13 CF5 |

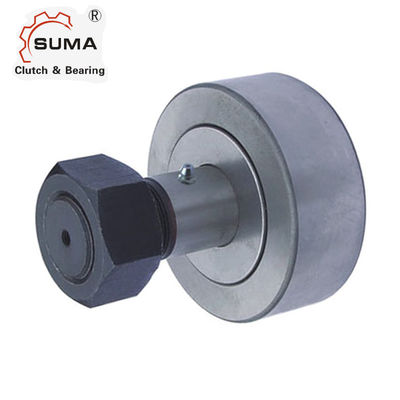

KR13 CF5 Machine Tool Cylindrical Stud Type Cam Follower
Features
1. multiple compact structure
2. high rotating accuracy
3. large varieties
4. broad adaptability
5. easy installation
6. bear high radial load and certain shock load
Technical Datas
| Product name | KR40 CF18 Yoke Type Track Roller Bearing |
| Model | KR40 CF18 |
| Material | GCr15 |
| Package | Carton Box / Wooden box, pulley, etc |
| Payment terms | TT. L/C, D/A,D/P,Western Union |
| Delivery time | 2-4 days for the sample, 7 days for big order |
Dimensions and Capacities
| Model | Weight (gram) |
d mm |
D mm |
C mm |
B1 mm |
B2 mm |
G
|
G1 mm |
|
| No Seal | Reference model | ||||||||
| CF 3 | KR10 | 4.5 | 3 | 10 | 7 | 17 | 9 | M3X0.5 | 5 |
| CF 4 | KR12 | 7.5 | 4 | 12 | 8 | 20 | 11 | M4X0.7 | 6 |
| CF 5 | KR13 | 10.5 | 5 | 13 | 9 | 23 | 13 | M5X0.8 | 7.5 |
| CF 6 | KR16 | 18.5 | 6 | 16 | 11 | 28 | 16 | M6X1 | 8 |
| CF 8 | KR19 | 28.5 | 8 | 19 | 11 | 32 | 20 | M8X1.25 | 10 |
| CF10 | KR22 | 45.0 | 10 | 22 | 12 | 36 | 23 | M10X1.25 | 12 |
| CF10-1 | KR26 | 60.0 | 10 | 26 | 12 | 36 | 23 | M10X1.25 | 12 |
| CF12 | KR30 | 95.0 | 12 | 30 | 14 | 40 | 25 | M12X1.5 | 13 |
| CF12-1 | KR32 | 105.0 | 12 | 32 | 14 | 40 | 25 | M12X1.5 | 13 |
| CF16 | KR35 | 170.0 | 16 | 35 | 18 | 52 | 32.5 | M16X1.5 | 17 |
| CF18 | KR40 | 250.0 | 18 | 40 | 20 | 58 | 36.5 | M18X1.5 | 19 |
| CF20 | KR47 | 460.0 | 20 | 47 | 24 | 66 | 40.5 | M20X1.5 | 21 |
| CF20-1 | KR52 | 385.0 | 20 | 52 | 29 | 66 | 40.5 | M20X1.5 | 21 |
| CF24 | KR62 | 815.0 | 24 | 62 | 29 | 80 | 49.5 | M24X1.5 | 25 |
| CF24-1 | KR72 | 1,140 | 24 | 72 | 29 | 80 | 49.5 | M24X1.5 | 25 |
| CF30 | KR80 | 1,870 | 30 | 80 | 35 | 100 | 63 | M30X1.5 | 32 |
| CF30-1 | KR85 | 2.030 | 30 | 85 | 35 | 100 | 63 | M30X1.5 | 32 |
| CF30-2 | KR90 | 2,220 | 30 | 90 | 35 | 100 | 63 | M30X1.5 | 32 |
