Sprag Clutch Bearing
Created with Pixso. B208 One Directional 1800RPM Cam Sprag Clutch Bearing

B208 One Directional 1800RPM Cam Sprag Clutch Bearing

Brand Name: SUMA
Model Number: B208
MOQ: 1
Price: USD18-USD24 PER PIECE
Delivery Time: 10-15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal
Detail Information
Place of Origin:
CHINA
Certification:
ISO SGS
Product Name:
Sprag Clutch Bearing B208
Material:
GCr15 Bearing Steel
Torque Capacity:
549Nm
Rotation Speed:
1800RPM
Unit Weight:
0.91Kg
Warranty:
1 Year
Size:
Mm
OEM:
Accept
Packaging Details:
Carton Box
Supply Ability:
1000PCS Per Month
Highlight:

B208 Sprag Clutch Bearing

,

1800RPM Sprag Clutch Bearing

,

One Directional Sprag Bearing

Product Description

             B208 One Directional 1800RPM Cam Sprag Clutch Bearing

Features

Type S200(B200) is a non bearing supported sprag type freewheel.

The sprags run directly on the shaft provided by the user. Bearings are required to support axial and radial loads.

Available size:

S203(B203) S204(B204) S205(B205) S206(B206)

S207(B207) S208(S208) S209(B209) S210(B210)

Application: Backstop, indexing clutch

Delivery time: 7-10 days after order confirmed

Package: wooden box or customized

Payment terms: TT, L/C, D/A, D/P, Western Union ,Paypal.

Technical Datas

Item B208 one way bearing
Precision P6
Drag Torque 0.2Ncm
Bore size (mm) 46.761
Outer race (mm) 80
Torque Capacity(Nm) 549
Max.Indexing(cycle/min) 1800
Weight (kg) 0.91
Application Harvest Machinery, industrial machine and so on

Dimensions and Capacities



Model

Torque Capacity

(N.m)

Drag Torque

(N.m)

Max .Overrunning (r/min) Max.Idexing (cycle/min) A(+0 to -0.6) B Keyway With JIS Bearing No.

Shaft Dia. C

(+0 to -0.025)

Weight

(kg)

Shaft Outer Race
B203 39.2 0.1 2400 500 150 25 40(-0.014-0.039) 4X2.5 6203 16.51 0.23
B204 58.8 0.1 2400 500 150 25 47(-0.014-0.039) 5X3 6204 18.796 0.34
B205 98 0.2 1800 400 150 25 52(0.017-0.042) 5X3 6205 23.622 0.45
B206 235 0.2 1800 350 150 28 62(-0.017-0.042) 7X4 6206 32.766 0.68
B207 372 0.2 1800 300 150 28 72(-0.017—0.042) 7X4 6207 42.088 0.8
B208 549 0.2 1800 200 150 32 80(-0.017-0.042) 10X4.5 6208 46.761 0.91
B209 549 0.2 1800 200 150 32 85(-0.020-0.045) 10X4.5 6209 46.761 0.95
B2010 784 0.29 1200 200 150 32 90(-0.020-0.045) 10X4.5 6210 56.109 1
B2011 784 0.29 1200 200 150 32 100(-0.020-0.050) 10X4.5 6211 56.109 1.4
B2012 1230 0.29 1200 180 150 42 110(-0.020-0.050) 10X4.5 6212 70.029 1.8
B2013 1230 0.29 1200 180 150 42 120(-0.020-0.050) 10X4.5 6213 70.029 2.3
B2014 1390 0.39 180 180 150 42 125(-0.024-0.060) 12X4.5 6214 79.356 2.4

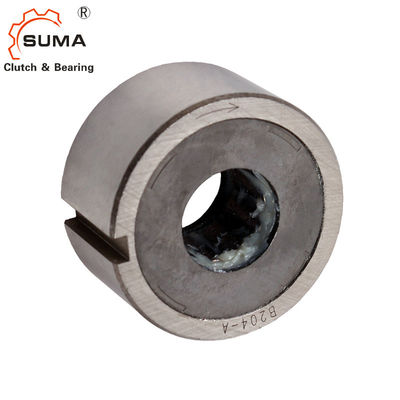

B208 One Directional 1800RPM Cam Sprag Clutch Bearing 0
Mounting and Coupling

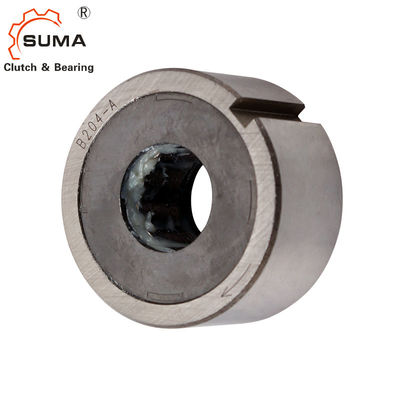

B208 One Directional 1800RPM Cam Sprag Clutch Bearing 1

Pictures

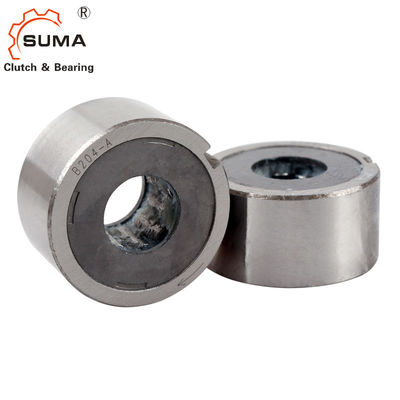

B208 One Directional 1800RPM Cam Sprag Clutch Bearing 2

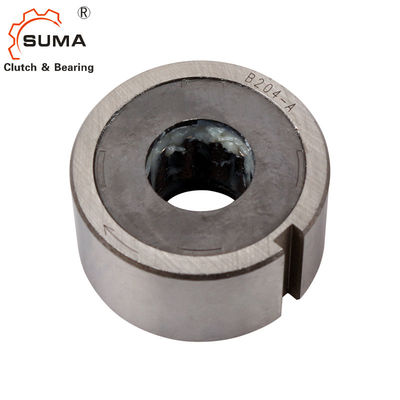

B208 One Directional 1800RPM Cam Sprag Clutch Bearing 3
