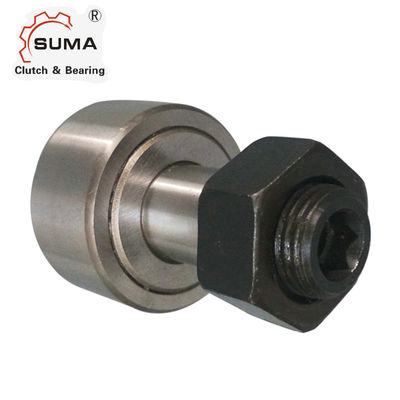

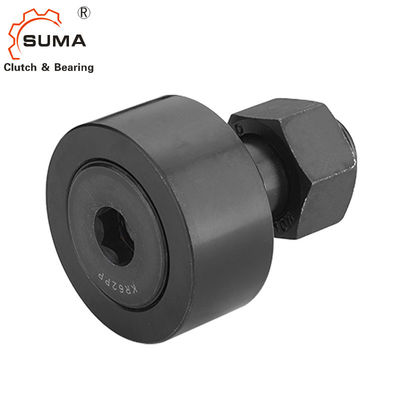

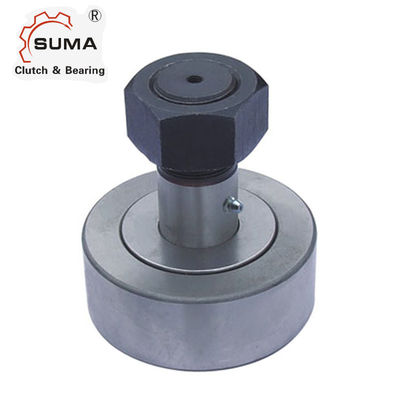

CF-1/2-N-SB Metallurgically Stud Eccentric Cam Follower
Features
The stud has a bushing pushed onto it that has an eccentric outer diameter.
This allows for adjustability during installation to eliminate any backlash The adjustable range for an eccentric bearing is twice that of the eccentricity.
Dimensions and Capacities
| Unseal No. | Sealed No. | Roller Dia. (RD) |
Roller Width(W) |
Stud Dia. (SD) |
Stud Lgth (SL) |
Min Thrd Lgth (TL) |
Fine Threads |
Lub Fiting Size (F) |
Recom Toque |
Static Capacity Lbs |
Dynamic Cpacity Lbs |
| CF-1/2-N-B | CF-1/2-N-SB | 0.5 | 0.344 | 0.19 | 1/2 | 1/4 | 10-32 | 15 | 720 | 620 | |
| CF-1/2-B | CF-1/2-SB | 0.5 | 0.375 | 0.19 | 5/8 | 1/4 | 10-32 | 15 | 790 | 680 | |
| CF-9/16-B | CF-9/16-SB | 0.5625 | 0.375 | 0.19 | 5/8 | 1/4 | 10-32 | 15 | 790 | 680 | |
| CF-5/8-N-B | CF-5/8-N-SB | 0.625 | 0.406 | 0.25 | 5/8 | 5/16 | 1/4-28 | 35 | 1065 | 930 | |
| CF-5/8-B | CF-5/8-SB | 0.625 | 0.4375 | 0.25 | 3/4 | 5/16 | 1/4-28 | 35 | 1215 | 955 | |
| CF-11/16-B | CF-11/16-SB | 0.6875 | 0.4375 | 0.25 | 3/4 | 5/16 | 1/4-28 | 95 | 1215 | 955 | |
| CF-3/4-B | CF-3/4-SB | 0.75 | 0.5 | 0.375 | 7/8 | 3/8 | 3/8-24 | 3/16 | 95 | 2065 | 1660 |
| CF-7/8-B | CF-7/8-SB | 0.875 | 0.5 | 0.375 | 7/8 | 3/8 | 3/8-24 | 3/16 | 250 | 2065 | 1660 |
| CF-1-B | CF-1-SB | 1 | 0.625 | 0.4375 | 1 | 1/2 | 7/16-20 | 3/16 | 250 | 3060 | 2225 |
| CF-1 1/8-B | CF-1 1/8-SB | 1.125 | 0.625 | 0.4375 | 1 | 1/2 | 7/16-20 | 3/16 | 350 | 3060 | 2225 |
| CF-1 1/4-B | CF-1 1/4-SB | 1.25 | 0.75 | 0.5 | 1 1/4 | 5/8 | 1/2-20 | 3/16 | 350 | 4250 | 3930 |
| CF-1 3/8-B | CF-1 3/8-SB | 1.375 | 0.75 | 0.5 | 1 1/4 | 5/8 | 1/2-20 | 3/16 | 650 | 4250 | 3930 |
| CF-1 1/2-B | CF-1 1/2-SB | 1.5 | 0.875 | 0.625 | 1 1/2 | 3/4 | 5/8-18 | 3/16 | 650 | 5640 | 4840 |
| CF-1 5/8-B | CF-1 5/8-SB | 1.625 | 0.875 | 0.625 | 1 1/2 | 3/4 | 5/8-18 | 3/16 | 1250 | 5640 | 4840 |
| CF-1 3/4-B | CF-1 3/4-SB | 1.75 | 1 | 0.75 | 1 3/4 | 7/8 | 3/4-16 | 3/16 | 1250 | 7920 | 6385 |
| CF-1 7/8-B | CF-1 7/8-SB | 1.875 | 1 | 0.75 | 1 3/4 | 7/8 | 3/4-16 | 3/16 | 1500 | 7920 | 6385 |
| CF-2-B | CF-2-SB | 2 | 1.25 | 0.875 | 2 | 1 | 7/8-14 | 3/16 | 1500 | 10570 | 8090 |
| CF-2 1/4-B | CF-2 1/4-SB | 2.25 | 1.25 | 0.875 | 2 | 1 | 7/8-14 | 3/16 | 2250 | 10570 | 8090 |
| CF-2 1/2-B | CF-2 1/2-SB | 2.5 | 1.5 | 1 | 2 1/4 | 1 1/8 | 1-14 | 3/16 | 2250 | 16450 | 11720 |
| CF-2 3/4-B | CF-2 3/4-SB | 2.75 | 1.5 | 1 | 2 1/4 | 1 1/8 | 1-14 | 3/16 | 3450 | 16450 | 11720 |
| CF-3-B | CF-3-SB | 3 | 1.75 | 1.25 | 2 1/2 | 1 1/4 | 1 1/4-12 | 1/4 | 3450 | 24910 | 15720 |
| CF-3 1/4-B | CF-3 1/4-SB | 3.25 | 1.75 | 1.25 | 2 1/2 | 1 1/4 | 1 1/4-12 | 1/4 | 4200 | 24910 | 15720 |
| CF-3 1/2-B | CF-3 1/2-SB | 3.5 | 2 | 1.375 | 2 3/4 | 1 3/8 | 1 3/8-12 | 1/4 | 5000 | 31625 | 22800 |
| CF-4-B | CF-4-SB | 4 | 2.25 | 1.5 | 3 1/2 | 1 1/2 | 1 1/2-12 | 1/4 | 5000 | 44770 | 2998 |
