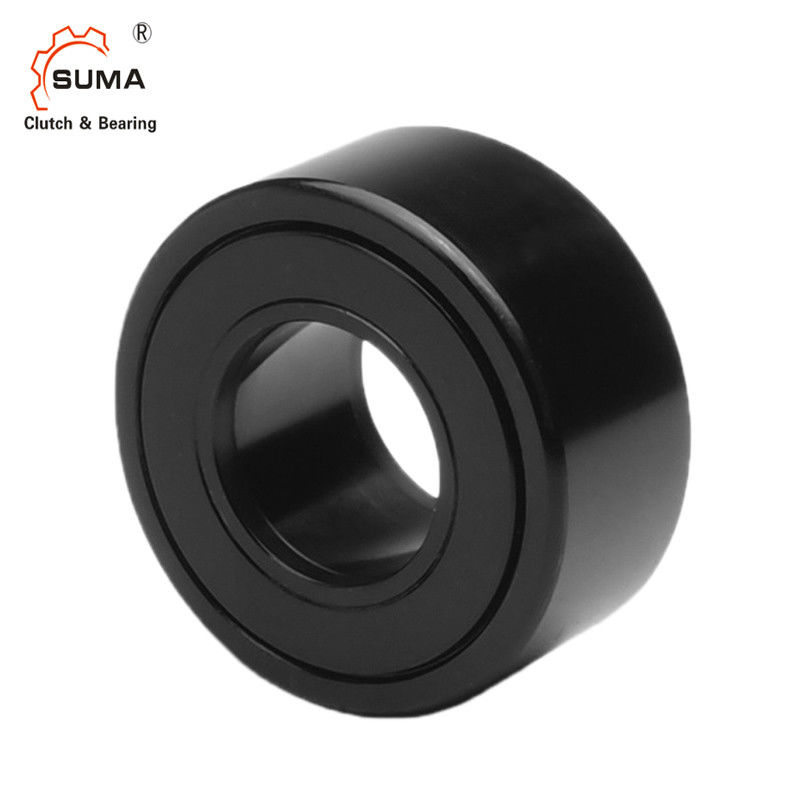

CYR-1 3/4 Axial Guiding Yoke Stud Type Cam Follower

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: CYR-1 3/4
Minimum Order Quantity: 10PCS
Price: USD2.5-USD3.2 PER PIECE
Packaging Details: Carton Box / Wooden Box
Delivery Time: 2-5 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability: 100000 PCS PER MONTH
Product Name: Stud Type Cam Follower CYR-3/4 Material: Bearing Steel GCr15
Outer Race Surface: Flat Package: Each In Plastic Bag + Carton Box
Warranty: 6 Months Port: ShangHai / NingBo
OEM: Accept Delivery Time: 3-5 Days
High Light:

Axial Guiding Stud Type Cam Follower

,

CYR Stud Type Cam Follower

,

Axial Guiding Stud Track Roller

                   CYR-1 3/4 Axial Guiding Yoke Stud Type Cam Follower



Introduction

Cam followers and track rollers from Grainger can withstand a variety of mechanical applications. Choose from assorted cam follower types, including full complement needle rollers, stud, heavy stud, crowned and yoke. Track rollers can handle applications with a combination of both radial and axial loads.


Dimensions and Capacities
CYR-1 3/4 Axial Guiding Yoke Stud Type Cam Follower 0

No seals

Ref No.

Sealed

Ref No.

Sealed

Ref No.

OD (RD)

Inch

Width (W)

Inch

ID (B)

Inch

Width over end plates

(W1)

Inch

Dia. Of end

plate (E) Inch

Static Capacity

LBS

Dynamic Capacity

LBS

CYR-3/4 CYR-3/4-S CCYR-3/4-S 0.75 0.5 0.25 0.5625 39/64 4130 1660
CYR-7/8 CYR-7/8-S CCYR-7/8-S 0.875 0.5 0.25 0.5625 39/64 4130 1660
CYR-1 CYR-1-S CCYR-1-S 1 0.625 0.3125 0.6875 25/32 6120 2225
CYR-1 1/8 CYR-1 1/8-S CCYR-1 1/8-S 1.125 0.625 0.3125 0.6875 25/32 6120 2225
CYR-1 1/4 CYR-1 1/4-S CCYR-1 1/4-S 1.25 0.75 0.375 0.8125 63/64 8500 3930
CYR-1 3/8 CYR-1 3/8-S CCYR-1 3/8-S 1.375 0.75 0.375 0.8125 63/64 8500 3930
CYR-1 1/2 CYR-1 1/2-S CCYR-1 1/2-S 1.5 0.875 0.4375 0.9375 1 3/32 11280 4840
CYR-1 5/8 CYR-1 5/8-S CCYR-1 5/8-S 1.625 0.875 0.4375 0.9375 1 3/32 11280 4840
CYR-1 3/4 CYR-1 3/4-S CCYR-1 3/4-S 1.75 1 0.5 1.0625 1 1/4 15840 6385
CYR-1 7/8 CYR-1 7/8-S CCYR-1 7/8-S 1.875 1 0.5 1.0625 1 1/4 15840 6385
CYR-2 CYR-2-S CCYR-2-S 2 1.25 0.625 1.3125 1 13/32 21140 8090
CYR-2 1/4 CYR-2 1/4-S CCYR-2 1/4-S 2.25 1.25 0.625 1.3125 1 13/32 21140 8090
CYR-2 1/2 CYR-2 1/2-S CCYR-2 1/2-S 2.5 1.5 0.75 1.5625 1 11/16 32900 11720
CYR-2 3/4 CYR-2 3/4-S CCYR-2 3/4-S 2.75 1.5 0.75 1.5625 1 11/16 32900 11720
CYR-3 CYR-3-S CCYR-3-S 3 1.75 1 1.8125 2 1/8 49820 15720
CYR-3 1/4 CYR-3 1/4-S CCYR-3 1/4-S 3.25 1.75 1 1.8125 2 1/8 49820 15720
CYR-3 1/2 CYR-3 1/2-S CCYR-3 1/2-S 3.5 2 1.125 2.0625 2 7/16 63250 22800
CYR-4 CYR-4-S CCYR-4-S 4 2.25 1.25 2.3125 2 51/64 89540 29985
  CYR-5-S CCYR-5-S 5 2.75 1.75 2.875 3 9/16 135900 46575
  CYR-6-S CCYR-6-S 6 3.25 2.25 3.375 4 15/32 160900 60000
  CYR-7-S CCYR-7-S 7 3.75 2.75 3.875 5 3/16 213860 75380
  CYR-8-S CCYR-8-S 8 4.25 3.255 4.5 4 3/8 288200 92200
  CYR-9-S CCYR-9-S 9 4.75 3.755 5 5 1/16 366850 113260
  CYR-10-S CCYR-10-S 10 5.25 4.255 5.5 5 15/32 431130 131545

 CYR-1 3/4 Axial Guiding Yoke Stud Type Cam Follower 1
Pictures

CYR-1 3/4 Axial Guiding Yoke Stud Type Cam Follower 2

CYR-1 3/4 Axial Guiding Yoke Stud Type Cam Follower 3
