KR10 CF3 Stud Type Track Roller Bearings One Way Bearing

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: KR10 CF3
Minimum Order Quantity: 10PCS
Price: USD2.5-USD3.2 PER PIECE
Packaging Details: Carton Box / Wooden Box
Delivery Time: 2-5 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability: 100000 PCS PER MONTH
Product Name: Stud Type Cam Follower KR10 CF3 Material: Bearing Steel GCr15
Outer Race Surface: Cylindrical Package: Each In Plastic Bag + Carton Box
Warranty: 6 Months Port: ShangHai / NingBo
OEM: Accept Delivery Time: 3-5 Days
High Light:

KR10 One Way Bearing

,

CF3 One Way Bearing

,

1 Directional Stud Cam Follower

                                       KR10 CF3 Stud Type Track Roller Bearings One Way Bearing

Features

 Featuring multiple compact structure, high rotating accuracy, large varieties, broad adaptability and easy installation, it can bear high radial load and certain shock load and is widely used in machine tool, metallurgical, textile and printing machinery, processing lines and etc.

Track Roller is a bearing unit composed of machined thick-wall outer ring, needle rollers or cylindrical roller sets, or cage guidance or full complement needle roller, inner ring or bolt and seal.



Technical Datas

Product name KR10 CF3 Stud Type Cam Follower Bearings
Model KR10 CF3
Material GCr15
Package Carton Box / Wooden box, pulley, etc
Payment terms TT. L/C, D/A,D/P,Western Union
Delivery time 2-4 days for the sample, 7 days for big order



Dimensions and Capacities
KR10 CF3 Stud Type Track Roller Bearings One Way Bearing 0

Model Weight
(gram)

d

mm

D

mm

C

mm

B1

mm

B2

mm

G



G1

mm

No Seal Reference model
CF 3 KR10 4.5 3 10 7 17 9 M3X0.5 5
CF 4 KR12 7.5 4 12 8 20 11 M4X0.7 6
CF 5 KR13 10.5 5 13 9 23 13 M5X0.8 7.5
CF 6 KR16 18.5 6 16 11 28 16 M6X1 8
CF 8 KR19 28.5 8 19 11 32 20 M8X1.25 10
CF10 KR22 45.0 10 22 12 36 23 M10X1.25 12
CF10-1 KR26 60.0 10 26 12 36 23 M10X1.25 12
CF12 KR30 95.0 12 30 14 40 25 M12X1.5 13
CF12-1 KR32 105.0 12 32 14 40 25 M12X1.5 13
CF16 KR35 170.0 16 35 18 52 32.5 M16X1.5 17
CF18 KR40 250.0 18 40 20 58 36.5 M18X1.5 19
CF20 KR47 460.0 20 47 24 66 40.5 M20X1.5 21
CF20-1 KR52 385.0 20 52 29 66 40.5 M20X1.5 21
CF24 KR62 815.0 24 62 29 80 49.5 M24X1.5 25
CF24-1 KR72 1,140 24 72 29 80 49.5 M24X1.5 25
CF30 KR80 1,870 30 80 35 100 63 M30X1.5 32
CF30-1 KR85 2.030 30 85 35 100 63 M30X1.5 32
CF30-2 KR90 2,220 30 90 35 100 63 M30X1.5 32


Pictures

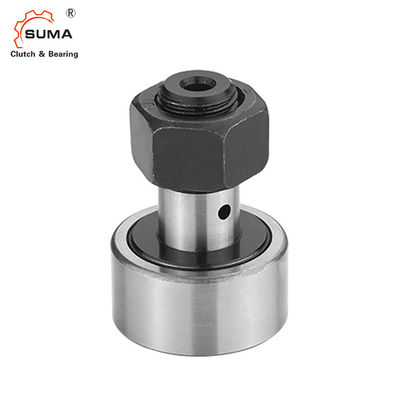

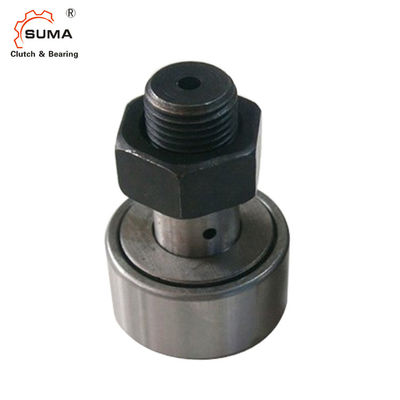

KR10 CF3 Stud Type Track Roller Bearings One Way Bearing 1

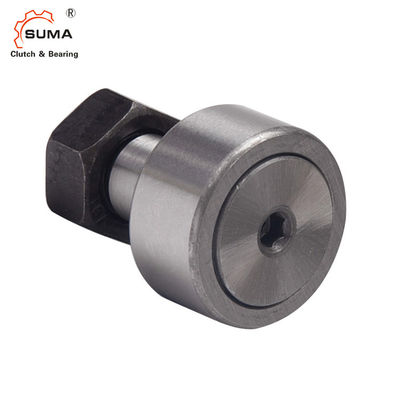

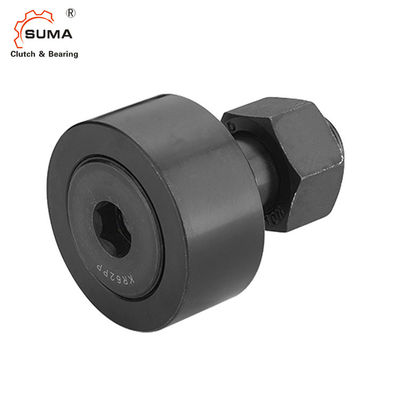

KR10 CF3 Stud Type Track Roller Bearings One Way Bearing 2
