| Place of Origin | CHINA |
| Brand Name | SUMA |
| Certification | ISO SGS |
| Model Number | GC-D35110 |

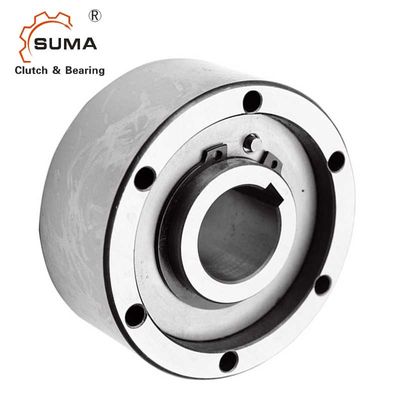

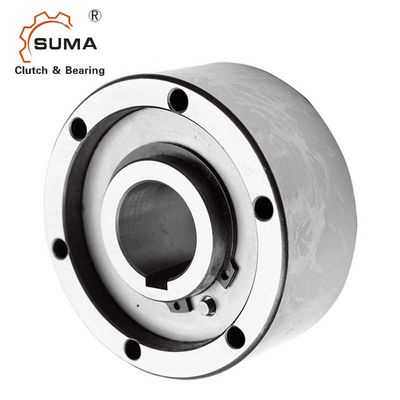

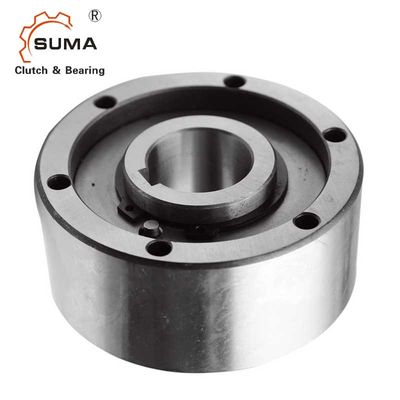

GC-D35110 Steel One Way 35MM Sprag Clutch Bearing
Features
Type GC-D is a roller type freewheel non-bearing supported. Earrings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation, Standard lubrication is oil.
Standard install is the outer race fitting in the rabbet and screwed to the bond. The innerrance is keyed to the shaft. The rabbet for install the outer race must be H7 tolerance, ensure a high axiality.
This series extensice used in machinery system if packing, pringtingm papermaking, weaving, chemical, medical, food and so on.
Dimensions and Capacities
| Type | Nominal Torque Nm |
Overrunning Limiting Speed r/min |
Dimension mm |
Weight Kg |
||||||
| Inner Race |
Outer Race |
d H7 |
D H7 |
F | L | n-d1 | bn×tn | |||
| GC-D1247 | 12 | 1550 | 3000 | 12 | 47 | 38 | 20 | 3-5.5 | 4×1.8 | 0.21 |
| GC-D1555 | 42 | 1150 | 2700 | 15 | 55 | 45 | 30 | 3-5.5 | 5×2.3 | 0.44 |
| GC-D2068 | 111 | 1000 | 1800 | 20 | 68 | 58 | 34 | 4-5.5 | 6×2.8 | 0.70 |
| GC-D2590 | 215 | 850 | 1300 | 25 | 90 | 78 | 37 | 6-5.5 | 8×3.3 | 1.30 |
| GC-D30100 | 380 | 750 | 1050 | 30 | 100 | 87 | 44 | 6-6.6 | 8×3.3 | 2.00 |
| GC-D35110 | 547 | 650 | 975 | 35 | 110 | 96 | 48 | 6-6.6 | 10×3.3 | 2.60 |
| GC-D40125 | 760 | 600 | 850 | 40 | 125 | 108 | 56 | 6-9.0 | 12×3.3 | 3.90 |
| GC-D45130 | 855 | 525 | 750 | 45 | 130 | 112 | 56 | 8-9.0 | 14×3.8 | 4.00 |
| GC-D50150 | 1634 | 475 | 650 | 50 | 150 | 132 | 63 | 8-9.0 | 14×3.8 | 6.00 |
| GC-D55160 | 1995 | 425 | 600 | 55 | 160 | 138 | 67 | 8-11 | 16×4.3 | 7.20 |
| GC-D60170 | 2660 | 400 | 550 | 60 | 170 | 150 | 78 | 10-11 | 18×4.4 | 9.20 |
| GC-D70190 | 4370 | 325 | 450 | 70 | 180 | 165 | 95 | 10-11 | 20×4.9 | 11.80 |
Mounting
