| Place of Origin | CHINA |
| Brand Name | SUMA |
| Certification | ISO SGS |
| Model Number | BWC-13239B |

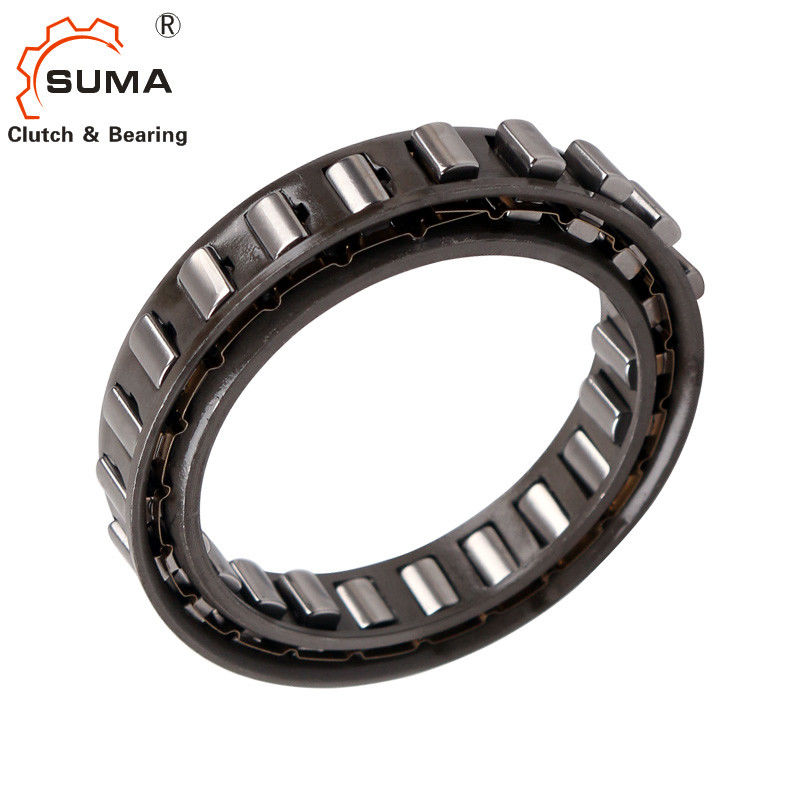

BWC-13239B GCr15 Centrifugal 711Nm Sprag Backstop Bearing
- All clutches are fitted with high precision heavy duty bearings for arduous duty applications.
- Clutch sizes 300 to 700 are fitted with ARO sprags to resist vibration and high transient torques and overloads.
- SO series clutches, oil lubricated suitable for overrunning, backstopping and medium duty indexing (up to 150 indexed/minute).
Technical Datas
| Product name | BWC-13239B Centrifugal Backstop Clutch |
| Model | BWC |
| Material | GCr15 |
| Package | Carton Box / Wooden box, pulley, etc |
| Payment terms | TT. L/C, D/A,D/P,Western Union |
| Delivery time | 2-4 days for the sample, 7 days for big order |
Dimension and Capacity
| Type | Inside shaft Diameter | Outside Shaft Diameter | Maximum Width | Rated Drag Torque | ||
| Di | Sprag Space | de | Sprag Space | B | N.m (kgf-m) | |
| X-133818T | 20.345 | +0.008 - 0.005 | 37.008 |
+0.008 -0.005 |
10.0 | 49 (5.0) |
| X-134939 | 22.225 | - | 38.887 | ±0.013 | 10.0 | 75 (7.6) |
|
BWC-13219A BW-13252 |
27.762 | - | 44.425 | - |
13.5 19.1 |
139 (14.2) 233 (23.8) |
| X-135052 | 31.881 | - | 48.548 | - | 13.5 | 154 (15.7) |
| X-135014 X-133399 | 37.317 | - | 53.980 | - |
12.0 15.9 |
185 (18.9) 309 (31.5) |
|
BW-13161 BWC-13230 |
38.092 | - | 54.750 | - |
13.5 15.9 |
251 (25.6) 323 (33.0) |
| X-135005 | 38.568 | - | 55.207 | - | 20.5 | 422 (43.0) |
| X-133400 | 40.485 | 一 | 57.150 | - | 22.3 | 534 (54.5) |
| BW-13244 X-135067 | 41.275 | 一 | 57.937 | - |
13.5 17.4 |
212 (21.6) 343 (35.0) |
| X-135041 | 44.450 | - | 61.112 | 一 | 13.5 | 226 (23.0) |
| X-135349 | 47.325 | - | 63.987 | - | 13.5 | 343 (35.0) |
| X-135036 | 47.408 | - | 64.075 | - | 22.3 | 667 (68.0) |
| X-134398 | 49.720 | - | 66.383 | - | 19.1 | 667 (68.0) |
|
Type d |
Iinside Diameter
|
Outside Diameter
|
Number of sprags |
Direction | Designation | Auxitiary Parts |
Weight
|
|
| (g) | ||||||||
| X-133818T | 15.8 | 47.5 | 10 | D | C | 1 | T | 30 |
| X-134939 | 17.2 | 50.1 | 12 | D | C | 1 | T | 35 |
| BWC-13219A | 21.5 | 56.9 | 14 | E | cc | 1 | T | 60 |
| BW-13252 | E | c | 1 | T | 90 | |||
| X-135052 | 24.6 | 62.0 | 16 | D | c | 1 | CL | 65 |
| X-135014 | 18 | E | c | 1 | CL | 65 | ||
| X-133399 | 28.9 | 69.1 | 18 | E | c | 1 | 90 | |
| BW-13161 | E | c | 1 | 75 | ||||
| BWC-13230 | 29.5 | 70.1 | 18 | D | cc | 1 | T.ST | 90 |
| X-135005 | 30.9 | 70.7 | 18 | D | c | 1 | CL.ST | 110 |
| X-133400 | 32.4 | 71.5 | 18 | E | c | 1 | 135 | |
| BW-13244 | 14 | D | c | 1 | CL.ST | 75 | ||
| X-135067 | 33.0 | 72.5 | 18 | D | c | 1 | T | 105 |
| X-135041 | 35.5 | 76.4 | 20 | E | c | EB.CL | 100 | |
| X-135349 | 37.9 | 80.0 | 22 | D | c | 1 | 90 | |
| X-135036 | 37.9 | 80.1 | 22 | E | c | 1 | CL.ST | 150 |
| X-134398 | 39.7 | 83.0 | 22 | D | c | 1 | CL.ST | 135 |
| Type | Inside shaft Diameter | Outside Shaft Diameter | Maximum Width | Rated Drag Torque | ||
| Di | Sprag Space | De | Sprag Space | B | N.M (kgf.m) | |
| x-135006 | 54.572 | +0.008-0.005 | 71.211 | ±0.013 | 20.5 | 799 (81.5) |
| BW-13231 |
54.765 |
— |
71.427 |
— |
13.5 | 402 (41.0) |
| BW-13214 | 15.9 | 363 (37.0) | ||||
| BW-13167 | 15.9 | 569 (58.0) | ||||
| BW-13209 |
57.760 |
— |
74.427 |
— |
13.5 | 554 (56.5) |
| BWC-13239B | 15.9 | 711 (72.5) | ||||
| BW-13238 | 21.0 | 1050 (107) | ||||
| X-133401 | 59.538 | — | 76.200 | — | 25.4 | 1350 (138) |
| BW-13243 |
72.217 |
— |
88.882 |
—
|
13.5 | 637 (65.0) |
| BWC-13168 | 21.0 | 1510 (154) | ||||
| BWC-13229 | 21.6 | 1325 (135) | ||||
| BW-13255 | 26.7 | 1920 (196) | ||||
| X-133614C | 83.596 | ±0.013 | 102.555 | — | 25.4 | 3040 (310) |
| X-133402 | 85.776 | — | 104.775 | — | 25.4 | 3090 (315) |
| BWC-13251 |
103.231 |
— |
119.944 |
— |
15.4 | 789 (80.5) |
| BWC-13261 | 15.4 | 1580 (161) | ||||
| X-133639 | 103.231 | — | 122.230 | — | 25.4 | 4410 (450) |
| X-133403 | 123.881 | — | 142.880 | — | 25.4 | 5740 (585) |
|
Type d |
Iinside Diameter D |
Outside Diameter D |
Number of sprags | Direction | Designation | Auxitiary Parts |
Weight (g) |
|
| X-135006 | 43.6 | 89.1 | 24 | D | C | 1 | CL.ST | 60 |
| BW -13231 | 20 | D | C | 1 | T.ST | 95 | ||
| BW-13214 | 43.8 | 89.3 | 14 | D | c | 1 | T.ST | 105 |
| BW-13167 | 22 | E | c | 1 | 120 | |||
| BW-13209 | 26 | D | c | 1 | T.ST | 105 | ||
| BWC-13239B | 46.2 | 93.1 | 26 | D | cc | 1 | CL.ST | 125 |
| BW-13238 | 26 | E | c | 1 | 175 | |||
| X-133401 | 47.6 | 95.3 | 26 | E | c | 1 | 220 | |
| BW -13243 | 24 | D | c | 1 | CL.ST | 120 | ||
|
BWC-13168 BWC-13229 |
57.7 | 111 |
30 30 |
E E |
cc cc |
1 | EB |
210 190 |
| BW -13255 | 30 | D | c | 1 | CL.ST | 255 | ||
| •X-133614C | 66.7 | 128 | 34 | E | c | 1 | CL. | 350 |
| X-133402 | 68.6 | 131 | 34 | E | c | 1 | 350 | |
| BWC-13251 BWC-13261 | 82.5 | 150 |
18 36 |
D D |
cc cc |
1 |
CL.ST CL.ST |
180 200 |
| X-133639 | 82.5 | 153 | 40 | E | c | 1 | CL.ST | 410 |
| X-133403 | 99.1 | 179 | 44 | E | c | 1 | 480 |
