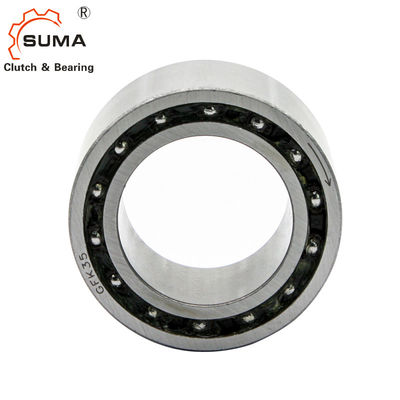

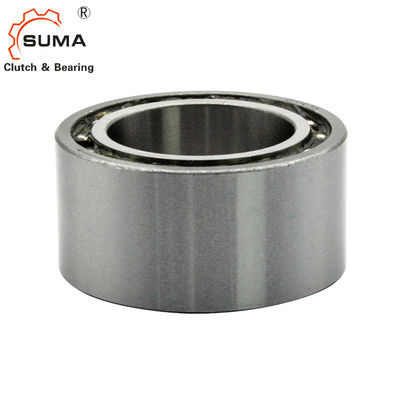

GFK35 FGK 35 GCr15 4600 RPM Freewheel Sprag Cam Clutch

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: GFK35 FGK35
Minimum Order Quantity: 1
Price: USD35-USD40 PER PIECE
Packaging Details: Carton Box
Delivery Time: 10-15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability: 1000PCS Per Month
Product Name: Sprag Clutch Bearing GFK35 FGK35 Material: GCr15 Bearing Steel
Torque Capacity: 204Nm Rotation Speed: 4600RPM
Unit Weight: 0.2Kg Warranty: 1 Year
Size: 35*55*27mm OEM: Accept
High Light:

GFK35 Cam Clutch

,

Sprag Cam Clutch

,

Sprag Cam Clutch Bearing

             GFK35 FGK 35 GCr15 4600 RPM Freewheel Sprag Cam Clutch

Features

GFK20 Overrunning Clutch Can be used as :

1.overrunning clutch

2.backstop clutch

3.indexing clutch

Technical Datas

Item GFK35 overrunning clutch
Brand SUMA or OEM
Precision P6
Type Sprag
Type of support bearing support
Bore Dia. (mm) 35
Torque (Nm) 204
Inner race overrunning speed (min-1) 4600
Outer race overrunning speed (min-1) 3200
Weight(kgs) 0.2

Dimensions and Capacities



Type Size



TKN1)
Overrunningspeeds

Bearing

series



Loads

Rollers

dyn.

Balls

dyn.

Rollers

stat.

Balls

stat.






GFK
d n imax2) n amax3) C C C0 C0 D L r
[mm] [Nm] [min-1] [min-1] [N] [N] [N] [N] [mm] [mm] [mm] [kg]
20 51 5500 4000 5904 5600 4400 2900 2750 37 23 0.5 0.09
25 65 5300 3800 5905 6300 5300 3450 3350 42 23 0.5 0.11
30 95 5000 3500 5906 7700 5500 4600 3650 47 23 0.5 0.13
35 204 4600 3200 5907 8200 8500 5200 5700 55 27 1 0.2
40 315 4200 3000 5908 8650 9300 5750 6700 62 30 1 0.3
45 370 3800 2500 5909 9200 9700 6350 7300 68 30 1 0.34
50 460 3400 2200 5910 9650 10000 6950 7800 72 30 1 0.36


NOTES

1) Tmax = 2 × TKN
» Refer to Selection page 10 to 13

2) Inner race overruns

3) Outer race overruns

» Refer to mounting and maintenance instructions page 16 to 19

Mounting and Coupling

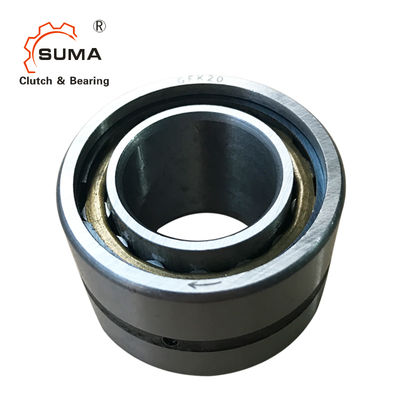

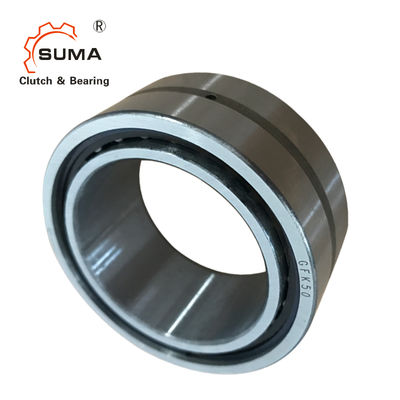

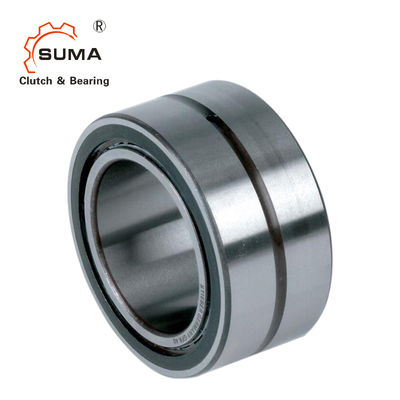

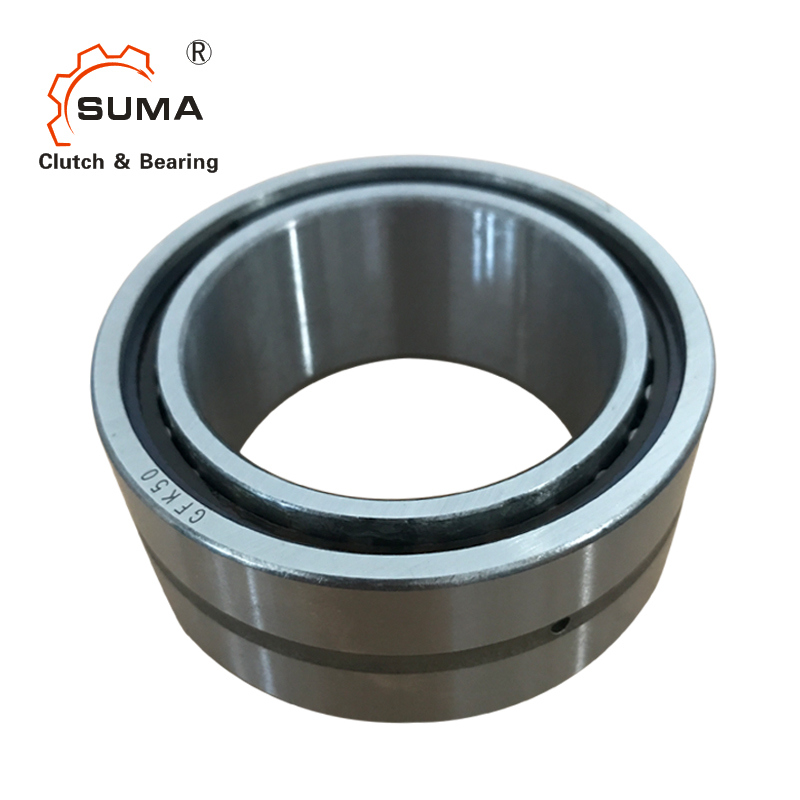

Pictures
 GFK35 FGK 35 GCr15 4600 RPM Freewheel Sprag Cam Clutch 2

GFK35 FGK 35 GCr15 4600 RPM Freewheel Sprag Cam Clutch 3
GFK35 FGK 35 GCr15 4600 RPM Freewheel Sprag Cam Clutch 4
