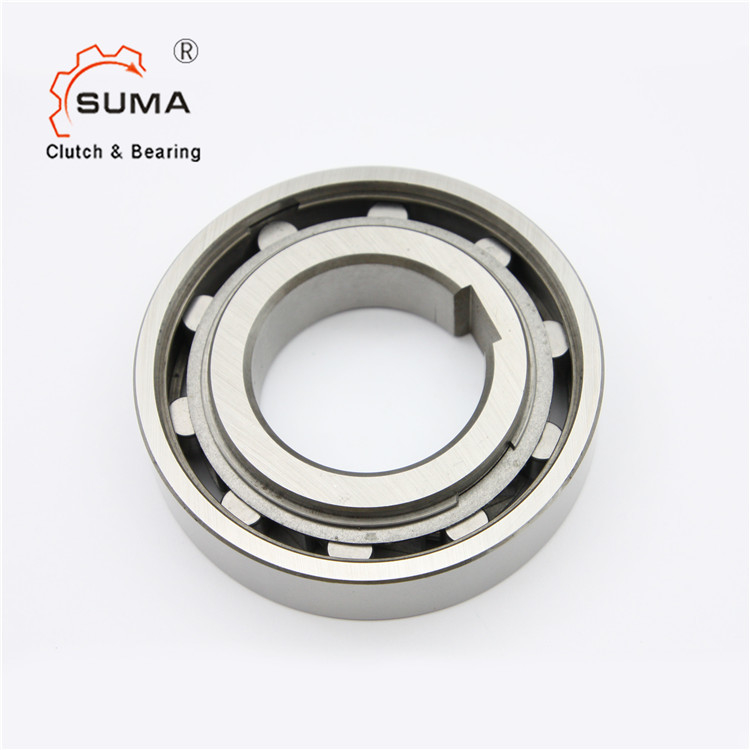

US Series US55 AS55 Backstop Clutch Freewheel Roller Bearing
Features
The US Series freewheels are not self-centering. It is therefore required to place one or two bearings next to the freewheel so that the outer race can rotate centrally to the inner race .
US freewheels have ball bearings with the same dimensions as the 62.. Series.
The torque forces are transmitted from the shaft to the inner race by means of a key and from the outer race to the seating by means of an interference fit on the r6 tolerance of the external diameter.
Shaft tolerance must be either h6 or j7; the tolerances for the seating must be either H7 or J6.
Before being put onto service, the freewheels must be lubricated with suitable lubricants following the
instructions given on page 12. Oil lubrication is essential when a high number of rotations in neutral is reached.
Dimensions and Capacities
| Type | Size |
TKN1) |
Overrunning speeds |
Weight
|
Drag torque | |||||||
| US (NSS) | dH7 | nimax2) | namax3) | Dr6 | D5 | L | s | e | f | TR | ||
| [mm] | [Nm] | [min-1] | [min-1] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | [Ncm] | |
| 6 | 2.1 | 5000 | 7500 | 19 | 15.8 | 6 | 0.3 | 0.6 | 0.3 | 0.01 | 0.18 | |
| 8 | 3.8 | 4300 | 6500 | 24 | 20 | 8 | 1.3 | 0.6 | 0.6 | 0.02 | 0.24 | |
| 10 | 6.8 | 3500 | 5200 | 30 | 25.9 | 9 | 1.3 | 0.6 | 0.6 | 0.03 | 0.36 | |
| 12 | 13 | 3200 | 4800 | 32 | 28 | 10 | 1.3 | 0.6 | 0.6 | 0.04 | 0.48 | |
| 15 | 14 | 2800 | 4300 | 35 | 31 | 11 | 1.4 | 0.6 | 0.6 | 0.05 | 0.7 | |
| 20 | 40 | 2200 | 3300 | 47 | 40 | 14 | 2.4 | 0.8 | 0.8 | 0.12 | 1.4 | |
| 25 | 56 | 1900 | 2900 | 52 | 45.9 | 15 | 2.4 | 0.8 | 0.8 | 0.14 | 2.4 | |
| 30 | 90 | 1600 | 2400 | 62 | 55 | 16 | 2.4 | 0.8 | 1 | 0.22 | 7.8 | |
| 35 | 143 | 1300 | 2000 | 72 | 64 | 17 | 2.5 | 0.8 | 1 | 0.31 | 9 | |
| 40 | 185 | 1200 | 1800 | 80 | 72 | 18 | 2.5 | 0.8 | 1 | 0.39 | 10 | |
| 45 | 218 | 1000 | 1600 | 85 | 77 | 19 | 2.5 | 1.2 | 1 | 0.44 | 11 | |
| 50 | 230 | 950 | 1500 | 90 | 82 | 20 | 2.5 | 1.2 | 1 | 0.49 | 13 | |
| 55 | 308 | 800 | 1300 | 100 | 90 | 21 | 2.5 | 1.2 | 1 | 0.66 | 14 | |
| 60 | 508 | 700 | 1100 | 110 | 100 | 22 | 2.5 | 1.2 | 1.5 | 0.81 | 26 | |
| 80 | 1063 | 600 | 900 | 140 | 128 | 26 | 2.5 | 1.2 | 1.5 | 1.41 | 58 | |
NOTES:
AS6 without keyway. ØD = -0-0,009
AS8-12 keyway to DIN 6885.1.
Other sizes to DIN 6885.3
1) T max = 2 × T KN
2) Inner race overruns
3) Outer race overruns
Mounting dimensions are identical to ball bearings series 62
Mounting Example
