AL15 ALP15 H7 Tolerance Freewheel Roller Clutch Bearing

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: AL15 ALP15
Minimum Order Quantity: 1
Price: USD50-USD130 PER PIECE
Packaging Details: Carton Box
Delivery Time: 7-10 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability: 1000PCS Per Month
Product Name: Roller Clutch Bearing AL15 ALP15 Material: GCr15 Bearing Steel
Unit Weight: 0.8Kg Size: 15*68*52mm
Warranty: 1 Year Overrunning Speed: 6500RPM
OEM: Accept Package: Carton Box Or Wooden Case
High Light:

AL15 Roller Clutch Bearing

,

H7 Tolerance Roller Clutch Bearing

,

AL15 One Way Roller Bearing

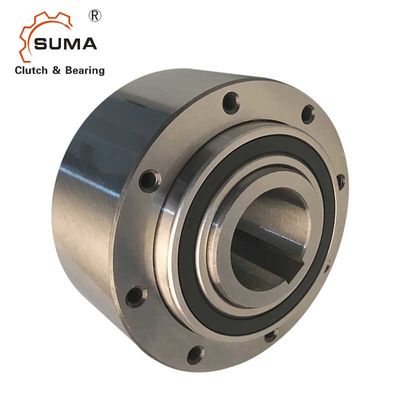

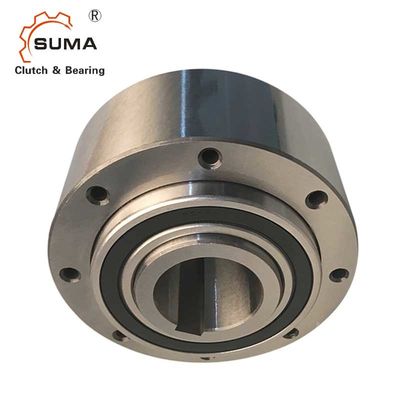

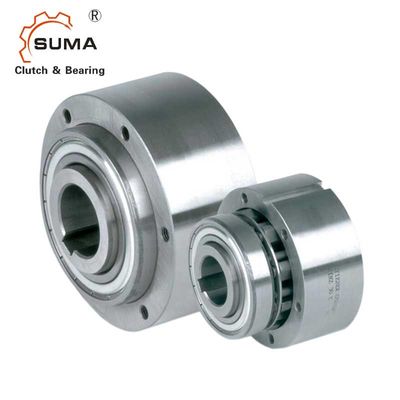

               AL15 ALP15 H7 Tolerance Freewheel Roller Clutch Bearing

Features

  Types AL, ALP are roller type freewheels. These units are part of the modular system. They are bearing supported, using two 160.. series bearings, and require oil lubrication. These units may be used in designs providing oil lubrication and sealing as on the example overleaf.
  The bearings must not be axially stressed. Typically, types AL, ALP are used with standard covers that are designed to transmit torque, and provide oil lubrication and sealing. Usually these covers are used in pairs according to combinations shown on the following pages.
  The outer race of the AL model is plain to receive and center any component bored to H7 tolerance. Torque is transmitted by bolts through the cover plate in this case.
Types AL, ALP are identical except that type ALP has a keyway on the outside diameter to transmit the torque.
  Two paper seals are delivered with each unit to be placed between the outer race and cover plates.

Dimensions and Capacities



Type Size Overrunning speed Number Weight Drag torque
AL
ALP
dH7 nimax2) namax3) Dh7 D2 z L 1 L4) B t1   TR
[mm] [min-1] [min-1] [mm] [mm]   [mm] [mm] [mm] [mm] [kg] [Ncm]
12 4000 7200 62 20 3 42 20.3 27 2.4 0.5 3.4
15 3600 6500 68 25 3 52 30.3 34.1 2.9 0.8 4.1
20 2700 5600 75 30 4 57 34.3 39.1 3.5 1 8
25 2100 4500 90 40 6 60 37.3 42.1 4.1 1.5 14
30 1700 4100 100 45 6 68 44.3 49.1 4.1 2.2 23
35 1550 3800 110 50 6 74 48.3 54.1 4.7 3 60
40 1150 3400 125 55 6 86 56.3 62.1 4.9 4.6 72
45 1000 3200 130 60 8 86 56.3 62.1 5.5 4.7 140
50 800 2800 150 70 8 92 63.3 69.1 5.5 7.2 180
55 750 2650 160 75 8 104 67 73.1 6.2 8.6 190
60 650 2450 170 80 10 114 78 84 6.8 10.5 240
70 550 2150 190 90 10 134 95 103 7.4 13.5 320
80 500 1900 210 105 10 144 100 108 8.5 18.2 330
90 450 1700 230 120 10 158 115 125 8.7 28.5 650
100 350 1450 270 140 10 182 120 131 9.9 42.5 830
120 250 1250 310 160 12 202 140 152 11.1 65 1080
150 200 980 400 200 12 246 180 196 12.3 138 1240
200 150 750 520 260 18 326 240 265 15 315 3800
250 120 620 610 320 20 396 300 330 15 512 6100
ALM 25 2100 2800 90 40 6 60 37.3 42.1 4.1 1.7 22
30 1700 2500 100 45 6 68 44.3 49.1 4.1 2.5 37
35 1550 2400 110 50 6 74 48.3 54.1 4.7 3.2 66

AL15 ALP15 H7 Tolerance Freewheel Roller Clutch Bearing 0

NOTES

1) T max = 2 × T KN
» Refer to Selection page 10 to 13
2) Inner race overruns, values without lip seals
3) Outer race overruns
Keyway to DIN 6885.1
4) The dimension L includes up to size 50 the each
0.25 mm thick paper seals to be located on both faces
» Refer to mounting and maintenance instructions
page 16 to 19
