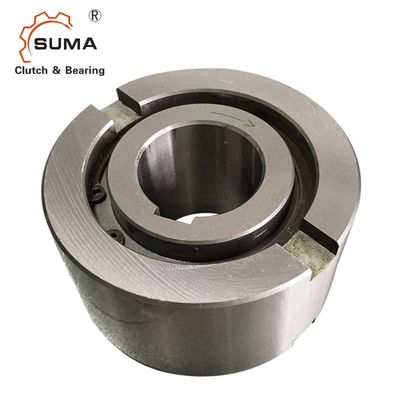

AE35 35*100*48mm One Way Holdback Freewheel Clutch Bearings

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: AE35
Minimum Order Quantity: 1
Price: USD56-USD70 PER PIECE
Packaging Details: Carton Box
Delivery Time: 3-5 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability: 1000PCS Per Month
Product Name: One Way Clutch Bearing AE35 Material: GCr15 Bearing Steel
Torque Capacity: 720Nm Rotation Speed: 2100RPM
Unit Weight: 2Kg Warranty: 1 Year
Size: 30*100*48mm OEM: Accept
High Light:

Freewheel Clutch Bearings

,

One Way Holdback Clutch Bearings

,

GCr15 Material Roller Clutch Bearing

              AE35 35*100*48mm One Way Holdback Freewheel Clutch Bearings

Features



Name: Roller type one way clutch bearings
Model Numbe AE35(35mmx100mmx48mm)
Dimension: 35mmx100mmx48mm
Material: Chrome Steel /GCr15
Shields: Open type /Shield
Packing: Individual packing/ Industrial Packing
Brand: SUMA
Payment term: T/T, L/C; West Union, Paypal
Market: Europe 70%; Asia 20%; Other Market 10%
Origin: Jiangsu Province
Descriptions:

Type AE is a roller type freewheel non-bearing supported. Bearings are required to support

axial and radial loads. Lubrication and sealing must also be provided by the installation.

Mechanical properties Nominal outside diameter is a standard ball bearing dimension.The inner race is keyed to the shaft. The outer race has a h6 tolerance and should be fitted in a housing with a K7 tolerance. Additional side notches provide for positive torque transmission. If the housing tolerance is to R6, use of the notches is not necessary, but the housing must be strong enough to not expand after assembly. This design can accept an axial misalignment of inner and outer race of ± S/2.
Application Fields: automobile; motorcycle ;textile machinery; printing machinery ;home appliance; construction equipment; agricultural machinery; plastic machinery; speed reducer; electrical roller ;medical equipment ;fitness equipment; food machinery

Technical Datas


AE35 35*100*48mm One Way Holdback Freewheel Clutch Bearings 0

Dimensions and Capacities

Type Size   Overrunning speeds   Weight Drag torque











AE



dH7

(mm)

TKN1

(Nm )

Nimax2)

(min-1)

Namax3)

(min-1)

Dh6

(mm)

D5

(mm)

D6

(mm)

L

(mm)

s

(mm)

f

(mm)

e

(mm)

b

(mm)

t

(mm)



(kg)

TR



(Ncm)

12 17 3100 6000 37 28 20 20 4.5 0.5 0.8 6 3 0.11 0.7
15 55 2300 5400 47 37 26 30 4.5 0.8 1.2 7 3.5 0.30 3.5
20 146 2000 3600 62 50 35 34 5.5 0.8 1.2 8 3.5 0.55 8.4
25 285 1700 2600 80 68 45 37 6.5 1 1.8 9 4 0.98 14
30 500 1500 2100 90 75 50 44 6.2 1 1.8 12 5 1.50 23
35 720 1300 1950 100 80 55 48 3.8 1 1.8 13 6 2.00 60
40 1030 1200 1700 110 90 60 56 3.8 1.5 1.8 15 7 2.80 72
45 1125 1050 1600 120 95 65 56 3.8 1.5 2.6 16 7 3.30 140
50 2150 950 1300 130 110 75 63 5.8 1.5 2.6 17 8 4.20 180
55 2675 850 1200 140 115 82 67 3.8 2 2.6 18 9 5.20 190
60 3500 800 1100 150 125 90 78 7.6 2 2.6 18 9 6.80 240
70 5813 650 900 170 140 100 95 7.6 2.5 2.6 20 9 10.5 320



Mounting and Coupling

AE35 35*100*48mm One Way Holdback Freewheel Clutch Bearings 1

Pictures

AE35 35*100*48mm One Way Holdback Freewheel Clutch Bearings 2

AE35 35*100*48mm One Way Holdback Freewheel Clutch Bearings 3AE35 35*100*48mm One Way Holdback Freewheel Clutch Bearings 4
